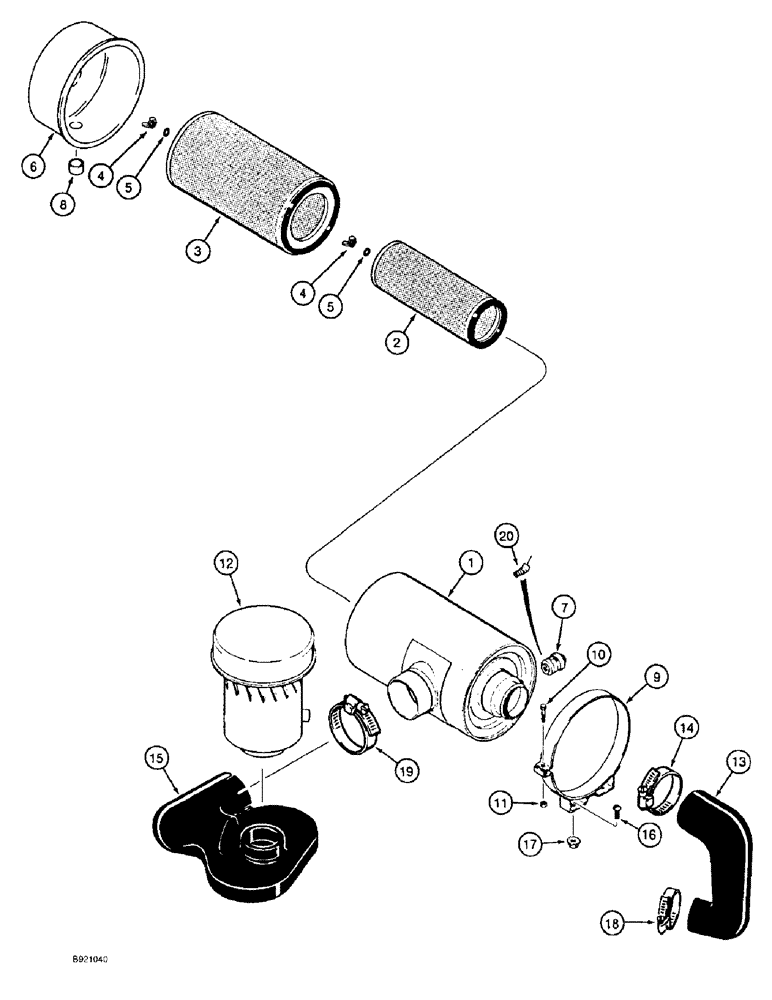

Запчасти Case IH 1660 (2-19A) - AIR CLEANER, MODELS WITH CROSS FLOW CLEANING SYSTEM (01) - ENGINE

1547900C2

AIR CLEANER

CLEANER ASSEMBLY - air, engine

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner, order cleaner assembly, Includes: Ref. 2 - 6

1шт.

2

A171256

AIR FILTER

ELEMENT - secondary

1шт.

3

A171255

AIR FILTER

ELEMENT - primary

1шт.

4

1547947C1

WING NUT

NUT - wing, element retainer

2шт.

5

1547948C1

SEALING WASHER

WASHER - retainer nut

2шт.

6

1547910C1

COVER

- air cleaner, includes wing nut

1шт.

7

1541610C1

INDICATOR

- air restriction

1шт.

8

353-174

PLUG

- cover, aspiration outlet

1шт.

9

A56089

SUPPORT

BAND - air cleaner mounting, induction system

2шт.

10

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Air induction system Hex, 5/16"-18 x 2", G5

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Air induction system

2шт.

12

1275728C3

PRECLEANER

- air induction, includes clamp and hardware, system

1шт.

13

118094A1

INTAKE AIR HOSE,102.00 mm ID, 152.00 mm ID x 326.00 mm

HOSE - turbo inlet (Replaces hose 1541863C2), air induction system

1шт.

14

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Air cleaner outlet, Induction system 5.25/6.125 HD Worm, W/liner

1шт.

15

1541943C1

TUBE

PLENUM - air cleaner inlet, induction system

1шт.

17

231-5146

FLANGE NUT,3/8"-16

Air induction system Flg, USR, 3/8"-16

4шт.

18

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Turbocharger Inlet, Air Induction System 4.25/5.125 HD Worm, W/liner

1шт.

19

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Plenum to air cleaner inlet, Induction system 6.25/7.125 HD Worm, W/liner

1шт.

20

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

- 45 degree, 1/8 inch PT x female PT (Replaces elbow 9409927), air induction system

1шт.

16

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch (Replaces bolt 163860C1), air induction system

4шт.
