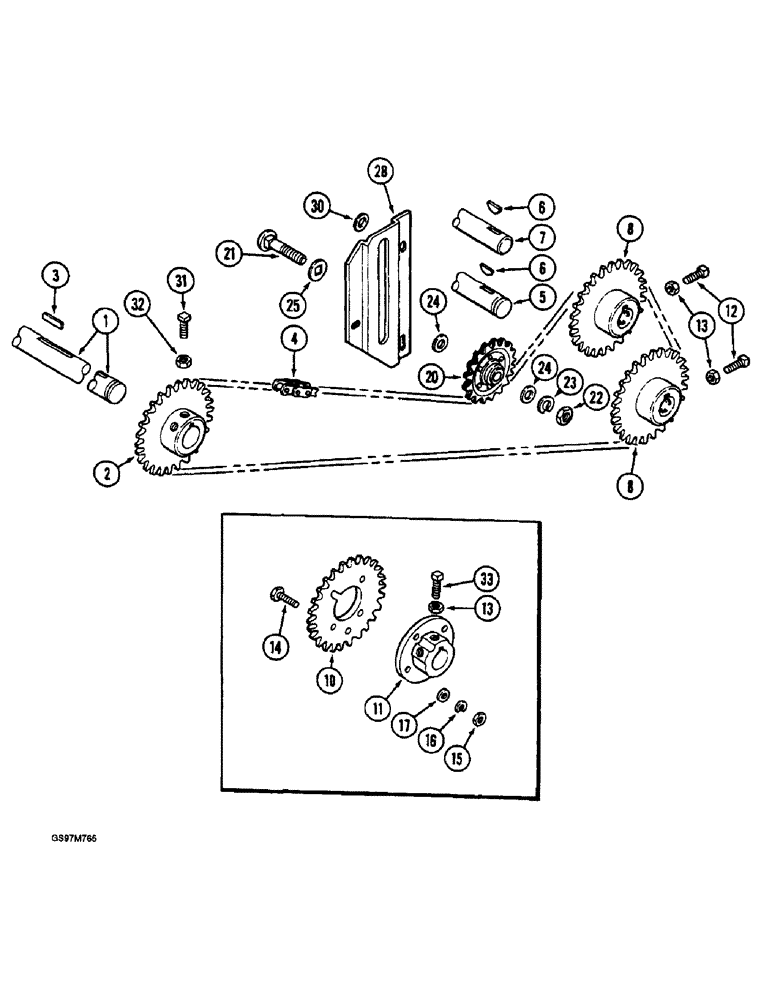

Запчасти Case IH 1660 (9D-30) - TAILINGS ELEVATOR, DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

1321347C1

SHAFT

- elevator drive, jackshaft

1шт.

2

192139C2

SPROCKET

- drive, 25 tooth

1шт.

3

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

4

REF

INSTRUCTION

CHAIN tailings drive

1шт.

Use 155 links of No. 50 chain and (2) connecting links 1310D, (1) offset link, 1315D and (1) roller link, 1309D.

1шт.

5

193225C1

AUGER

- delivery, See Figure 9D-20

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

- head, elevator

1шт.

8

1345472C1

SPROCKET

- chain drive, 27 tooth, P.I.N. JJC0103067 and after

2шт.

8

1979808C1

SPROCKET ASSY.

SPROCKET - chain drive, P.I.N. JJC0041541 through JJC0103066, no longer available, order sprocket 1345472C1

2шт.

10

188188C1

SPROCKET ASSY.

SPROCKET - drive, 27 tooth, prior to P.I.N. JJC0041541

2шт.

11

1302217C1

HUB

- sprocket, prior to P.I.N. JJC0041542

2шт.

12

86-13816

SET SCREW,Sq Hd, 3/8" - 24 x 1"

SCREW - square head set, 3/8 NC x 1 inch, used with 1979808C1 sprocket

4шт.

12

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, square head, 3/8 NC x 1 inch, cup point, used with 1345472C1 sprocket

2шт.

13

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF (Used with 1979808C1 sprocket)

4шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC, used with 1345472C1 sprocket

2шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, if used

8шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, If used

8шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

8шт.

17

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch, if used

8шт.

20

631905R91

SPROCKET

- idler, 17 tooth

1шт.

21

411-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT - carriage, 5/8 NC x 2-1/2 inch, grade 2

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

25

498-81009

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

- square hole, 21/32 x 1-1/4 x 3/32 inch

2шт.

28

1302069C2

SUPPORT

BRACKET - support, sprocket

1шт.

30

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 3/16 inch

3шт.

31

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, square head, 3/8 NC x 1 inch, cup point

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

33

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - set, square head, 3/8 NC x 1-1/4 inch, cup point

2шт.
