Запчасти Case IH 1660 (9D-26) - TAILINGS ELEVATOR, HOUSING AND CONVEYOR (16) - GRAIN ELEVATORS & AUGERS

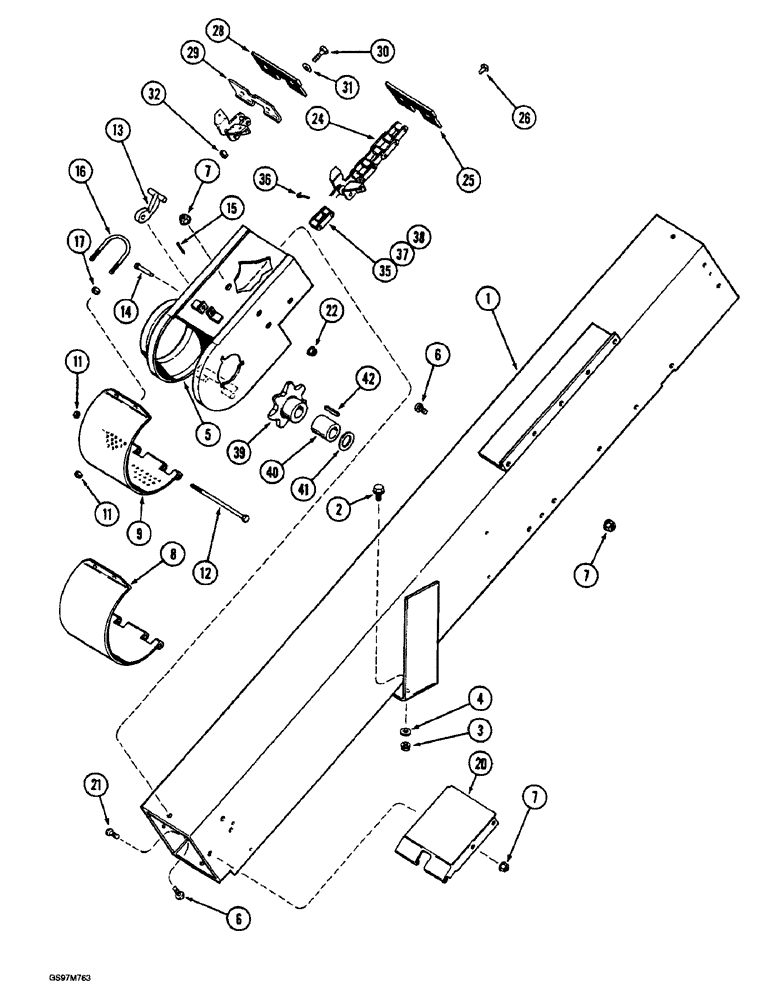

Схема запчастей Case IH 1660 - (9D-26) - TAILINGS ELEVATOR, HOUSING AND CONVEYOR (16) - GRAIN ELEVATORS & AUGERS
3
14
37
41
9
39
2
24
30
35
42
6
4
7
40
15
6
8
17
16
21
12
5
29
7
22
1
11
7
20
11
26
32
28
13
38
36
31
25

Артикул

Название

Примечание

Количество

1

191778C2

ELEVATOR TUBE,85.08" Length

HOUSING - elevator

1шт.

2

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

8шт.

5

191771C1

BOOT

- elevator

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

8шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

8

156910C1

DOOR

- boot, non-perforated

1шт.

9

174193C1

DOOR

- boot, perforated

1шт.

11

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

12

413-5104

BOLT,Hex, 5/16" - 18 x 6-1/2", Gr 5

- hex, 5/16 NC x 6-1/2 inch

1шт.

13

155909C1

LATCH

- door

1шт.

14

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT - door

1шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

20

191790C2

END

HINGE - bottom

1шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

24

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSEMBLY - elevator, Includes: Ref. 25 & 26 and flight assembly listed below

1шт.

1303123C91

ELEVATOR CHAIN

FLIGHT ASSEMBLY - rubber, Includes: Ref. 25 & 26

27шт.

25

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor, rubber

1шт.

26

185315C1

RIVET

- 3/8 x 5/8 inch

2шт.

1303124C92

RUBBER FLIGHT

FLIGHT ASSEMBLY - two piece, service only, does not include conveyer, Includes: Ref. 28 - 32

1шт.

28

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor, rubber

1шт.

29

1303125C1

STEEL FLIGHT

FLIGHT - conveyor, steel

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

32

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

35

241-15113

LINK,41.4mm Pitch

LINK - connecting, single pitch, No. C550, 1-5/8 inch pitch

1шт.

36

23442R1

PIN,2.36mm OD

- roller S Type, No. 550 chain

1шт.

37

241-18113

LINK,41.4mm Pitch

LINK - offset, single pitch, No. C550, 1-5/8 inch pitch

1шт.

38

241-12113

LINK,Chain, 41.4mm Pitch

LINK - roller, single pitch, No. C550, 1-5/8 inch pitch

1шт.

39

168683C1

SPROCKET

- drive, conveyor

1шт.

40

21696R1

SPACER,1" Pipe x 1 3/8"

- pipe, 1 ID x 1-3/8 inch

1шт.

41

495-81072

WASHER,1 1/32" x 1 3/4" x .030"

1шт.

42

Y24430

KEY,1/4" Sq x 1 1/2", Par

- square parallel, 1/4 x 1-1/2 inch

1шт.

Выбрано товаров: 37
