(2-18) - AIR CLEANER, MODELS WITHOUT CROSS FLOW CLEANING SYSTEM

Запчасти Case IH 1660 (2-18) - AIR CLEANER, MODELS WITHOUT CROSS FLOW CLEANING SYSTEM (01) - ENGINE

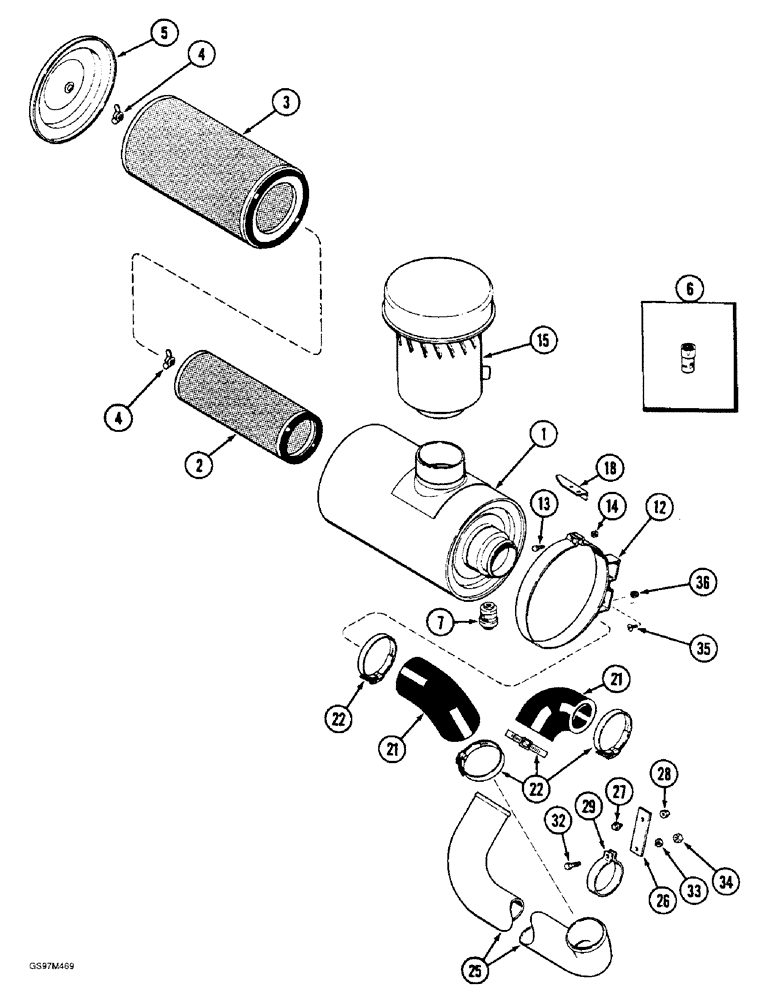

Схема запчастей Case IH 1660 - (2-18) - AIR CLEANER, MODELS WITHOUT CROSS FLOW CLEANING SYSTEM (01) - ENGINE
25
7
5
29
21
26
13
28
21
4
12
36
34
6
32
3
35
22
4
1
18
33
2
15
22
14
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1541611C1

AIR CLEANER

CLEANER ASSEMBLY - air, used with indicator 1541610C1, item 7, Includes: Ref. 1 - 5

1шт.

A184799

AIR CLEANER

CLEANER ASSEMBLY - air, shown, used with indicator 582214C1, item 6, no longer available, order cleaner assembly 1541611C1, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner, order cleaner assembly

1шт.

2

932390C1

AIR FILTER

ELEMENT - safety, secondary

1шт.

3

932391C2

AIR FILTER

ELEMENT - primary

1шт.

4

L35499

NUT

- wing, element

2шт.

5

A189038

COVER

- air cleaner

1шт.

6

582214C1

INDICATOR

- air restriction

1шт.

7

1541610C1

INDICATOR

- air restriction

1шт.

12

A56089

SUPPORT

BAND - air cleaner mounting, induction system

2шт.

13

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Air induction system Hex, 5/16"-18 x 2", G5

3шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Air induction system

3шт.

15

1275728C3

PRECLEANER

- air induction, system

1шт.

18

1970448C1

SUPPORT

- air cleaner, induction system

1шт.

21

218899R1

ELBOW

HOSE - elbow, air cleaner outlet and inlet, induction system

2шт.

22

146570C1

CLAMP

- hose, No. 72, Type F, air induction system

4шт.

25

1970445C1

AIR INTAKE TUBE

TUBE - outlet, outlet, air induction system

1шт.

26

187509C1

BAR

- header lift tubes, air induction system

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, air induction system

1шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, air induction system

1шт.

29

1970473C1

CLAMP

- inlet tube retaining, air induction system

1шт.

32

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, air induction system

1шт.

33

492-11038

LOCK WASHER,3/8"

air induction system 3/8"

1шт.

34

425-106

NUT,3/8"-16, Cl 5

Air induction system 3/8"-16, G5

1шт.

36

231-5146

FLANGE NUT,3/8"-16

Air induction system Flg, USR, 3/8"-16

4шт.

35

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch, air induction system

4шт.
