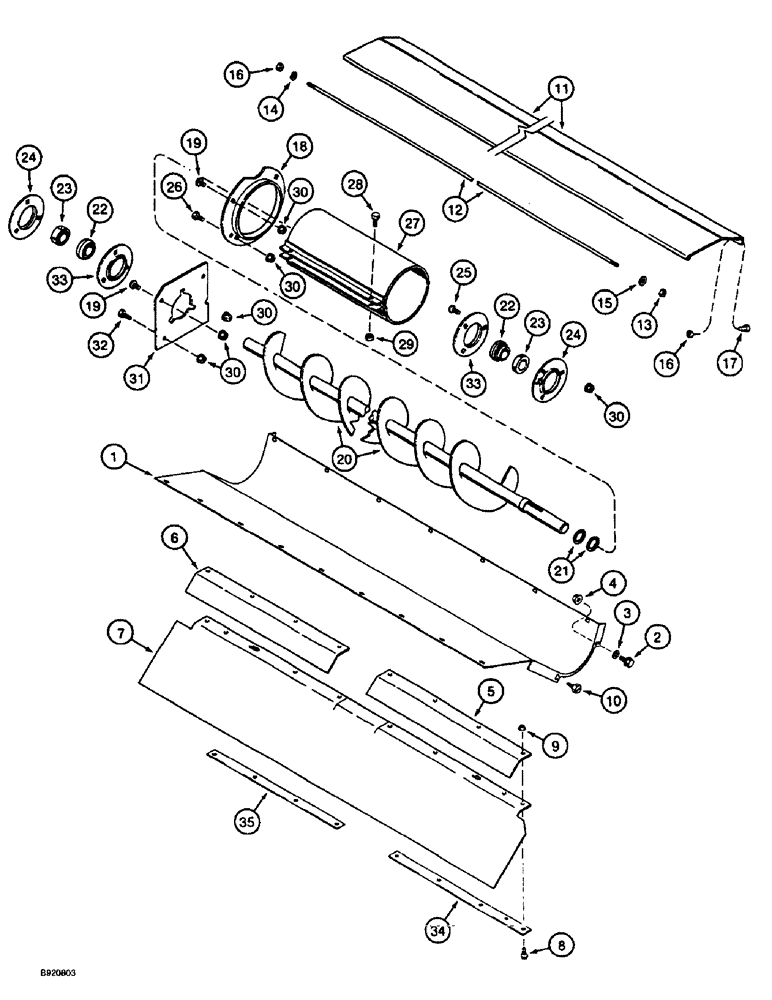

Запчасти Case IH 1660 (9D-25A) - TAILINGS AUGER TROUGH, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM (16) - GRAIN ELEVATORS & AUGERS

1

1346956C2

TROUGH

- auger

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4" (Replaces bolt 632227R1)

7шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

15шт.

5

1347436C2

ANGLE

RETAINER - chaffer seal rear, left-hand upper

1шт.

6

1347437C2

ANGLE

RETAINER - chaffer seal rear, right-hand upper

1шт.

7

1346999C1

RUBBER SEAL,3.05mm Thk

- rear cross chaffer

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

9

9413977

NUT

- hex, self-locking, 5/16 inch NC (Replaces nut 9412083)

8шт.

10

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

11

185195C1

DOOR

- cover, trough

1шт.

12

185198C1

ROD

- auger door

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

16

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

10шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

9шт.

18

160324C2

FLANGE

- mounting, auger cover

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- serrated slotted truss head, 5/16 NC x 1/2 inch (Replaces screw 632226R1)

5шт.

20

191734C1

AUGER

- tailings

1шт.

21

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

22

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

- auger

2шт.

23

455102R21

COLLAR

- locking, bearing, includes set screw

2шт.

24

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE - bearing

2шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch (Replaces bolt 632227R1)

6шт.

26

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

27

192693C1

CLAMP

- extension, non-perforated

1шт.

27

195075C1

SCREEN

- extension, perforated

1шт.

28

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch

2шт.

29

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

31

192357C2

BAR

PLATE - support, bearing

1шт.

32

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

33

937517R1

FLANGE

- bearing

2шт.

34

1338343C2

RETAINER

- chaffer seal rear, left-hand lower

1шт.

35

1338344C2

RETAINER

- chaffer seal rear, right-hand lower

1шт.
