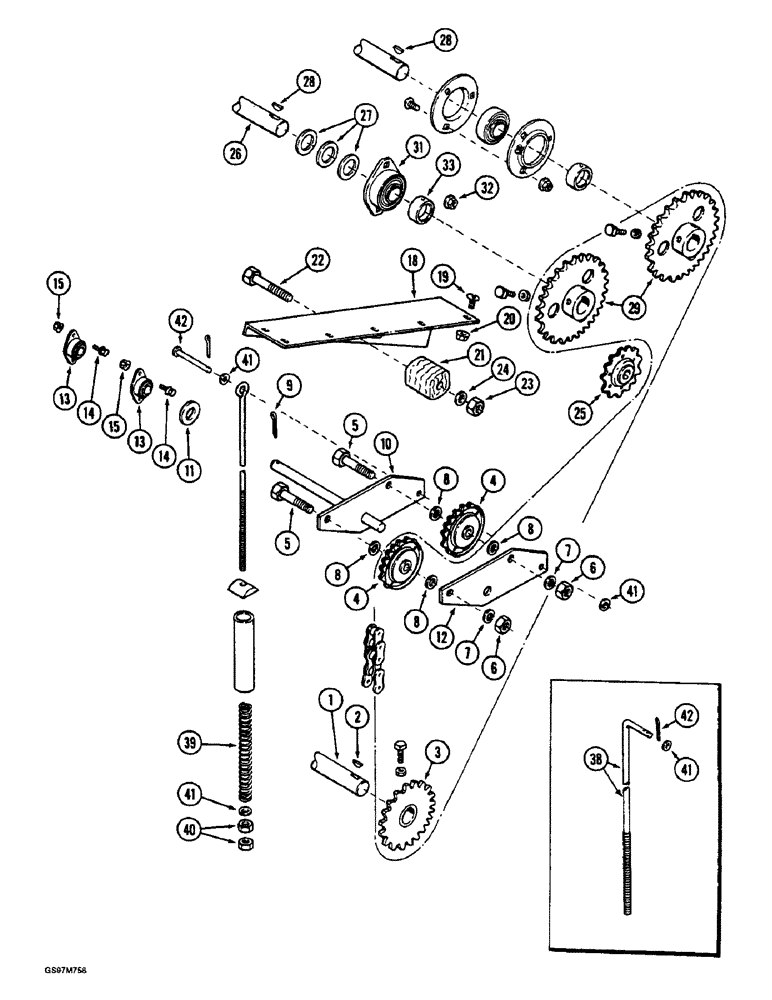

Запчасти Case IH 1660 (9D-16) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

1321347C1

SHAFT

- elevator drive

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

192139C2

SPROCKET

- drive, 25 tooth

2шт.

4

631905R91

SPROCKET

- idler, 17 tooth

2шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

10

1317671C1

PLATE

SUPPORT - pivot, prior to P.I.N. JJC0040293

1шт.

10

1345064C1

SUPPORT

- idler sprocket, P.I.N. JJC0040293 and after

1шт.

11

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

12

1317670C1

PLATE

BAR - tightener, prior to P.I.N. JJC0040293

1шт.

12

1345066C1

PLATE

- tightener support, P.I.N. JJC0040293 and after

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

BEARING - pivot

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

18

1317476C3

ANGLE BAR

STIFFENER - block

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

6шт.

21

582018R1

BLOCK

- tightener

1шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

23

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

24

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

1шт.

25

1319759C1

DRIVE SPROCKET

SPROCKET - idler, horizontal drive

1шт.

26

1317429C1

SHAFT

- headshaft sprocket

1шт.

27

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

29

1317412C1

SPROCKET

- headshaft, 32 tooth, W/ Hub

2шт.

2 Required for Horizontal Leveling Auger, 1 Required for Bubbler Auger

1шт.

29

1321039C1

SPROCKET

- driven, 29 tooth, Flat Sprocket

1шт.

1 Required for Bubbler Auger

1шт.

31

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - headshaft

1шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

557995R11

COLLAR

- bearing, with set screw, one used on inclined elevator

2шт.

38

1317666C2

ROD

- tightener, chain, prior to P.I.N. JJC0040293

1шт.

39

523677R1

SPRING

- tightener

1шт.

40

425-106

NUT,3/8"-16, Cl 5

1шт.

41

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

3шт.

42

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.
