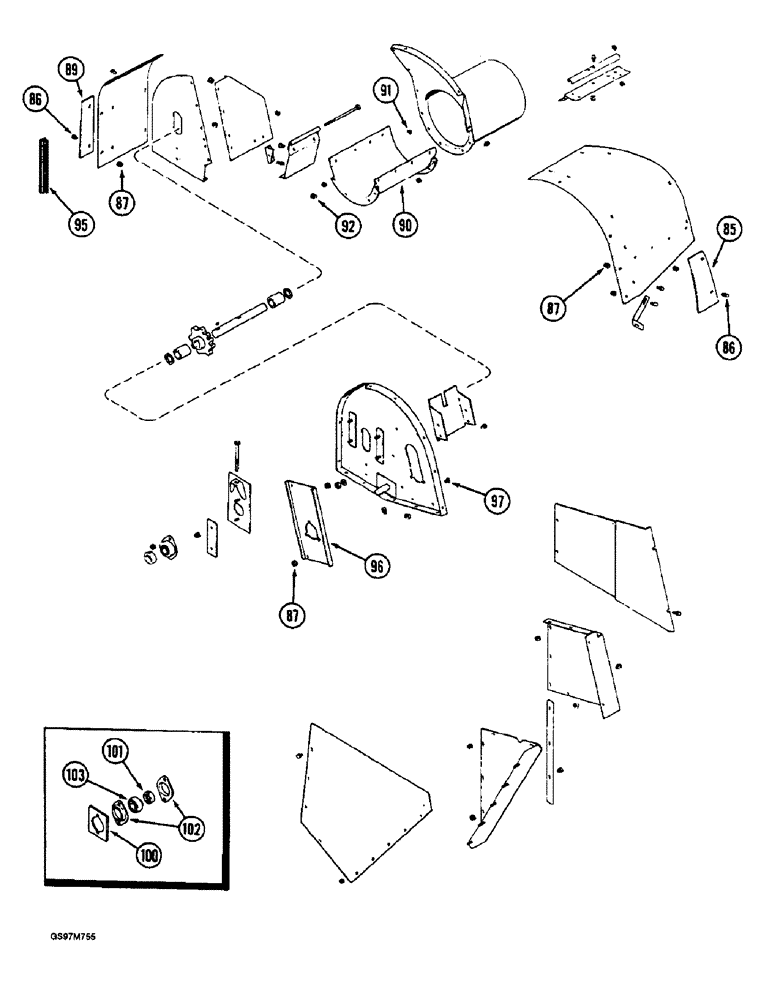

Запчасти Case IH 1660 (9D-10) - GRAIN ELEVATOR HEAD, HORIZONTAL (CONTD) (16) - GRAIN ELEVATORS & AUGERS

85

1321231C1

PLATE

- sealing, front, head

1шт.

86

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

87

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

30шт.

89

1321232C1

PLATE

- sealing, rear

1шт.

90

1321130C1

TROUGH

- auger

1шт.

91

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

92

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

95

1321262C1

SEAL

- flanged, head

2шт.

96

1321129C1

PLATE

SUPPORT - bearing, auger, right-hand

1шт.

97

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

100

1979642C1

SPACER

- bearing flange

2шт.

Item 46 may be alternated with items 100 through 103.

1шт.

101

557995R11

COLLAR

- bearing, with set screw

2шт.

Item 46 may be alternated with items 100 through 103.

1шт.

102

581469R1

FLANGE,Bearing

- bearing retainer

4шт.

Item 46 may be alternated with items 100 through 103.

1шт.

103

156011C92

BALL BEARING

BEARING - ball

2шт.

Item 46 may be alternated with items 100 through 103.

1шт.
