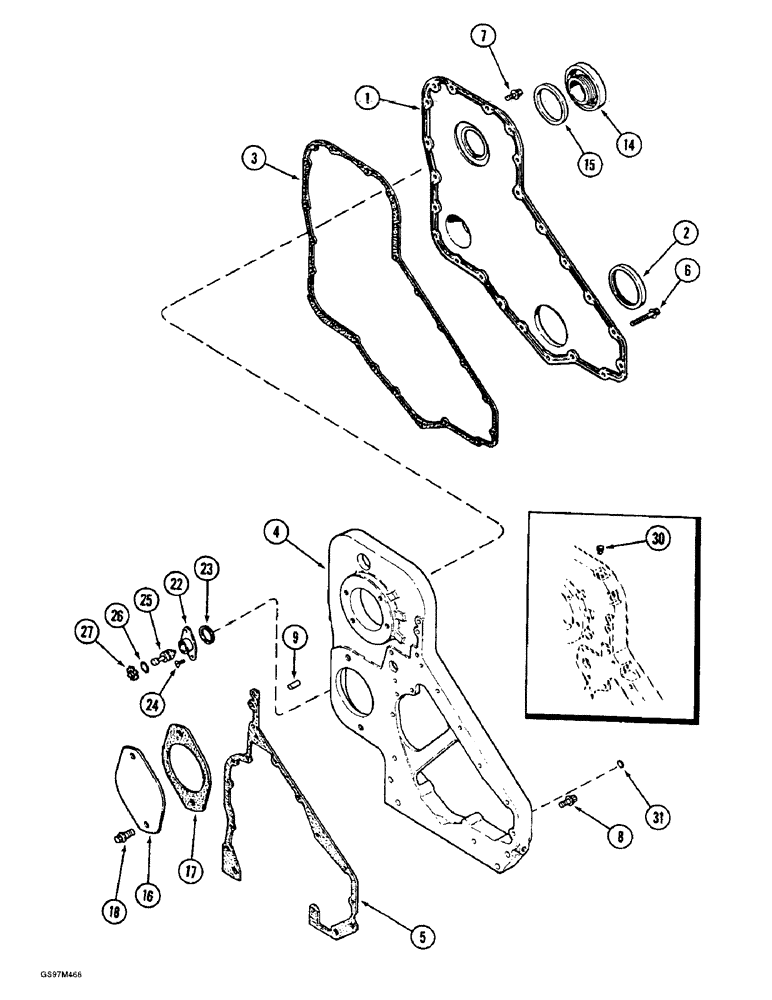

Запчасти Case IH 1660 (2-16) - FRONT GEAR COVER, 6T-830 ENGINE (01) - ENGINE

1

J926838

COVER

- gear, front (Replaces covers J905469 and J916192)

1шт.

Use silicone sealant J823494 on cover.

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, See Figure 2-48

1шт.

3

J917779

GASKET,0.98mm Thk

- front gear cover (Replaces gasket J913429)

1шт.

4

J926719

MOTOR HOUSING

HOUSING - gear (Replaces housings J915073 and J917316)

1шт.

5

J929253

GASKET

- housing, gear (Replaces gaskets J914303 and J281721)

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

6шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

17шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 20 mm

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

14

J903463

PLUG,M63 x 5

- front access

1шт.

15

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

16

J914868

COVER

PLATE - access cover, flat (Replaces plate J909918)

1шт.

17

J931608

GASKET

- access cover plate (Replaces gaskets J913288 and J919601)

1шт.

18

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

22

J919683

HOUSING

- timing pin (Replaces housing J905933)

1шт.

23

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing, rectangular (Replaces ring J914092)

1шт.

24

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

25

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

26

J913994

O-RING

- sealing

1шт.

27

100-2587

SNAP RING,0.875", Int, #87

Ring, Snap, , Timing pin (Replaces J904849) 0.875", Int, #87

1шт.

30

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

3шт.

31

A77552

PLUG

- expansion, 29/64 inch diameter, lower dowel hole

1шт.
