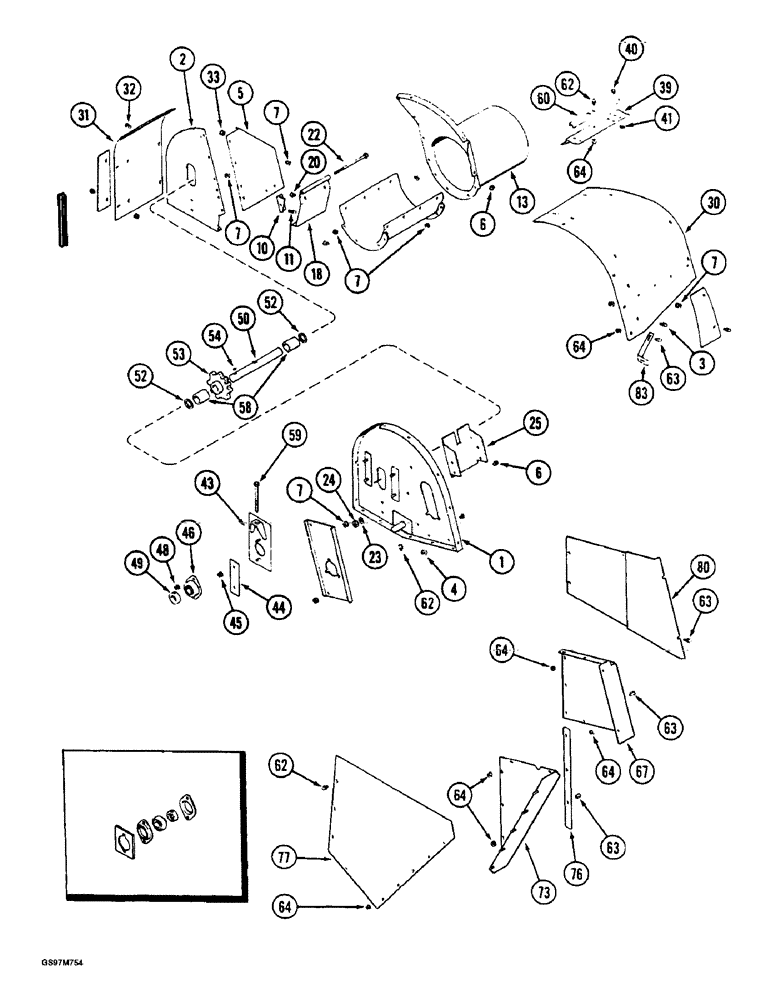

Запчасти Case IH 1660 (9D-08) - GRAIN ELEVATOR HEAD, HORIZONTAL (16) - GRAIN ELEVATORS & AUGERS

1

1321126C1

PLATE

SIDE - head, right-hand

1шт.

2

1319901C1

SIDE PLATE

SIDE - elevator head, left-hand

1шт.

3

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

9шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

5

1321139C1

PLATE

SUPPORT - left-hand side head

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

16шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

20шт.

10

1321553C1

BRACKET

ANGLE - support, cutoff end

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

13

121369A1

SUPPORT

- front, head, left-hand (Replaces support 1321277C1)

1шт.

18

1319952C1

PLATE

SECTION - cut off, head

1шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

22

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

- hex, 5/16 NC x 7 inch, grade 2

1шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

25

1317222C1

PLATE

- deflector

1шт.

30

1321128C1

COVER

- head, front

1шт.

31

1319942C1

COVER

- rear, elevator head

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

13шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

13шт.

39

198581A1

STIFFENER

ANCHOR - chain tightener, conveyer (Replaces anchor 1319959C1)

1шт.

40

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

43

1317251C3

SUPPORT

- headshaft

2шт.

44

1310040C1

BAR

- guide, bearing

4шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

46

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - headshaft

2шт.

48

231-5146

FLANGE NUT,3/8"-16

4шт.

49

557995R11

COLLAR

- bearing, with set screw

2шт.

50

1317429C1

SHAFT

- headshaft sprocket

1шт.

52

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

53

1317192C1

SPROCKET

- drive

2шт.

54

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

58

1317193C2

SPACER

- sprocket

2шт.

59

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

- hex, special, 1/2 NC x 5-1/2 inch

1шт.

60

1317474C2

CHANNEL

- lock, tightener

1шт.

62

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

63

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

64

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

28шт.

67

1321228C1

EXTENSION

- head, lower

1шт.

73

1321496C1

SUPPORT

- side panel, left-hand

1шт.

76

1321155C1

SPACER

BAR - spacer

1шт.

77

1979472C1

SHEET

PANEL - side, right-hand

1шт.

80

1321618C2

PLATE

SUPPORT - cover, auger

1шт.

83

1321832C2

SUPPORT

BRACE - front cover

1шт.
