Запчасти Case IH 1660 (9D-06) - GRAIN ELEVATOR, HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS

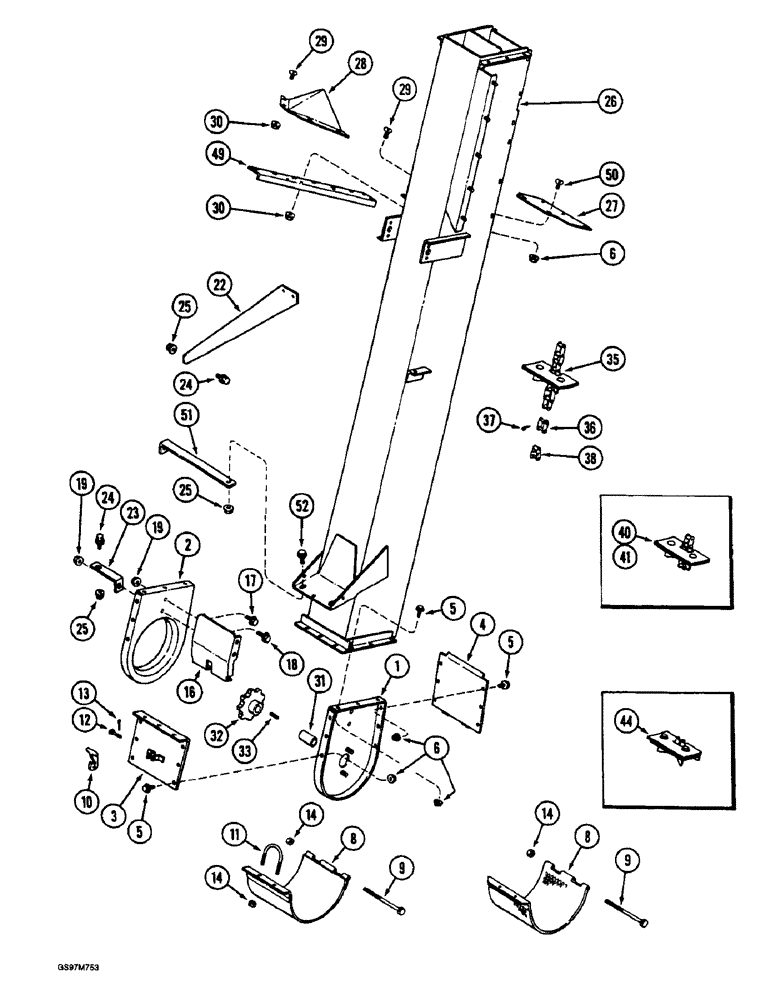

Схема запчастей Case IH 1660 - (9D-06) - GRAIN ELEVATOR, HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS
30
8
38
25
32
6
33
14
14
10
25
9
11
5
24
51
31
13
36
14
5
19
29
5
37
50
29
24
44
1
9
19
30
17
25
8
22
27
18
49
16
6
35
2
26
4
3
41
28
12
40
23
52

Артикул

Название

Примечание

Количество

1

1318585C2

SIDE PLATE

SIDE - boot, outer

1шт.

2

1317673C2

BASE

SIDE - boot, inner

1шт.

3

1317271C1

COVER

- boot, rear

1шт.

4

1317273C1

COVER

- boot, front

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

12шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

8

1317276C1

DOOR

- boot, non-perforated

1шт.

8

1317841C1

DOOR

- boot, perforated

1шт.

9

413-5120

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

- hex, 5/16 NC x 7-1/2 inch (Replaces bolt 1321942C1)

2шт.

10

155909C1

LATCH

- door

1шт.

11

316039R1

BOLT,5/16" - 18 x 5", Carbon Steel

U-BOLT - 5/16 inch NC

1шт.

12

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

14

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

16

1317270C3

GUARD

DEFLECTOR - grain, bottom

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

3шт.

18

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

22

1317362C5

SUPPORT

BRACKET - support, lower

1шт.

23

1327667C1

SUPPORT

- elevator

1шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

5шт.

25

231-5146

FLANGE NUT,3/8"-16

5шт.

26

1317376C5

HOUSING

- elevator

1шт.

27

1317688C1

PLATE

- seal

1шт.

28

1317698C1

PLATE

SUPPORT - rear seal

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

12шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

31

1317193C2

SPACER

- sprocket

3шт.

32

1317192C1

SPROCKET

- drive

1шт.

33

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

1шт.

35

1321334C92

ELEVATOR CHAIN

CONVEYOR ASSEMBLY - elevator, Includes: Ref. 36 - 44 and items listed to Ref. 49

1шт.

36

241-15113

LINK,41.4mm Pitch

LINK - connecting, single pitch, No. C550, 1-5/8 inch pitch

1шт.

37

23442R1

PIN,2.36mm OD

- roller S Type, No. 550 chain

1шт.

38

241-18113

LINK,41.4mm Pitch

LINK - offset, single pitch, No. C550, 1-5/8 inch pitch

1шт.

40

1317613C92

PALLET

FLIGHT ASSEMBLY - conveyor, rubber, Includes: Ref. 41

1шт.

41

241-12113

LINK,Chain, 41.4mm Pitch

LINK - roller, single pitch, No. C550, 1-5/8 inch pitch

2шт.

44

1321443C92

STEEL FLIGHT

FLIGHT ASSEMBLY - conveyor, Includes: items listed to Ref. 49

1шт.

1317480C2

RUBBER FLIGHT

FLIGHT - conveyor

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

49

1317493C1

BRACKET

ANGLE - tank bottom stiffener, left-hand

1шт.

50

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

51

1317625C1

SUPPORT

- elevator housing, lower

1шт.

52

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.
