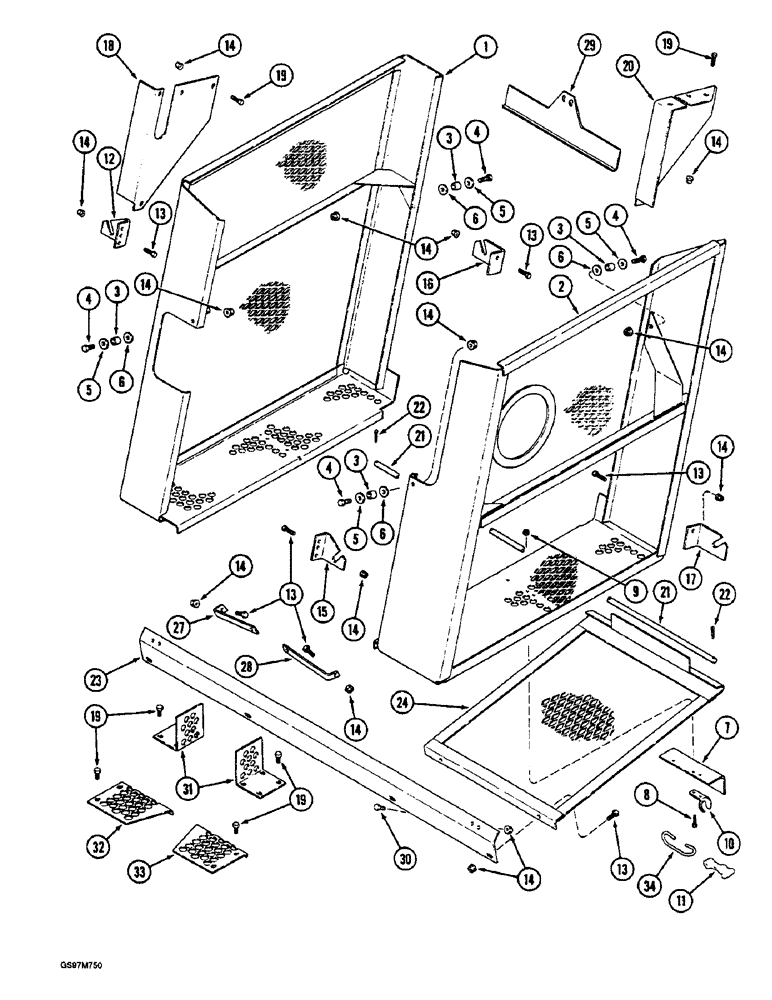

Запчасти Case IH 1660 (9C-22) - FAN SHIELDS, MODELS WITHOUT EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS

1

182824C3

GUARD ASSY.

SHIELD - fan drive, left-hand

1шт.

2

182846C5

HOUSING

SHIELD - fan drive, right-hand

1шт.

3

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch

4шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

8шт.

7

181496C1

SHIELD

GUARD - latch

2шт.

8

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

6шт.

9

231-51409

SERRATED NUT,Flg, USR, #10-24

6шт.

10

L105124

LATCH HOOK

HOOK - latch (Replaces hook 764071C1)

2шт.

11

494307C1

LATCH

HOOK - hold down, latch

2шт.

12

182858C2

SUPPORT

- fan shield rear, left-hand

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

18шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

30шт.

15

182859C2

SUPPORT

- fan shield, rear, right-hand

1шт.

16

182860C1

ANGLE

- front left-hand shield

1шт.

17

182861C1

ANGLE

- shield, right-hand front

1шт.

18

182863C1

SHIELD

- left-hand front

1шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

20

182866C1

SHIELD

- right-hand front

1шт.

21

182811C1

ROD

- fan shield

1шт.

22

432-1216

COTTER PIN,3/16" x 1"

4шт.

23

182822C1

SUPPORT

- bottom screen, rear retainer

4шт.

24

182813C1

GUARD ASSY.

SHIELD - lower fan, right-hand, shown

1шт.

24

182817C2

GUARD ASSY.

SHIELD - lower fan, left-hand

1шт.

27

182874C1

SUPPORT

- fan bearing, left-hand

1шт.

28

182875C1

SUPPORT

- fan bearing, right-hand

1шт.

29

182882C1

SUPPORT ASSY.

axle to auger bed seal

1шт.

For field installed fan shields.

1шт.

29

182883C1

SUPPORT

axle to auger bed seal

1шт.

For J.I. Case installed fan shields.

1шт.

30

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

31

182809C2

GUARD

SHIELD - intake lower rear

2шт.

32

182805C1

SHIELD

- intake upper rear, left-hand

1шт.

33

182806C1

SHIELD

- intake upper rear, right-hand

1шт.

34

1302723C2

HOOK

- inlet shield

2шт.
