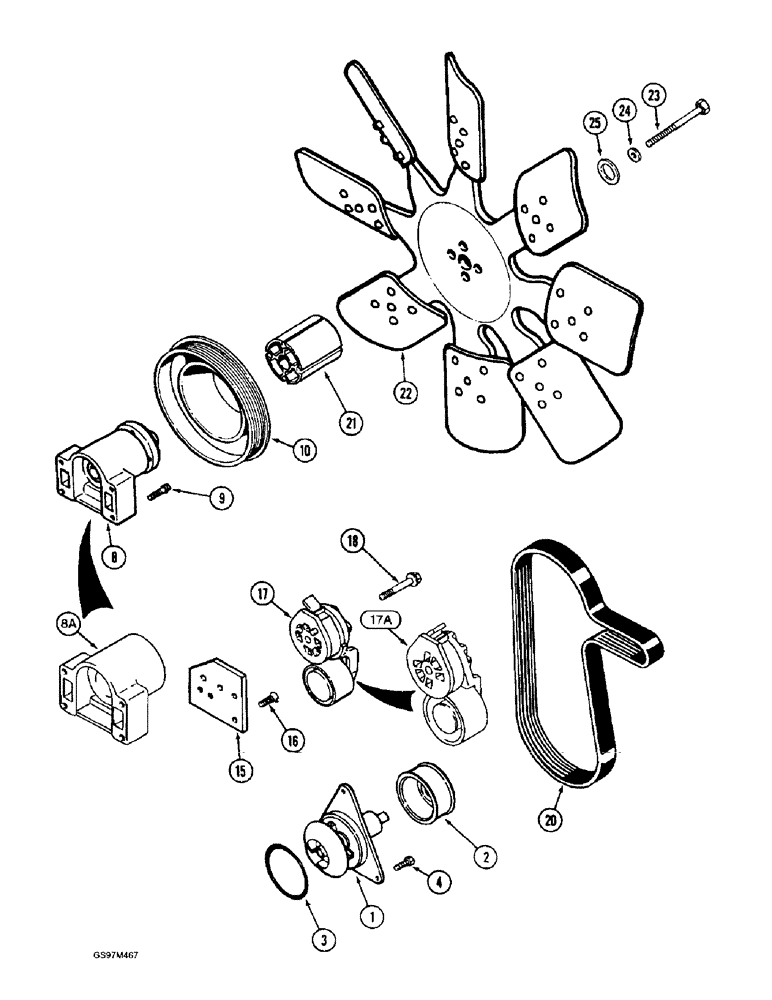

Запчасти Case IH 1660 (2-14) - WATER PUMP SYSTEM, 6T-830 ENGINE (01) - ENGINE

AR77704

PUMP, WATER

PUMP - water, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, no longer available, order new pump J802479

1шт.

J800976R

REMAN-WATER PUMP

1660 (S/N JJC0038346 & AFTER) 6T-830 ENGINE (1/86-12/92), Reman for New P/N AR77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77704

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

J802479

PUMP, WATER

PUMP - water, new

1шт.

J800976R

REMAN-WATER PUMP

1660 (S/N JJC0038346 & AFTER) 6T-830 ENGINE (1/86-12/92), Reman for New P/N J802479

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

A77704

PUMP, WATER

KIT - water pump, new, no longer available, order pump J802479 (Replaces kit A777579), Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

1660 (S/N JJC0038346 & AFTER) 6T-830 ENGINE (1/86-12/92), Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water, order kit A77704

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump, order kit A77704

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

8

J910738

SUPPORT ASSY.

SUPPORT - fan, no longer available, order support J929458, item 8A

1шт.

8a

J929458

SUPPORT

- fan

1шт.

9

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

4шт.

10

J914461

PULLEY

- fan, 207 mm diameter, 0.87 to 1 ratio, models without cross flow cleaning system

1шт.

10

J914462

PULLEY,163mm OD

- fan, models with cross flow cleaning system

1шт.

15

J925211

BRACKET

- mounting, tensioner

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm

2шт.

17

J914086

BELT TENSIONER

TENSIONER - belt, no longer available, order belt tensioner J918944, item 17A

1шт.

17a

J918944

BELT TENSIONER

TENSIONER - belt

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

20

J911574

V-BELT,27.92mm W x 1587.5mm L, 8 Ribs

Fan, Drive, Models Without Cross Flow Cleaning System 3.56 mm W x 1587.50 mm L, 8 Ribs

1шт.

20

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Fan, Drive, Models with Cross Flow Cleaning System 3.56 mm W x 1549.90 mm L, 8 Ribs

1шт.

21

A184548

SPACER,Fan, 89/90mm Thk

- fan, 90 mm long

1шт.

22

84584C1

FAN

- engine, puller, models without cross flow cleaning system

1шт.

22

1547933C1

FAN

- engine, puller, 650 mm (25-1/2 inch) OD, part number stamped on fan blade, models with cross flow cleaning system

1шт.

23

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm

4шт.

23

814-10125

BOLT,Hex, M10 x 1.5 x 125mm, Cl 8.8

- hex, 10-1.5 x 125 mm (if used)

4шт.

24

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

4шт.

25

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

- flat, 13/32 x 1-1/4 x 15/64 inch, hardened

4шт.
