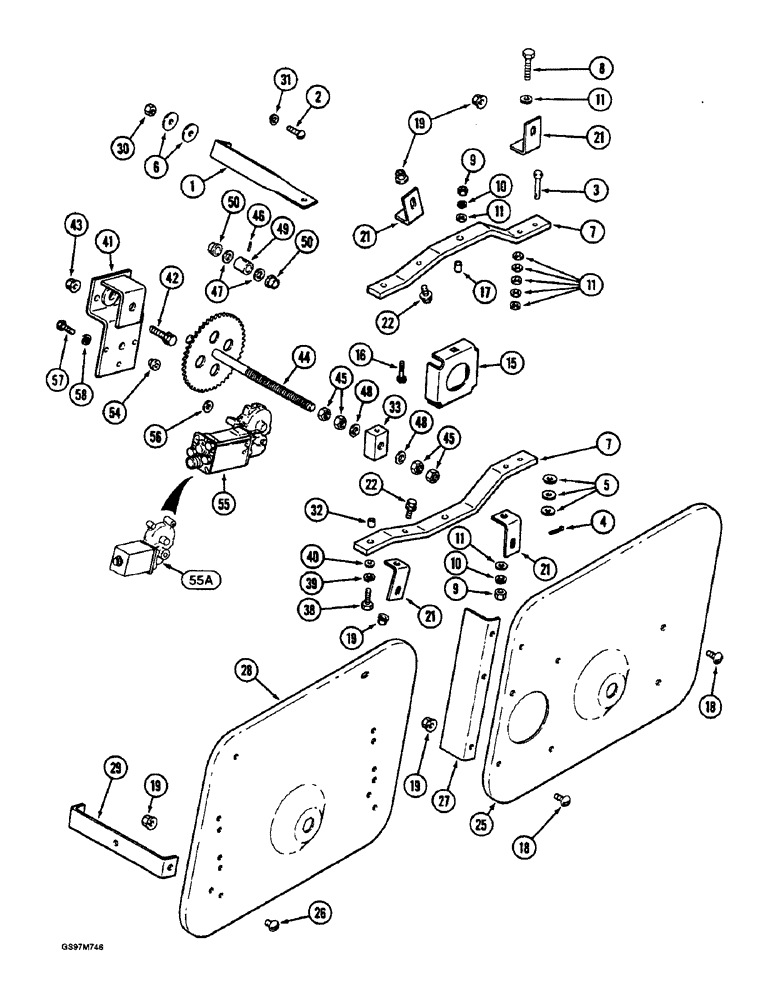

Запчасти Case IH 1660 (9C-14) - CLEANING FAN, DRIVE SPEED CONTROL, TWO PIECE SHIELD (15) - BEATER & CLEANING FANS

1

186283C1

SUPPORT

- fan drive control

1шт.

2

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

3

439-1624

HEADED PIN,3/8" x 1 1/2"

PIN - headed, 3/8 x 1-1/2 inch, grade 2

1шт.

4

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

6

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch

2шт.

7

194850C2

SUPPORT

- fan control

2шт.

8

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

15

194852C2

SUPPORT

- fan driver

1шт.

16

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - carriage, 5/16 NC x 1-1/4 inch, grade 2

2шт.

17

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

12шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

23шт.

21

194756C2

ANGLE

- fan drive pulley shield

4шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

25

194758C2

SUPPORT

- fan shield

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

3шт.

27

186089C1

SHIELD

- elevator drive idler

1шт.

28

194759C6

GUARD

SHIELD - fan drive

1шт.

29

194760C1

SUPPORT

BRACKET - beater drive shield

4шт.

30

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

33

181206C1

BLOCK

- shaft, fan speed control

1шт.

38

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

41

181199C2

SUPPORT

- speed control motor

1шт.

42

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

43

231-5146

FLANGE NUT,3/8"-16

2шт.

44

181202C1

SHAFT ASSY.

SHAFT - adjusting gear

1шт.

45

425-1010

NUT,5/8"-11, G5

4шт.

46

138-2067

PIN,3/16" x 1", Coiled

(Replaces pin 364436R1) 3/16" x 1", Coiled

1шт.

47

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch

2шт.

48

1302054C1

WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk

- thrust, fan control

2шт.

49

181205C1

SPACER

- adjusting gear shaft

1шт.

50

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

- gear shaft

2шт.

54

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

- electric motor

1шт.

55

126573C1

MOTOR, ELECTRIC

MOTOR - electric, variable speed, no longer available, order motor 111787A2, item 55A and appropriate kit

1шт.

For P.I.N. prior to JJC0039262, order fan speed kit 252488A1. For P.I.N. JJC0039262 and after, order fan speed kit 252490A1.

1шт.

55a

111787A2

MOTOR, ELECTRIC

MOTOR - electric, variable speed

1шт.

55a

111787A2R

REMAN-ELECTRIC MOTOR

1660 S/N JJC0038346 & AFTER (1/86-12/92)

1шт.

55a

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

252490A1

PACKAGE

KIT - fan speed, used with motor 111787A2 only, P.I.N. JJC0039262 and after, Includes: items listed to Ref. 56

1шт.

252488A1

PACKAGE

KIT - fan speed, used with motor 111787A2 only, prior to P.I.N. JJC0039262, Includes: items listed to Ref. 56

1шт.

244562A1

HARNESS

- fan speed, used with kit 252488A1

1шт.

244563A1

HARNESS

- fan speed, used with kit 252490A1

1шт.

244572A1

CABLE

- fan speed ground

1шт.

245336C1

SWITCH

- fan speed adjusting

1шт.

113485A1

SPACER

BUSHING - motor spacer, 17 mm

2шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere

1шт.

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 178 mm (7 inch) long (Replaces strap 289862C1)

6шт.

56

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

3шт.

57

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

58

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.
