Запчасти Case IH 1660 (9C-13A) - CLEANING FAN, DRIVE, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS

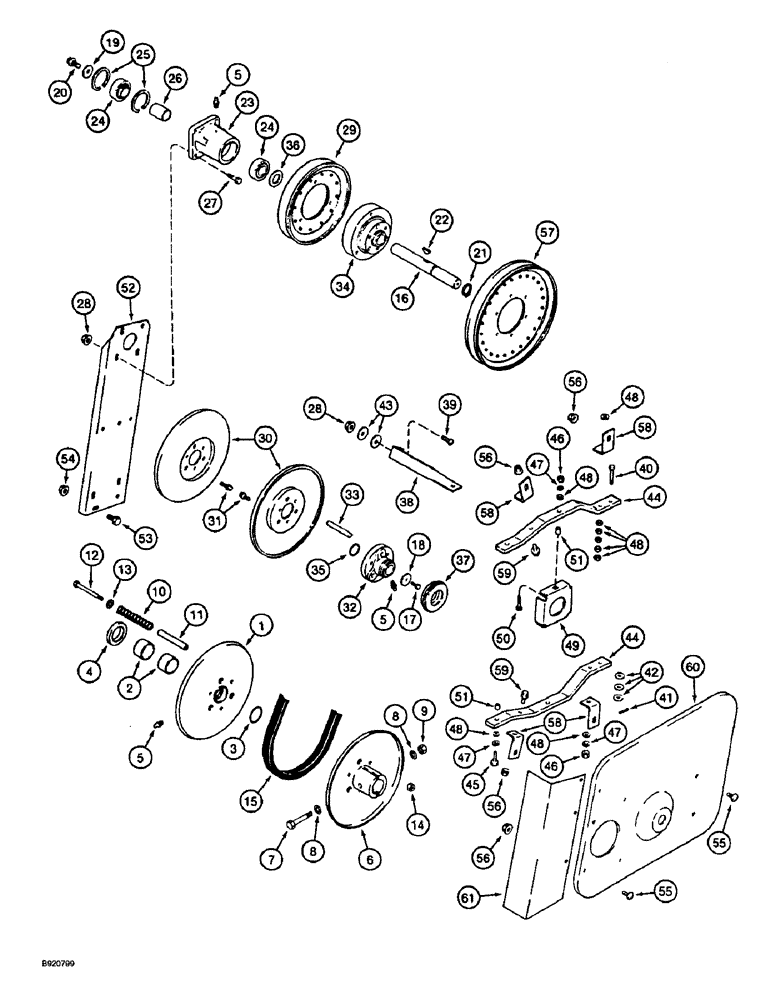

Схема запчастей Case IH 1660 - (9C-13A) - CLEANING FAN, DRIVE, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS
53
60
45
32
44
51
5
2
55
49
50
54
58
26
55
46
23
14
33
56
29
25
30
56
58
46
40
5
11
48
24
8
20
35
10
48
42
52
6
19
48
43
61
18
58
7
4
28
47
22
1
41
47
24
8
56
17
34
15
57
12
48
27
38
9
5
39
13
47
37
44
51
16
55
31
3
36
55
21
28
48
59

Артикул

Название

Примечание

Количество

1541552C2

PULLEY

ASSEMBLY - fan drive, adjustable, 286 mm (11-1/4 inch) OD, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PULLEY - fan drive, adjustable, 286 mm (11-1/4 inch) OD, order pulley assembly

1шт.

2

1541551C1

BUSHING,44.32mm ID x 48.97mm OD x 30.2mm L

- pulley

2шт.

3

238-5327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

(Replaces O-ring 259771R1) -327, 70 Duro, 1.725" ID x .210" Thk

1шт.

4

1541775C1

SEAL

- grease, lip type

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Replaces fitting 19588R91) 1/4"-28 x .56" lg, Self-Tap

3шт.

6

1541553C2

PULLEY

- fan drive, fixed, 286 mm (11-1/4 inch) OD

1шт.

7

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.

8

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

2шт.

9

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

10

1302181C2

SPRING

- adjustment, fan drive pulley

3шт.

11

1302180C2

BUSHING,8.2mm ID x 14.27mm OD x 101.6mm L

SPACER - adjustment spring

3шт.

12

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

3шт.

13

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

3шт.

14

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

15

1541569C1

V-BELT,1816.65 mm L

Drive 1816.65 mm L

1шт.

16

194853C3

SHAFT

- elevator and fan drive

1шт.

17

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

18

495-81122

WASHER,.344" x 1 1/2" x .120"

- flat, 11/32 x 1-1/2 x 7/64 inch (Replaces washer 668569R1)

1шт.

19

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - retaining, fan bearing

1шт.

20

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special

1шт.

21

100-16125

SNAP RING,#125, Ext

Ring, Snap, , Inner drive bearing (Replaces ring 609053R1) #125, Ext

1шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

Elevator and fan drive shaft #B, 5/16" x 1", HT

1шт.

23

192418C1

HUB

- elevator and fan drive

1шт.

24

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - elevator and fan drive

2шт.

25

360936R1

RING

- snap, fan drive shaft

2шт.

26

152926C1

SPACER

- 1-15/16 x 1-5/8 x 1-7/8 inch

1шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

28

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

5шт.

29

REF

INSTRUCTION

PULLEY - fan and elevator jackshaft driven, 248 mm (9-3/4 inch) OD

1шт.

30

183288C1

PULLEY

- fan drive, 286 mm (11-1/4 inch) OD

2шт.

31

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

32

185286C91

HUB

ASSEMBLY - fan driver adjusting pulley, Includes: Ref. 33

1шт.

33

37-1856

DOWEL,1/2" x 3 1/2"

Hardened (Replaces pin 25095R1) 1/2" x 3 1/2"

3шт.

34

183333C1

HUB

- fan driver fixed pulley

1шт.

35

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

(Replaces O-ring A27577) -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

36

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER - fan bearing retainer

1шт.

37

185094C92

BALL BEARING,50.8mm ID x 93.66mm OD x 20.5mm W

BEARING - fan jackshaft

1шт.

38

186283C1

SUPPORT

- fan drive control

1шт.

40

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN - headed, 3/8 x 1-1/2 inch, hardened

1шт.

41

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

42

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

3шт.

43

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch (Replaces washer 21752R1)

2шт.

44

194850C2

SUPPORT

- fan control

2шт.

45

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

46

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

47

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

48

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

49

194852C2

SUPPORT

- fan driver

1шт.

50

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch (Replaces bolt 598804R1)

2шт.

51

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

52

1541632C1

SUPPORT

- fan hub bearing

1шт.

53

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

4шт.

54

231-5146

FLANGE NUT,3/8"-16

4шт.

55

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4" (Replaces bolt 632227R1)

7шт.

56

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

24шт.

57

REF

INSTRUCTION

PULLEY - cleaning unit drive, 330 mm (13 inch) OD

1шт.

58

194756C2

ANGLE

- fan drive pulley shield

4шт.

59

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex flange, 5/16 NC x 3/4 inch (Replaces bolt 202107C1)

2шт.

60

194758C2

SUPPORT

- fan jackshaft

1шт.

61

1541922C1

GUARD

SHIELD - elevator drive idler, no longer available

1шт.

39

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch (Replaces bolt 163860C1)

1шт.

Выбрано товаров: 62
