Запчасти Case IH 1660 (9C-11A) - CLEANING FAN, SHAFT AND SUPPORTS, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS

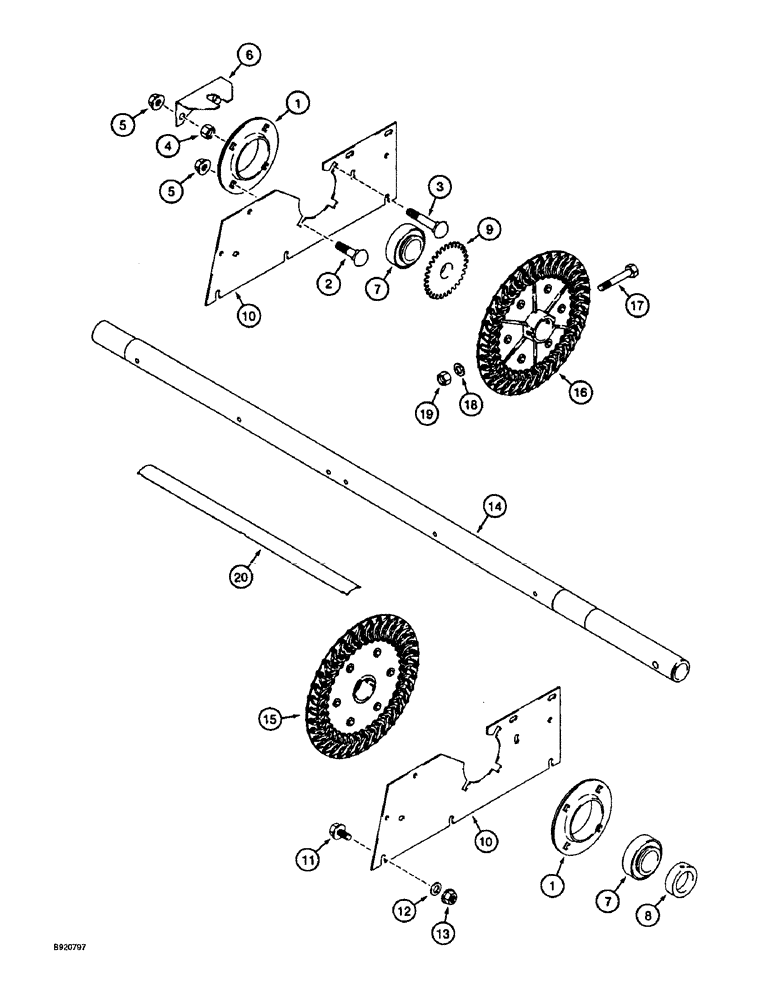

Схема запчастей Case IH 1660 - (9C-11A) - CLEANING FAN, SHAFT AND SUPPORTS, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS
5
17
4
11
14
16
5
2
7
7
12
10
15
10
3
1
1
9
19
6
8
18
13
20

Артикул

Название

Примечание

Количество

1

76079C1

FLANGE

- fan shaft bearing

4шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

6шт.

3

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

6

1541554C1

SUPPORT

BRACKET - mounting, fan speed pickup

1шт.

7

668718R92

BALL BEARING,44.45mm ID x 85mm OD x 22mm W

- fan shaft, no longer available

2шт.

8

582816R11

COLLAR

- bearing lock, includes set screw

1шт.

9

1979818C1

PINION

SPROCKET - fan speed tachometer

1шт.

10

1989360C2

SUPPORT

- fan shaft bearing

2шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

6шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

14

1989550C1

SHAFT

- cleaning fan

1шт.

15

1541560C1

FAN BLADE

- fan blade, right-hand

3шт.

16

1541570C1

FAN BLADE

- fan blade, left-hand

3шт.

17

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

6шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

12шт.

19

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

6шт.

20

1541631C1

PADDLE

BLADE - cleaning fan

72шт.

Выбрано товаров: 20
