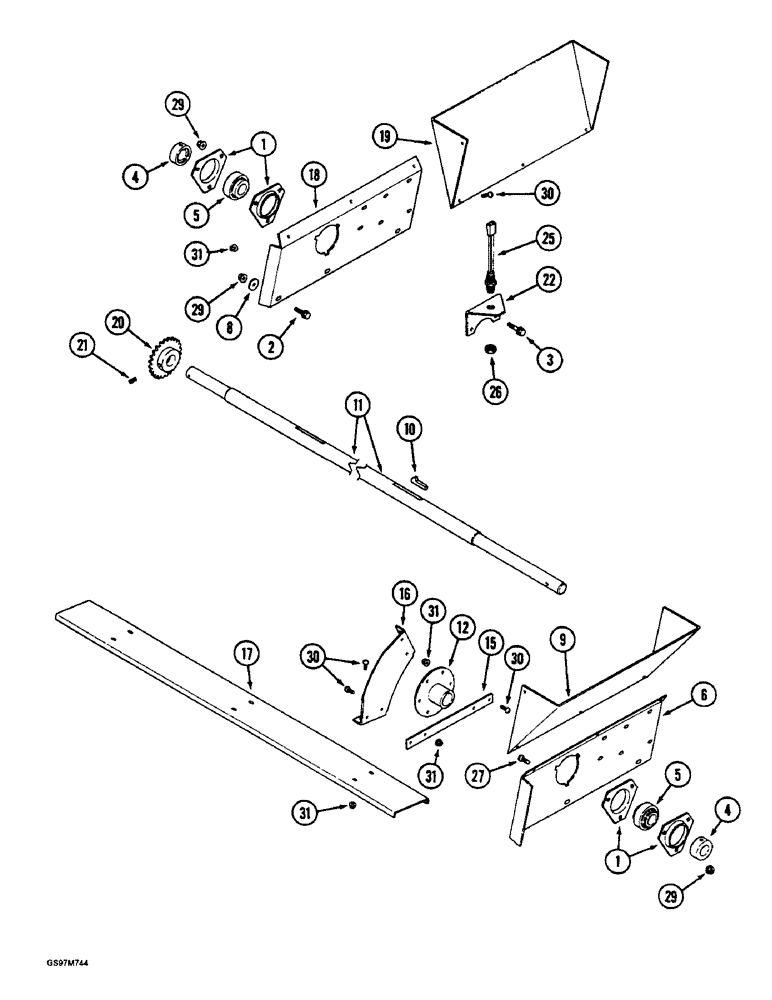

Запчасти Case IH 1660 (9C-10) - CLEANING FAN, SHAFT AND SUPPORTS, MODELS WITHOUT EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS

1

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

4шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

3

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

4

455104R11

COLLAR

- locking, bearing

2шт.

5

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- fan

2шт.

6

194396C1

SUPPORT

- fan shaft bearing, right-hand

1шт.

7

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

3шт.

8

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

6шт.

9

194398C3

SHIELD

SUPPORT - fan intake, right-hand

1шт.

10

Q1497

KEY,Gib, 3/8" Sq x 2"

- square gib, 3/8 x 2 inch

3шт.

11

1309016C2

SHAFT

- cleaning fan

1шт.

12

185480C1

HUB ASSY.

HUB - fan

3шт.

15

185483C1

BAR

- fan

18шт.

16

185484C1

SUPPORT

- cleaning fan blade

18шт.

17

182928C2

PADDLE

BLADE - cleaning fan

6шт.

18

194395C1

SUPPORT

- fan shaft bearing, left-hand

1шт.

19

194397C3

SHIELD

SUPPORT - fan intake, left-hand

1шт.

20

1979818C1

PINION

SPROCKET - fan speed tachometer

1шт.

21

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - headless cup point, 3/8 NC x 3/4 inch

1шт.

22

1301240C2

SUPPORT

- transmitter

1шт.

25

245193C2

SENSOR

ASSEMBLY - reluctance pick-up, Includes: Ref. 26

1шт.

26

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

1шт.

27

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

3шт.

29

231-5146

FLANGE NUT,3/8"-16

12шт.

30

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.
