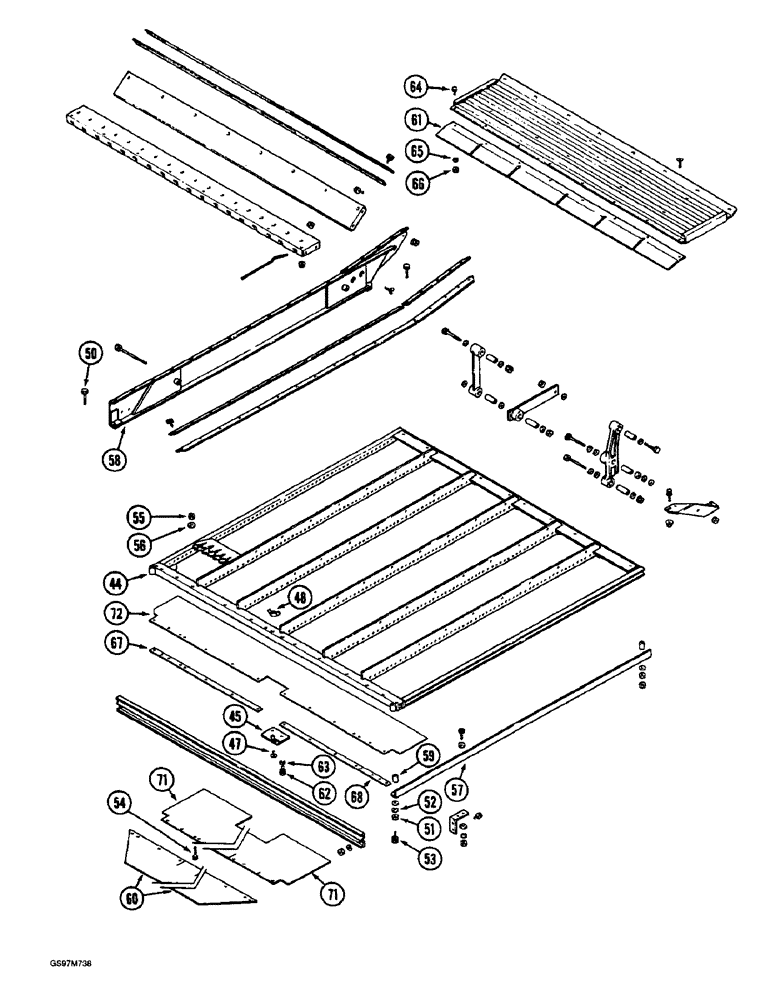

Запчасти Case IH 1660 (9B-50C) - CHAFFER SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE
№
Артикул
Название
Примечание
Количество
44
1957314C7
GRAIN SIEVE
SIEVE - 1-5/8 inch extended, closz slat chaffer, models with extended length cleaning system
1шт.
44
1957316C6
GRAIN SIEVE
SIEVE - 1-1/8 inch extended, adjustable chaffer, models with extended length cleaning system
1шт.
44
1957315C7
GRAIN SIEVE
SIEVE - 1-5/8 inch extended, corn slat chaffer, models with extended length cleaning system
1шт.
44
1970516C5
GRAIN SIEVE
SIEVE - Petersen extended chaffer, models with extended length cleaning system
1шт.
44
1330684C2
SIEVE
ASSEMBLY - 1-1/8 inch adjustable chaffer, grain, models without extended length cleaning system
1шт.
44
1330685C2
SIEVE
ASSEMBLY - 1-5/8 inch closz slat chaffer, models without extended length cleaning system
1шт.
44
1330686C2
SIEVE
ASSEMBLY - 1-5/8 inch corn chaffer, models without extended length cleaning system
1шт.
44
1319092C4
GRAIN SIEVE
SIEVE ASSEMBLY - Peterson chaffer
1шт.
45
186675C1
ADJUSTING PLATE
- shoe lever
1шт.
47
434-48
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5
Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd
1шт.
48
86627130
WING NUT,1/4"-20
NUT - wing, 1/4 inch NC
1шт.
50
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
2шт.
51
429-106
NUT,3/8"-16, G8
- hex, 3/8 inch NC, grade 8
4шт.
52
492-11038
LOCK WASHER,3/8"
2шт.
53
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
Models without extended length cleaning system Hex, 3/8"-16 x 2 3/4", G8
2шт.
54
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch, models without extended length cleaning system
8шт.
55
232-4115
LOCK NUT,5/16"-18, GC
NUT, LOCK, , Models without extended length cleaning system 5/16"-18, GC
14шт.
56
495-81119
WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk
- flat, 11/32 x 1-1/4 x 1/16 inch, models without extended length cleaning system
14шт.
57
186370C1
ANGLE
- chaffer support, right-hand, models without extended length cleaning system
1шт.
58
1979203C1
RAIL
- chaffer, right-hand, models without extended length cleaning system
1шт.
59
612233R1
SPACER,5/8" Tube x 1 1/8"
- 13/32 x 5/8 x 1-3/16 inch, rear, models without extended length cleaning system
2шт.
60
1302784C1
STRIP
- extension flap, models without extended length cleaning system
1шт.
61
1319258C1
COVER
- chaffer finger, 228 mm to first slot (See Inset)
1шт.
62
1327799C2
FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated
BOLT - hex washer head, special, 3/8 NC x 1-1/4 inch
2шт.
63
492-11038
LOCK WASHER,3/8"
2шт.
64
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
8шт.
65
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
8шт.
66
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
8шт.
67
1338345C2
RETAINER
- chaffer seal, left-hand, models without extended length cleaning system
1шт.
Prior to P.I.N. JJC0039550.
1шт.
68
1338346C1
RETAINER
- chaffer seal, right-hand, models without extended length cleaning system
1шт.
P.I.N. JJC0039550 and after.
1шт.
71
195186C2
SEAL
SEAL - chaffer, rear, models without extended length cleaning system
1шт.
72
1346999C1
RUBBER SEAL,3.05mm Thk
COVER - chaffer sieve
1шт.
Выбрано товаров: 34
