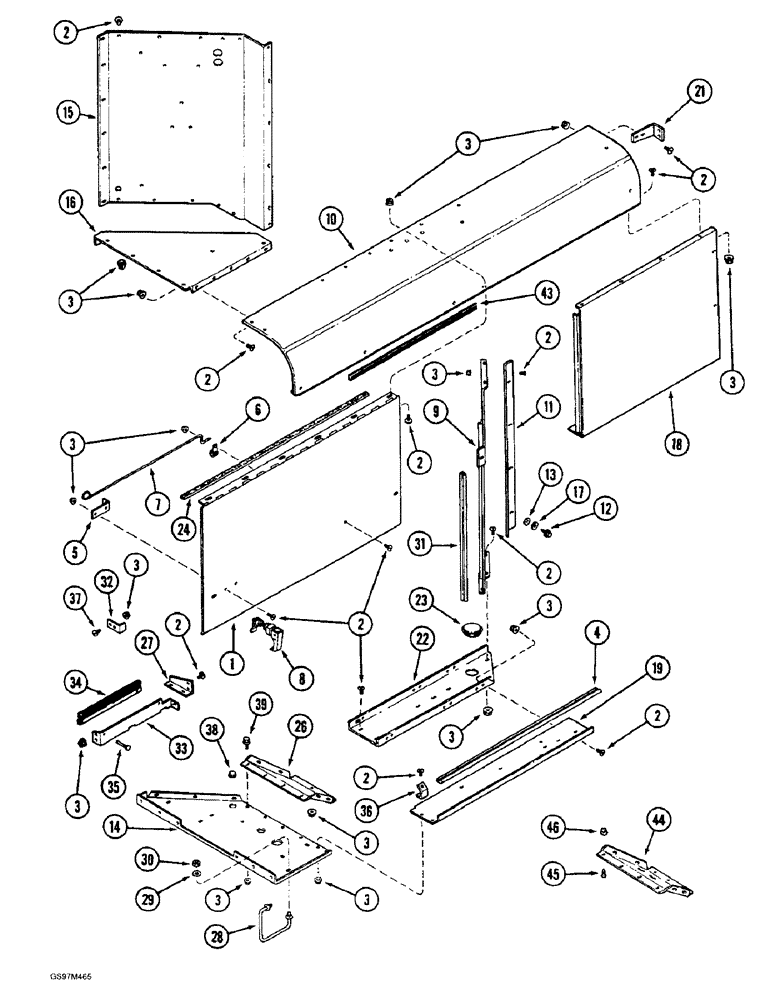

Запчасти Case IH 1660 (2-10) - ROTARY AIR SCREEN CHUTE, PRIOR TO P.I.N. JJC0102713 (01) - ENGINE

1

1321245C1

DOOR

- radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

84шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

92шт.

4

1977216C3

DOOR SEAL

- radiator access door, bottom

1шт.

5

1319697C1

SUPPORT

- rod mounting

1шт.

6

362123R1

CLIP

- trim

1шт.

7

183444C1

ROD

- tank lower door, left-hand

1шт.

8

1302494C2

LATCH

- access door

2шт.

9

1317998C1

DEFLECTOR

- screen chute

1шт.

10

1977122C5

CHUTE (DOWNWARD)

CHUTE - air screen, top

1шт.

11

1970200C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

20шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

11шт.

14

1324919C3

SHEET

SUPPORT - bottom, rear

1шт.

15

1979227C1

SHEET

SUPPORT - screen chute, rear

1шт.

16

1541858C2

SUPPORT

- screen, upper (Replaces support 1324920C2)

1шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

18

1321305C2

SHEET ASSY.

SUPPORT - air screen, front side

1шт.

19

1315675C3

SUPPORT

CHUTE - bottom, rear outlet

1шт.

21

1317704C1

SUPPORT

- top chute mounting

1шт.

22

1979471C4

SUPPORT

- radiator clean out (Replaces support 1315669C2)

1шт.

23

1302758C1

PLUG

- plastic, 89 mm OD

1шт.

24

1321353C1

SEALING STRIP

SEAL - door hinge, 953 mm (37-1/2 inch) long, cut from bulk seal 1338148CX below

1шт.

26

1315674C2

SUPPORT

- chute, lower rear, front

1шт.

27

1968548C1

SUPPORT

BRACKET - chute, discharge side

1шт.

28

1321939C2

ROD

BAR - assist handle

1шт.

29

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

30

832-41312

NUT,M12 x 1.75, Cl 10

NUT - hex, self-locking, 12 mm - 1.75, class 10

4шт.

31

1319817C2

SEAL

- radiator door

2шт.

32

1317718C1

BRACKET

- door lock

1шт.

33

1968546C2

SUPPORT

- discharge chute

1шт.

34

1338012C1

BRUSH, COMMUTATOR

BRUSH - block off

1шт.

35

151-507

RIVET,Pop, 1/8" x .575"

- break mandrel, 1/8 x 1/2 inch

2шт.

36

561915R1

BRACKET

- light

1шт.

37

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

38

1970461C1

GROMMET

- rubber, 1-3/8 x 2 x 5/16

1шт.

38

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

43

1315670C3

SEAL

SEAL - radiator top and bottom, 738 mm (29 inch) long

2шт.

44

1979728C2

SUPPORT

- chute, lower rear

1шт.

45

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

self-locking Hex Flg, 5/16"-18 x 1/2", Serr

7шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

1338148CX

SEAL

- bulk, 15240 mm (600 inch) long, sold by the foot

1шт.
