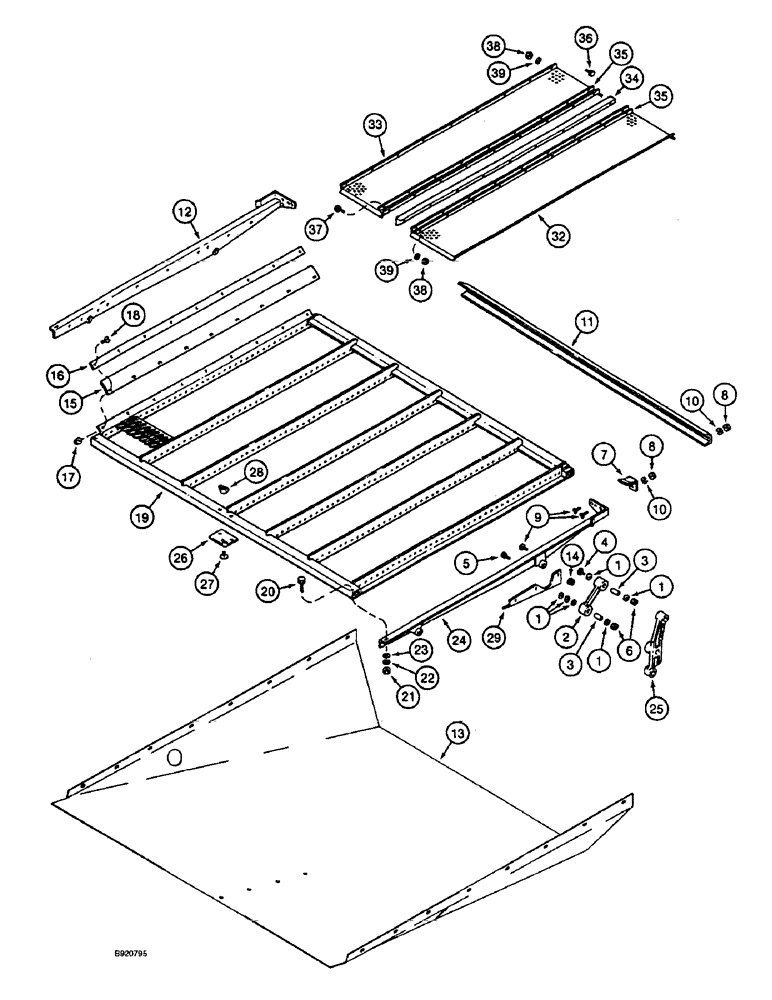

Запчасти Case IH 1660 (9B-48) - SHOE SIEVE, EXTENDED LENGTH CLEANING SYSTEM (14) - ROTOR, CONCANVES & SIEVE

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

12шт.

2

1957450C1

ARM

HANGER ASSEMBLY - shoe, front, Includes: Ref. 3

2шт.

3

1330324C1

BUSHING

- front hanger

2шт.

4

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

BOLT - carriage, 5/8 NC x 3-1/4 inch

2шт.

5

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

6

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

7

182684C3

CLIP

- shoe front support

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4" (Replaces screw 632227R1)

26шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

1319238C1

ANGLE

BRACKET - shoe sieve

1шт.

12

1979900C5

RAIL

SUPPORT - shoe sieve, left-hand

1шт.

13

1979210C1

HOUSING

PAN - bottom

1шт.

14

231-5146

FLANGE NUT,3/8"-16

18шт.

15

1325324C1

SEAL,56mm W x 1582mm L

- shoe sieve

2шт.

16

1325325C1

RETAINER

BAR - shoe sieve seal

2шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

18шт.

18

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch (Replaces bolt 937059R1)

18шт.

19

1325323C5

GRAIN SIEVE

SIEVE - shoe, 1-1/8 inch extended

1шт.

19

1970358C2

GRAIN SIEVE

SIEVE - shoe, 18 mm

1шт.

19

1970359C1

SIEVE

- shoe, 22 mm

1шт.

19

1323996C1

SIEVE - shoe, 1-5/8 inch extended

1шт.

20

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

21

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

2шт.

22

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

23

492-11038

LOCK WASHER,3/8"

(Replaces washer 366862C1) 3/8"

2шт.

24

1979901C5

RAIL

SUPPORT - shoe side, right-hand

1шт.

25

1957460C2

LEVER

ASSEMBLY - shoe, Includes: bushing listed below

1шт.

1330324C1

BUSHING

- shoe lever

1шт.

26

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

27

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

1шт.

28

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

29

1325320C1

SUPPORT ASSY.

SUPPORT - forward shoe, left-hand

1шт.

29

1325321C1

SUPPORT

- forward shoe, right-hand

1шт.

32

1319285C1

SCREEN

- perforated side section

2шт.

33

1319286C1

SCREEN

- perforated mid section

2шт.

34

1319284C1

BAR

- wood spacer

1шт.

35

1319300C1

BAR

- screen fastener backing

8шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

18шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

27шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

27шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

9шт.
