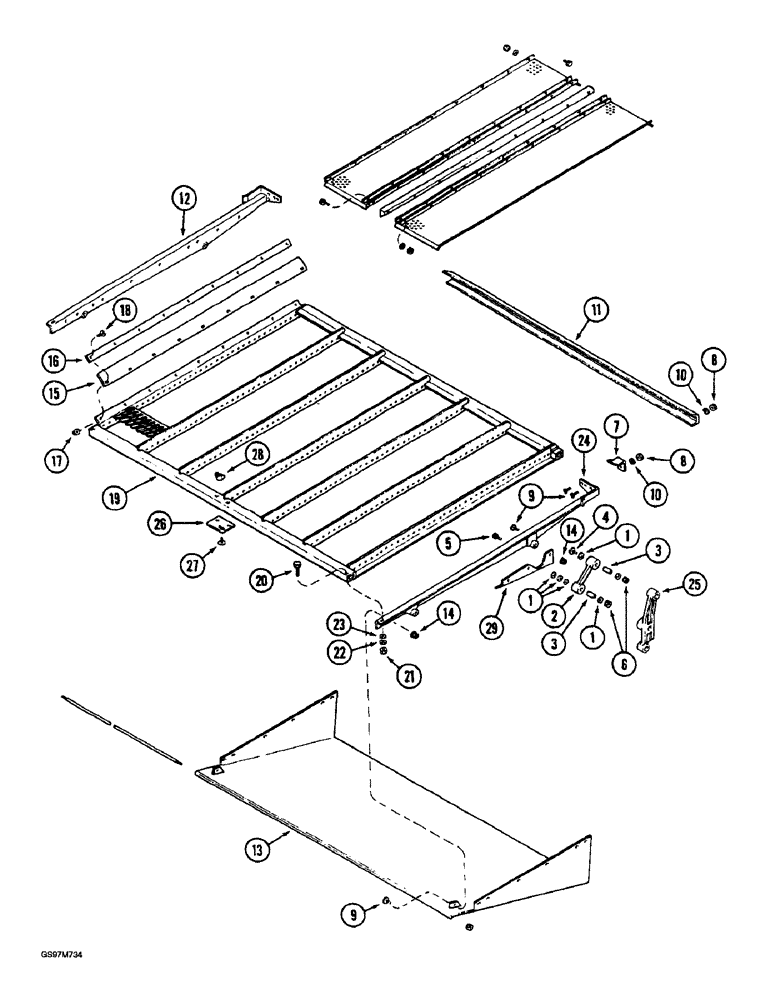

Запчасти Case IH 1660 (9B-46) - SHOE SIEVE, MODELS WITHOUT EXTENDED LENGTH CLEANING SYSTEM (14) - ROTOR, CONCANVES & SIEVE

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

12шт.

2

175160C91

LEVER

HANGER ASSEMBLY - shoe front, Includes: Ref. 3

2шт.

Prior to P.I.N. JJC0039550.

1шт.

2

1957450C1

ARM

HANGER ASSEMBLY - shoe, front, Includes: Ref. 3

2шт.

P.I.N. JJC0039550 and after.

1шт.

3

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- front hanger

1шт.

Prior to P.I.N. JJC0039550.

1шт.

3

1330324C1

BUSHING

- front hanger

1шт.

P.I.N. JJC0039550 and after.

1шт.

4

411-1052

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT - carriage, 5/8 NC x 3-1/4 inch, grade 2

2шт.

5

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

6

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

7

182684C3

CLIP

- shoe, front support

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

26шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

1319238C1

ANGLE

BRACKET - shoe sieve

1шт.

Prior to P.I.N. JJC0039550.

1шт.

12

1302070C3

SUPPORT

- shoe side, left-hand

1шт.

13

1319211C1

BOTTOM

PAN - bottom

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

18шт.

15

192192C1

SEALING STRIP

- shoe sieve

2шт.

16

192193C1

BAR

- shoe sieve seal

2шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

18

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

18шт.

19

1346914C2

SIEVE

- shoe, with piano wire, for cerial grains and tooth height of 3/8

1шт.

19

194348C1

GRAIN SIEVE

SIEVE - shoe, 1/10 round holes, parts accessory

1шт.

19

194349C1

GRAIN SIEVE

SIEVE - shoe, 7/32 round holes, parts accessory

1шт.

19

194350C1

GRAIN SIEVE

SIEVE - shoe, 3/8 round holes, parts accessory

1шт.

19

194351C1

GRAIN SIEVE

SIEVE - shoe, 1/2 round holes, parts accessory

1шт.

19

1302234C1

GRAIN SIEVE

SIEVE - shoe, 1-5/8 closz slat, parts accessory, no longer available, order sieve 1347016C2

1шт.

19

1347016C2

SIEVE

- shoe, 1-5/8 closz slat, with piano wire, for corn or beans tooth height of 13/16

1шт.

19

1312334C1

GRAIN SIEVE

SIEVE - shoe, 3 mm round holes

1шт.

19

1312335C1

GRAIN SIEVE

SIEVE - shoe, 5 mm round holes

1шт.

19

3178717R2

GRAIN SIEVE

SIEVE - shoe, 18 mm round holes

1шт.

20

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

21

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

2шт.

22

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

1302071C3

SUPPORT

- shoe side, right-hand

1шт.

25

REF

INSTRUCTION

LEVER ASSEMBLY - shoe, parts list Figure 9B-52

1шт.

26

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

27

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

1шт.

28

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

29

1302335C2

SUPPORT

- forward shoe, left-hand

1шт.

29

1302336C2

SUPPORT

- forward shoe, right-hand

1шт.
