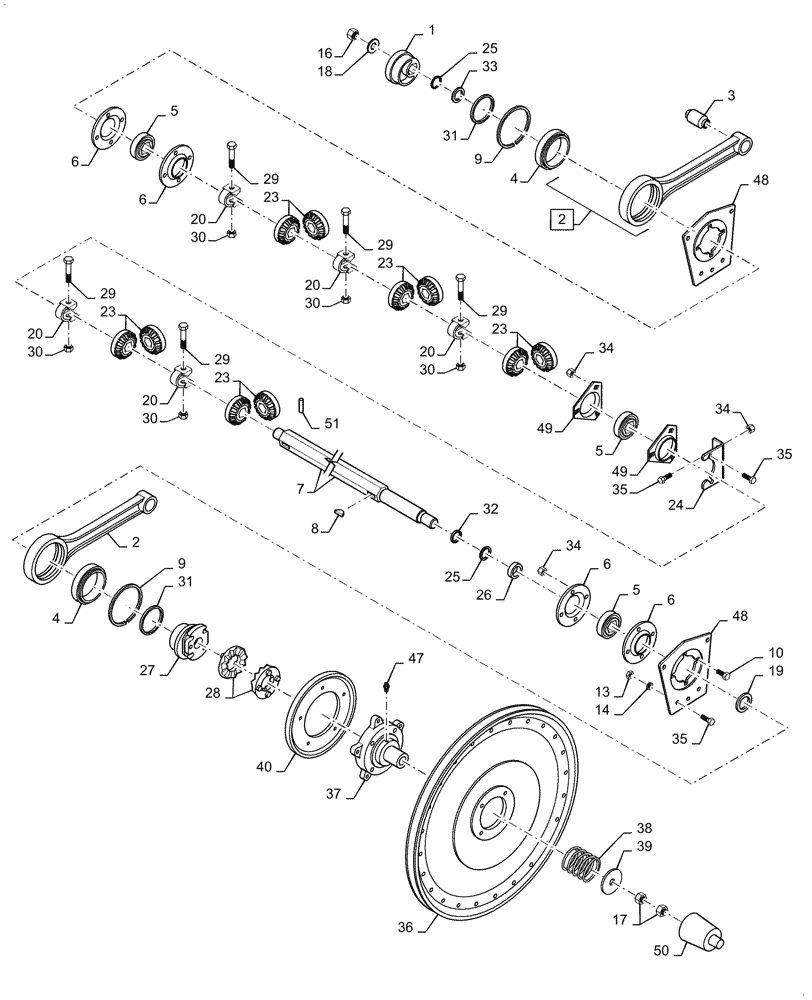

Запчасти Case IH 1660 (9B-40) - SHAKER SHAFT AND AUGER DRIVE, HEAVY DUTY DRIVE, P.I.N. JJC0039550 AND AFTER (14) - ROTOR, CONCANVES & SIEVE

1

1322573C1

CAM

- shaker shaft, pitman drive, left-hand

1шт.

2

1957458C2

ARM ASSY.

PITMAN shaker shaft, Includes: Ref. 3

2шт.

P.I.N. JJC0039550 through JJC0103799.

1шт.

2

1989251C1

ARM

PITMAN shaker shaft, Includes: Ref. 3

2шт.

P.I.N. JJC0103800 and after and models with extended length cleaning system.

1шт.

3

1330323C2

BUSHING

5/8 x 1-1/2 x 2-57/64 inch

1шт.

P.I.N. JJC0039550 through JJC0103799.

1шт.

3

1979383C1

BUSHING

- shaker shaft

1шт.

P.I.N. JJC0103800 and after and models with extended length cleaning system.

1шт.

4

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

BEARING - shaker shaft pitman (Replaces bearing 1322676C1)

2шт.

5

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - ball, shaker shaft

3шт.

6

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - bearing, shaker shaft

4шт.

7

1970192C2

SHAFT

- shaker

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

9

1322624C1

SNAP RING

RING - retaining, internal, 5-1/8 inch, pitman bearing

2шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

492-11038

LOCK WASHER,3/8"

16шт.

16

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

17

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

18

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

- shaker cam

1шт.

19

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

20

225265R1

CLAMP

- auger bed gear

5шт.

23

1300639C1

GEAR-SET

GEAR - auger drive, set of two, 14 tooth, no longer available as a set, order gears 194194C1 and 191677C1 separately

5шт.

23

194194C1

GEAR

- bevel, spreader drive

5шт.

23

191677C1

GEAR

14T - bevel, auger drive

5шт.

24

186589C1

SUPPORT

- center bearing

1шт.

25

575186R1

SNAP RING

RING - retaining, shaker shaft pitman, if used

2шт.

26

935856R2

SPACER

BUSHING - shaker shaft pitman, if used

1шт.

27

1322574C1

CAM

- shaker shaft, pitman drive, right-hand

1шт.

28

B12170

RATCHET,Clutch Slip, 94.49mm

- clutch, shaker shaft drive ship

2шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

5шт.

30

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

5шт.

31

1979190C1

RETAINER

RING - retaining

2шт.

32

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

- flat, 1-1/16 x 1-1/4 x 1/8 inch

1шт.

33

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

- flat, special, 29/32 x 1-1/4 x 1/8 inch

1шт.

34

231-5146

FLANGE NUT,3/8"-16

5шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

8шт.

36

REF

INSTRUCTION

PULLEY - shaker shaft driven, right-hand, see Figure 9A-4

1шт.

37

1303136C1

HUB

- drive slip clutch

1шт.

38

19302K

SPRING

- shaker shaft drive slip clutch

2шт.

39

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

- special

1шт.

40

566516R92

PULLEY,256.46mm OD

- drive, 248 mm (9-3/4 inch) OD

1шт.

47

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

48

1302221C1

PLATE

- shaker shaft

2шт.

49

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

2шт.

50

182544C1

SHIELD

- shaker shaft spring

1шт.

51

38-32032

PIN,7.92mm OD x 50.8mm L

4шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.
