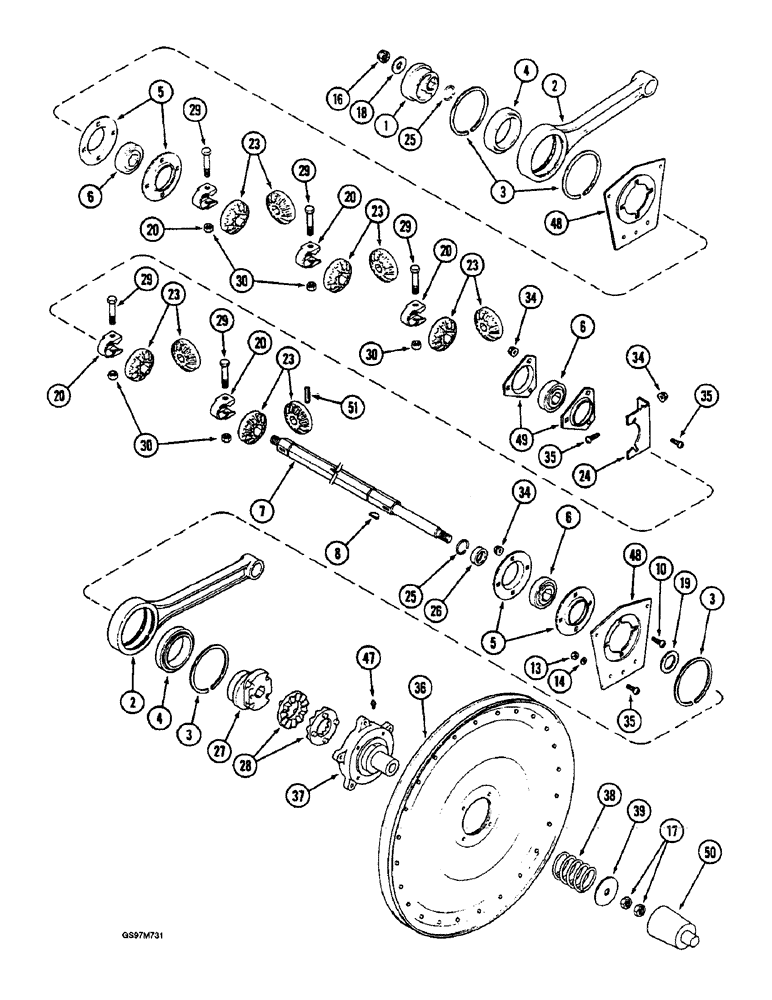

Запчасти Case IH 1660 (9B-38) - SHAKER SHAFT AND AUGER DRIVE, STANDARD DRIVE, PRIOR TO P.I.N JJC0039550 (14) - ROTOR, CONCANVES & SIEVE

1

183053C2

ECCENTRIC

CAM - shaker shaft pitman drive, left-hand

1шт.

2

186738C91

PITMAN

- shaker shaft

2шт.

3

101-21475

SNAP RING,#475, 5.070", Int

RING - internal retaining, No. 475, shaker shaft pitman bearing

4шт.

4

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

BEARING - shaker shaft pitman

2шт.

5

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - bearing, shaker shaft

4шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - ball, shaker shaft

3шт.

7

183051C1

SHAFT

- shaker

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

492-11038

LOCK WASHER,3/8"

16шт.

16

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

17

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

18

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

- shaker cam

1шт.

19

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

20

225265R1

CLAMP

- auger bed gear

5шт.

23

1300639C1

GEAR-SET

GEAR - auger drive, set of two, 14 tooth, no longer available as a set, order gears 194194C1 and 191677C1 separately

5шт.

23

194194C1

GEAR

- bevel, spreader drive

5шт.

23

191677C1

GEAR

14T - bevel, auger drive

5шт.

24

186589C1

SUPPORT

- center bearing, auger drive

1шт.

25

575186R1

SNAP RING

RING - retaining, shaker shaft pitman

2шт.

26

935856R2

SPACER

BUSHING - shaker shaft pitman

1шт.

27

191429C2

CAM

- shaker shaft pitman drive, right hand

1шт.

28

B12170

RATCHET,Clutch Slip, 94.49mm

- clutch, shaker shaft drive slip

2шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

5шт.

30

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

5шт.

34

231-5146

FLANGE NUT,3/8"-16

5шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

13шт.

36

REF

INSTRUCTION

PULLEY - shaker shaft driven, right-hand, See Figure 9A-4

1шт.

37

1303136C1

HUB

- drive slip clutch

1шт.

38

19302K

SPRING

- shaker shaft drive slip clutch

2шт.

39

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

- special, slip clutch retainer

1шт.

47

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

48

1302221C1

PLATE

- shaker shaft

2шт.

49

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing, center shaker shaft

2шт.

50

182544C1

SHIELD

- shaker shaft spring

1шт.

51

38-32032

PIN,7.92mm OD x 50.8mm L

4шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.
