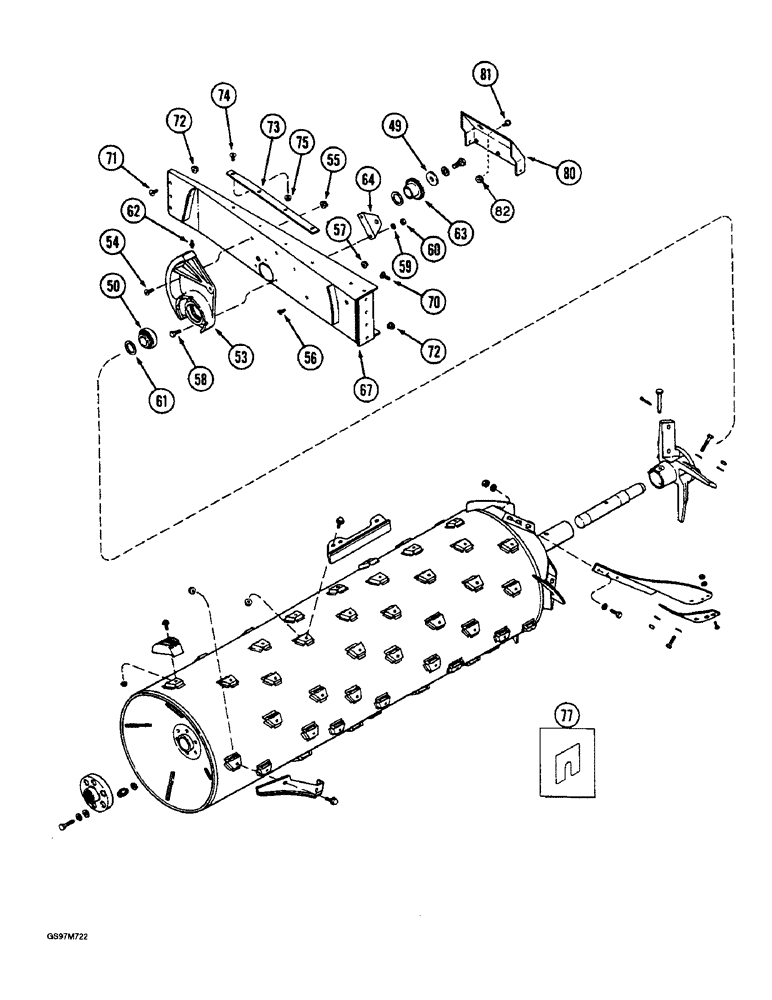

Запчасти Case IH 1660 (9B-20) - ROTOR, SPECIALTY CROP (CONTD) (14) - ROTOR, CONCANVES & SIEVE

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, special, 25/32 x 2-1/2 x 1/4 inch, front shaft

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING - rotor front

1шт.

53

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

54

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

55

231-5146

FLANGE NUT,3/8"-16

2шт.

56

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

57

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - flat, special, front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

63

1979965C1

ROTOR

- multi-position tachometer

1шт.

64

1301239C1

BRACKET

- rotor tachometer

1шт.

67

193163C8

SUPPORT

- front bearing

1шт.

70

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

4шт.

71

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

3шт.

72

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

73

1308967C1

BAR

- front door hold down

1шт.

74

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

4шт.

75

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

77

1324208C1

SHIM KIT

KIT - shim, rotor rasp

1шт.

80

182845C4

SHIELD

- sensor (Replaces shield 182844C3)

1шт.

81

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

3шт.

82

131-872

SPRING NUT,Ret, 3/8"-16

- hex, 3/8 inch NC

3шт.
