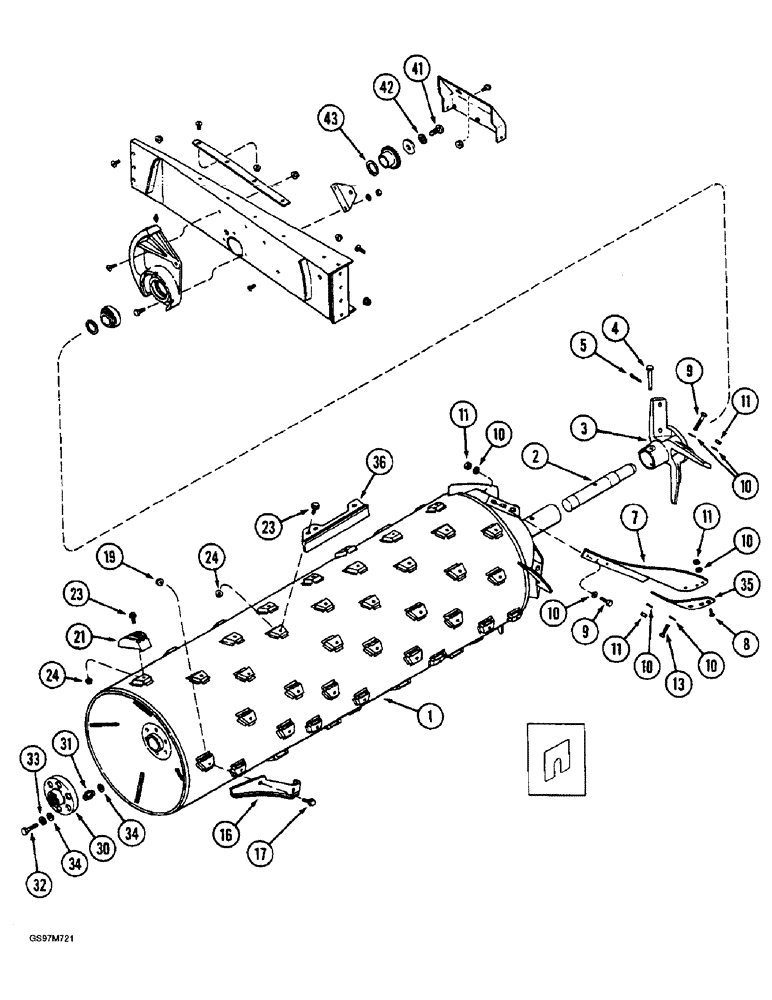

Запчасти Case IH 1660 (9B-18) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1

1347121C2

ROTOR

ASSEMBLY - threshing, without spiked bars, no longer available, order rotor assembly 256600A1, Includes: Ref. 2 - 43

1шт.

1

1317405C92

ROTOR

ASSEMBLY - threshing, rice and edible bean, Includes: Ref. 2 - 43

1шт.

1

256604A1

ROTOR

ASSEMBLY - threshing, rice, high strength, Includes: Ref. 2 - 43

1шт.

1

256600A1

ROTOR

ASSEMBLY - threshing, edible bean, high strength, Includes: Ref. 2 - 43

1шт.

2

191545C2

SHAFT

- rotor, front

1шт.

3

191546C2

IMPELLER

- rotor, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957446C3

SET OF BLADES

KIT - rotor blade, set of three, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - rotor, order kit 1957446C1

3шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, 1/2 NC x 1-1/2 inch

9шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

9шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

11

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

3шт.

16

1317690C1

ANGLE

- kicker

3шт.

16

1968967C2

BAR

ANGLE - kicker, chrome

3шт.

17

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

6шт.

19

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

6шт.

21

1309175C1

BAR

ASSEMBLY - rasp, with spike, rice, Includes: Ref. 23 & 24

21шт.

21

1309336C1

BAR

ASSEMBLY - rasp, without spike, rice, Includes: Ref. 23 & 24

33шт.

21

1309336C1

BAR

ASSEMBLY - rasp, without spike, rice, Includes: Ref. 23 & 24

48шт.

21

1968743C2

BAR

ASSEMBLY - rasp, without spike, chrome, 610 mm (24 inch) special rotor, Includes: Ref. 23 & 24

33шт.

21

1968970C2

BAR

ASSEMBLY - rasp, with spike, chrome, Includes: Ref. 23 & 24

21шт.

23

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

1шт.

30

1345307C1

COUPLING

- rotor drive

1шт.

31

180703C1

PACKAGE,SERVICE

KIT - bushing, set of six

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

12шт.

35

1309185C3

BAR

PLATE - wear, chrome

3шт.

36

1318976C2

BAR,Straight Seperator

- separator, not chromed

3шт.

36

1968969C3

BAR

- separator, chrome

3шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.
