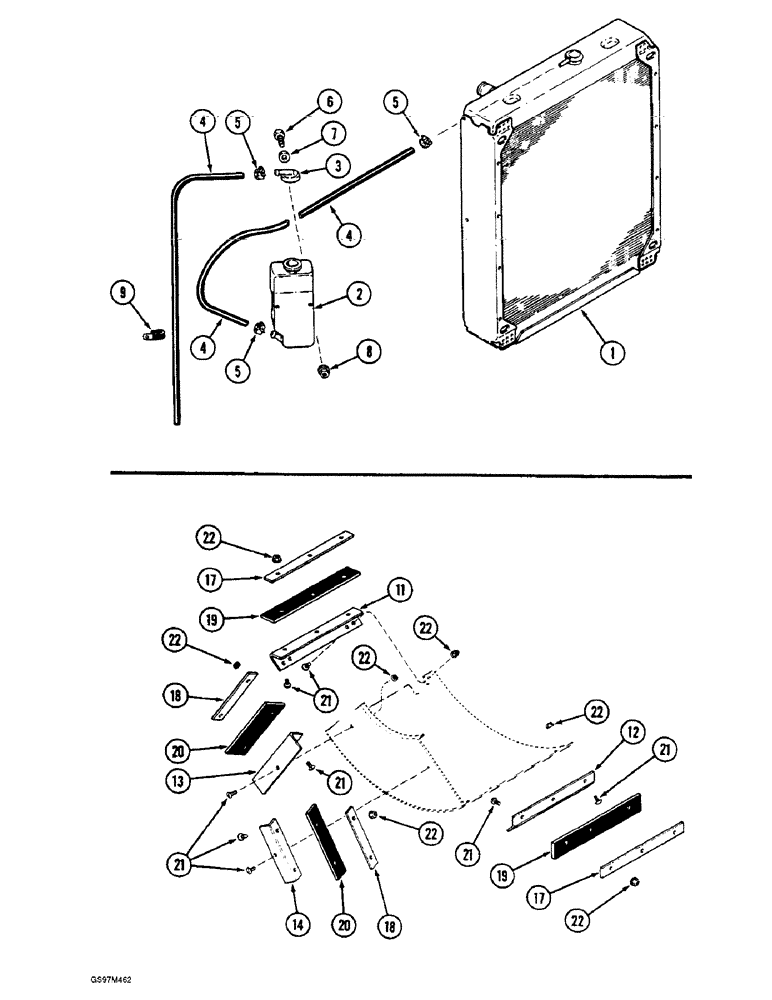

Запчасти Case IH 1660 (2-04) - COOLANT RECOVERY SYSTEM (01) - ENGINE

1

A189067

RADIATOR

ASSEMBLY - cooling system, parts list Figure 2-02

1шт.

2

437703C3

TANK

RESERVOIR - coolant recovery

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

1347455C1

LARGE HOSE,8.30 mm ID x 1175.00 mm, SAE J30

HEATER HOSE - Reservoir to radiator overflow, Cut from hose L126767 below (Replaces hose A171872) 8.30 mm ID x 1175.00 mm, SAE J30

2шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

6

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

3шт.

7

495-81109

WASHER,.281" x 1" x .048"

- flat, 9/32 x 1 x 3/64 inch

3шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, harness retaining

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.

11

1977159C1

SUPPORT

- baffle, left-hand, seal, radiator

1шт.

12

1977160C1

SUPPORT

- baffle, right-hand, seal, radiator

1шт.

13

1977161C1

SUPPORT

- baffle, left-hand rear, seal, radiator

1шт.

14

1977162C1

SUPPORT

- baffle, right-hand rear, seal, radiator

1шт.

17

1977163C1

LARGE PLATE

STRIP - baffle side, 300 mm (11-13/16 inch) long, radiator support

2шт.

18

1977164C1

SEALING STRIP

- baffle rear,165 mm (6-1/2 inch) long, radiator support

2шт.

19

1977165C1

SEAL

- side, baffle, 304 mm (12 inch) long

2шт.

20

1977166C1

SEAL

- rear, baffle, 203 mm (8 inch) long

2шт.

21

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

12шт.

22

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

12шт.
