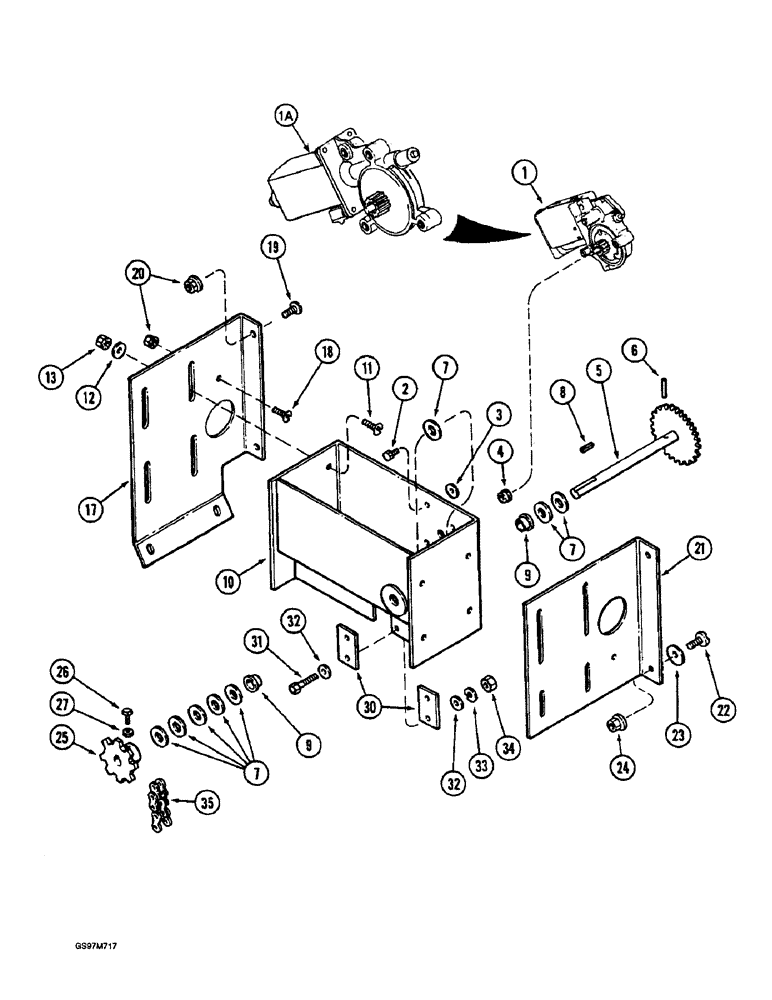

Запчасти Case IH 1660 (9B-10) - ROTOR DRIVE, SPEED ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE

1

126573C1

MOTOR, ELECTRIC

MOTOR - electric, variable speed, no longer available, order motor 111787A1, item 1A and appropriate kit

1шт.

For P.I.N. prior to JJC0039262, order rotor speed kit 252489A1. For P.I.N. JJC0039262 and after, order rotor speed kit 252491A1.

1шт.

1a

111787A2

MOTOR, ELECTRIC

MOTOR - electric, variable speed

1шт.

1a

111787A2R

REMAN-ELECTRIC MOTOR

1660 S/N JJC0038346 & AFTER (1/86-12/92)

1шт.

1a

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

252491A1

PACKAGE

KIT - rotor speed, used with motor 111787A2 only, includes instructions, Includes: harnesses, switch, spacers, bolts, nuts, washers, breaker, and straps

1шт.

252489A1

PACKAGE

KIT - rotor speed, used with motor 111787A2 only, includes instructions, Includes: harnesses, switch, spacers, bolts, nuts, washers, breaker, and straps

1шт.

244566A1

HARNESS

- rotor speed, used with kit 252489A1

1шт.

244564A1

HARNESS

- rotor speed, used with kit 252491A1

1шт.

244570A2

HARNESS

- rotor speed

1шт.

113971A1

SWITCH

- rotor reversing special

1шт.

113485A1

SPACER

- motor speed, 17 mm

2шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere

1шт.

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 178 mm (7 inch) long

6шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

3

495-81137

WASHER,13/32" x 1" x .224"

- flat, 13/32 x 1 x 15/64 inch

3шт.

4

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

- electric motor

1шт.

5

194338C1

GEAR

SHAFT - rotor gear

1шт.

6

38-31020

PIN,3.96mm OD x 31.75mm L, Coiled

1шт.

7

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

8

Q5024

KEY,3/16" Sq x 1", Par

1шт.

9

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

- gear shaft

2шт.

10

183227C2

SUPPORT

- motor

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

12

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

8шт.

13

231-5146

FLANGE NUT,3/8"-16

8шт.

17

188203C3

SUPPORT

- rotor adjusting, left-hand

1шт.

18

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

20

231-5146

FLANGE NUT,3/8"-16

6шт.

21

194336C2

SUPPORT

- rotor adjusting, RH

1шт.

23

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

194337C1

SPROCKET

- control, 8 tooth

1шт.

26

485-12512

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW - set, square head, 1/4 NC x 3/4 inch, cup point

2шт.

27

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex jam, 1/4 inch NC

2шт.

30

1302173C1

PAD

- motor support

2шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

NSS

NOT SOLD SEPARAT

CHAIN variable drive

1шт.

Use 31 links of No. 2040 chain; (1) connecting link 457113R91 and (2) offset links 457114R91.

1шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
