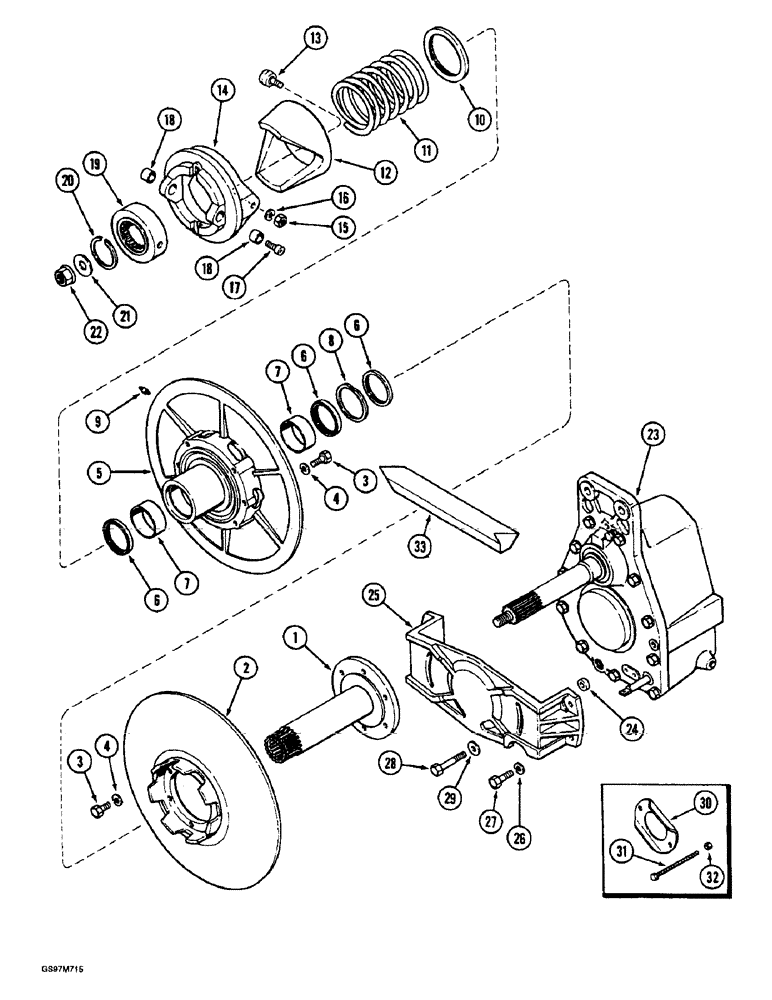

Запчасти Case IH 1660 (9B-06) - ROTOR DRIVE, PULLEY AND CAM, PRIOR TO P.I.N. JJC0026711 (14) - ROTOR, CONCANVES & SIEVE

1

193962C2

HUB

- fixed variable pulley

1шт.

2

185433C1

PULLEY

- fixed variable, 451 mm (17-3/4 inch) OD

1шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

12шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

5

185417C91

PULLEY ASSY.

PULLEY ASSEMBLY - adjustable variable, 451 mm (17-3/4 inch) OD, Includes: Ref. 6 - 9

1шт.

6

193965C91

SEAL

- pulley

3шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - pulley, order pulley assembly

2шт.

8

537602R1

RING

- pulley retaining

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

10

188210C91

CAM FOLLOWER

BEARING - thrust

1шт.

11

193936C2

SPRING

- rotor drive torque sensing

1шт.

12

185416C1

CAM

- rotor drive torque sensing

1шт.

13

193943C91

BEARING ASSY

BEARING - cam follower

2шт.

14

195247C91

YOKE

- torque sensing cam follower

1шт.

15

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

18

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

19

193938C1

HUB

- cam follower

1шт.

20

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- retaining

1шт.

21

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 57/64 x 1-7/8 x 7/32 inch, hardened

1шт.

22

1315288C1

FLANGE NUT

- hex, self-locking, special, 7/8 inch NC

1шт.

23

1315340C3

HOUSING ASSY.

HOUSING ASSEMBLY - rotor drive, parts list Figure 9B-12

1шт.

24

194077C1

SPACER

- gear housing

2шт.

25

194058C1

SUPPORT

- rear gear housing

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

27

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

28

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

29

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

30

186364C1

RETAINER

- torque sensing spring

1шт.

Used to service variable speed pulley.

1шт.

31

1319996C2

ROD

ROD - torque sensing spring removal

2шт.

32

425-106

NUT,3/8"-16, Cl 5

2шт.

33

193923C4

V-BELT,2134.68 mm L

Rotor variable drive 2134.68 mm L

1шт.
