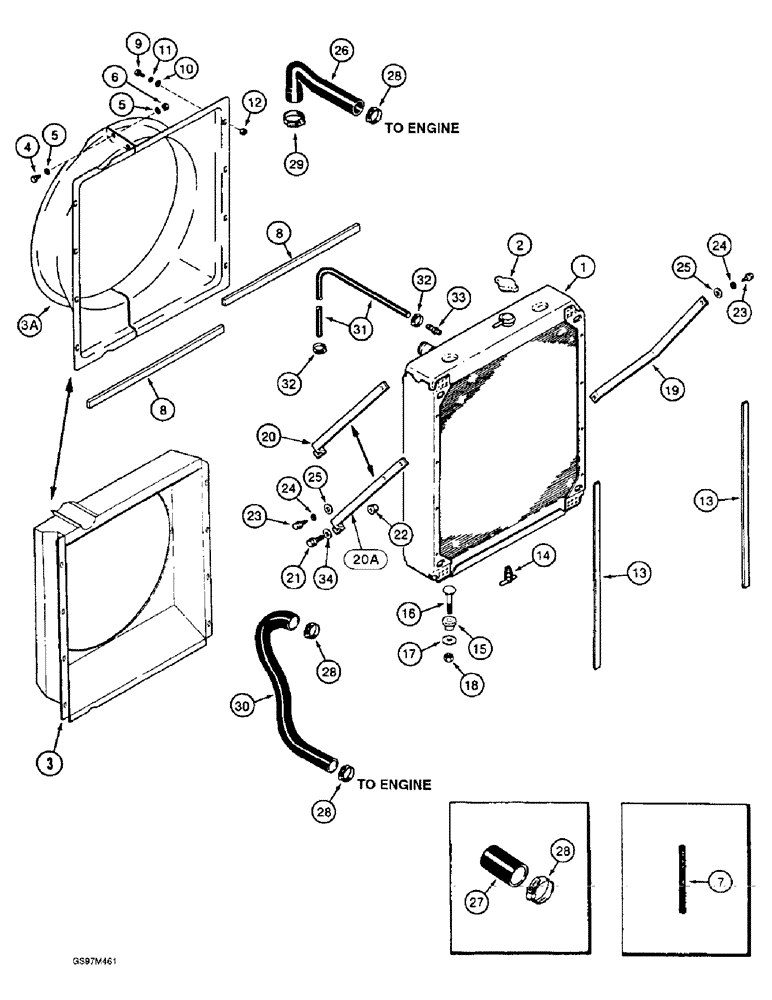

Запчасти Case IH 1660 (2-02) - RADIATOR AND ATTACHING PARTS (01) - ENGINE

1

A189067

RADIATOR

- engine cooling, models without cross flow cleaning system, includes cap A170241, item 2

1шт.

1

105943A2

RADIATOR - cooling system, models with cross flow cleaning system

1шт.

Ref. 1 - 105943A2 is the PRODUCTION part number. Use A189067 for service (7/12/99 Tech)

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

1979889C1

GUARD

SHROUD - fan, models without cross flow cleaning system, does not include items 4 - 6 (Replaces shroud 84545C2)

1шт.

3a

106201A2

SHROUD

ASSEMBLY - fan, models with cross flow cleaning system, Includes: Ref. 4 - 6

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

7

REF

INSTRUCTION

SEAL - radiator, 313 mm (12-5/16 inch) long, cut from bulk seal 1330108CX below

1шт.

8

REF

INSTRUCTION

SEAL - radiator to shroud, 787 mm (30-63/64 inch) long, cut from bulk seal 1974883C1 below

2шт.

9

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

8шт.

10

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

8шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

12

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16 inch NC

8шт.

13

NSS

NOT SOLD SEPARAT

SEAL - radiator to air chute, 875 mm (34-1/2 inch) long, cut from bulk seal 195917C1 below

1шт.

14

86982771

VALVE

- drain, 1/4 inch PT, drain cock

1шт.

15

R29799

SHOCK ABSORBER

INSULATOR - rubber

2шт.

16

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT - carriage, 7/16 NC x 2-1/4 inch

2шт.

17

495-81013

WASHER,.469" x 1 3/4" x .120"

4шт.

18

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

19

1329863C1

SUPPORT

- radiator, left-hand

1шт.

20

1347184C1

SUPPORT

- radiator, right hand, models without cross flow cleaning system (Replaces support 1329864C1)

1шт.

20a

1541868C1

SUPPORT

- radiator, right-hand, models with cross flow cleaning system

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

23

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

2шт.

26

84549C2

RADIATOR HOSE,50.40 mm ID, 56.00 mm ID x 400.00 mm

- Engine outlet (Replaces hose 1329878C1) 50.40 mm ID, 56.00 mm ID x 400.00 mm

1шт.

27

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

Straight, If used 50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

1шт.

28

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adj. (Replaces clamp 224910C1) 1.75/2.625 HD Worm, W/liner

3шт.

29

214-3248

HOSE CLAMP,57mm - 79mm

CLAMP, HOSE, , Adj. 2.25/3.125 HD Worm, W/liner

1шт.

30

1979382C2

HOSE

- engine inlet (Replaces hose 1329868C1)

1шт.

31

1960764C1

RADIATOR HOSE,9.50 mm ID x 560.00 mm, SAE 20R3

Radiator vent to engine, If used 9.50 mm ID x 560.00 mm, SAE 20R3

1шт.

32

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable #6, 0.44/0.78 Type M Worm

2шт.

33

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight, stem end 3/8" Hose X 1/4" NPTF Beaded

1шт.

34

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.

1974883C1

SEAL

- bulk, 15240 mm (600 inch) long

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 15240 mm (600 inch) long, sold by the foot

1шт.
