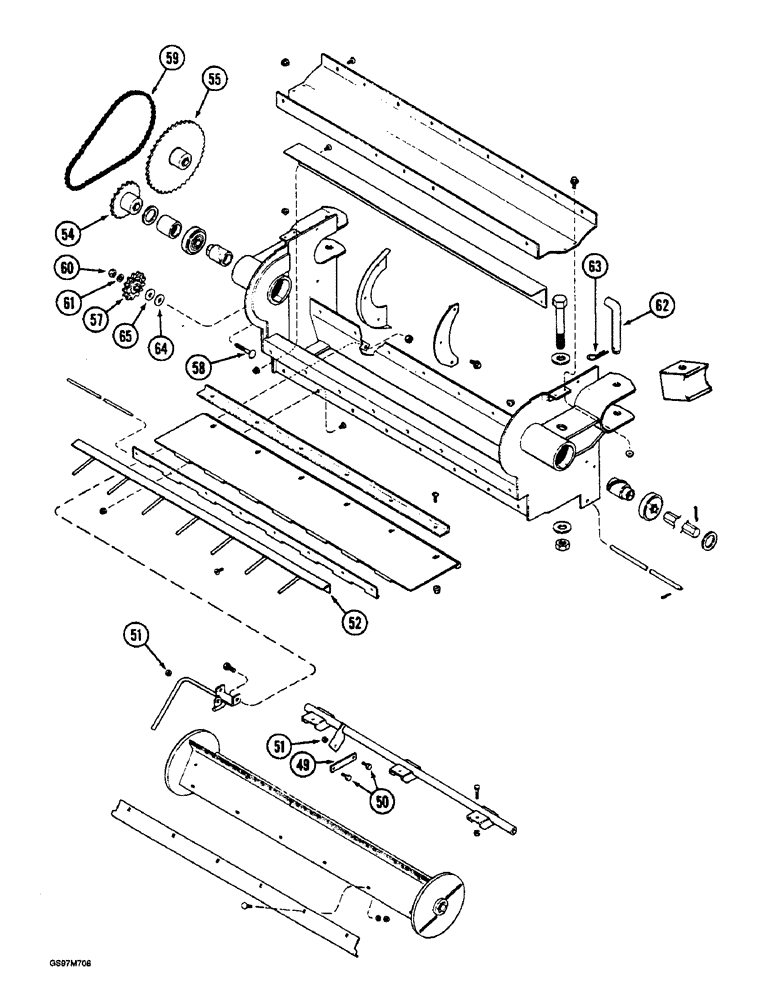

Запчасти Case IH 1660 (9A-40) - ROCK TRAP (CONTD) (13) - FEEDER

49

1320128C1

LINK

- connecting

2шт.

50

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

51

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

52

1320846C1

SUPPORT ASSY.

ANGLE - support

1шт.

54

1329719C2

SPROCKET

- beater driven, rock trap, 20 tooth

1шт.

54

1320095C3

DRIVE SPROCKET

SPROCKET - drive, 16 tooth

2шт.

55

1320110C3

SPROCKET

- beater driven, rock trap, 32 tooth

1шт.

57

629972R91

DRIVE SPROCKET,15T

SPROCKET - idler, 15 tooth

1шт.

58

433-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - carriage, 5/8 NC x 2-1/2 inch

1шт.

59

REF

INSTRUCTION

CHAIN ASSEMBLY - sprocket, Includes: link listed below

2шт.

Use 124 links of No. 60H chain and 1786D connecting link or use 124 links of 1979285C1 chrome chain and two connecting links 1329768C1.

1шт.

1329768C1

LINK,19.05mm Pitch

- connecting

1шт.

60

425-1010

NUT,5/8"-11, G5

1шт.

61

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

62

192533C2

ROD

- feeder pivot block

1шт.

63

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

1шт.

64

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch

1шт.

65

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

3шт.
