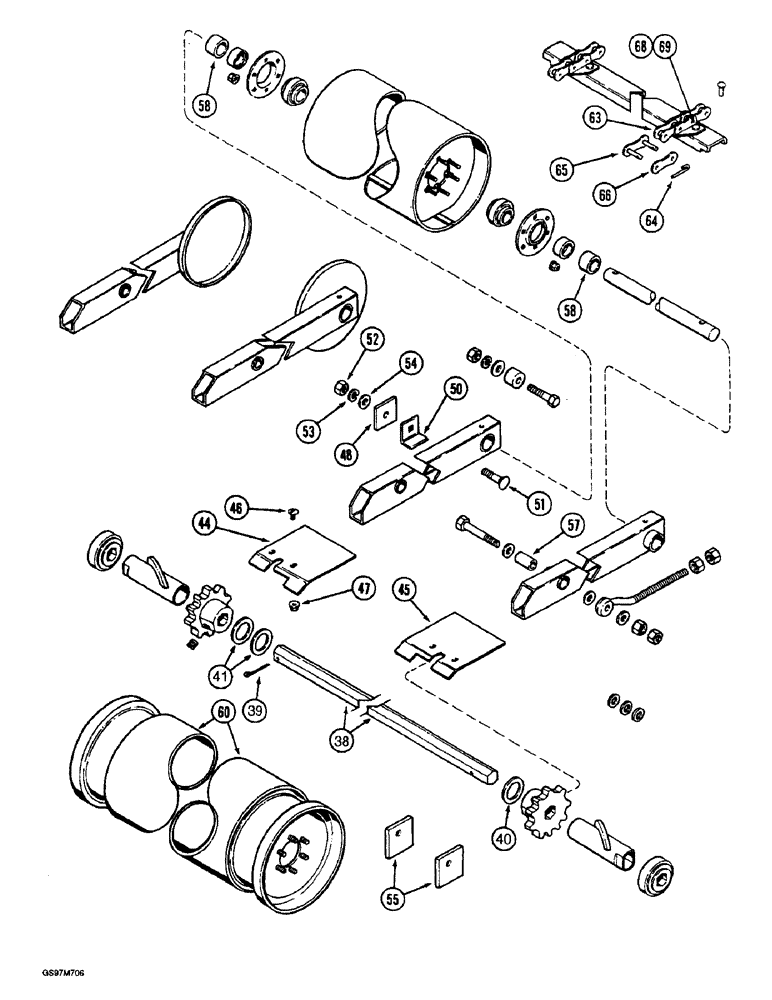

Запчасти Case IH 1660 (9A-36) - FEEDER, CONVEYOR (CONTD) (13) - FEEDER

38

1320160C3

SHAFT

- conveyor

1шт.

39

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

40

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 1/8 inch

1шт.

41

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

1300464C91

PACKAGE

KIT - stripper, feeder pivot, no longer available as a kit, order components, Includes: Ref. 44 - 47

1шт.

Stripper plates in kit have a welded wear bar.

1шт.

44

185818C1

STRIPPER ASSY.

STRIPPER - pivot, left-hand

1шт.

45

185819C1

STRIPPER ASSY.

STRIPPER - pivot, right-hand

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

47

231-5146

FLANGE NUT,3/8"-16

4шт.

48

187347C1

PLATE

BAR - upper stop adjusting

2шт.

50

1345418C2

BRACKET

ANGLE - stop bar, upper (Replaces angle 187364C2)

2шт.

51

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch

2шт.

52

425-1010

NUT,5/8"-11, G5

2шт.

53

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

54

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- square hole, 21/32 x 1-1/4 x 1/16 inch

2шт.

55

187225C1

BAR

- upper stop adjusting, with stone retarder

2шт.

57

187217C1

SPACER,7/8" Tube x 1 13/16"

- 7/8 x 1-13/16 inch

2шт.

58

11449P

SPACER,1 1/4" Pipe x 1/2"

- bearing, 1-1/4 x 1/2 inch

2шт.

60

1957439C3

ROLLER

- conveyor, with stone retarder

1шт.

63

1324281C1

LINK,A557, Links x 41.4mm = mm

LINK - A557 chain

1шт.

64

1329837C2

PIN,2.63mm OD

- S type, roller, A557 chain

1шт.

65

1324835C1

OFFSET LINK

LINK - offset, includes pin, A557 chain

1шт.

66

1324294C1

LINK,40.893mm Pitch

LINK - connecting, includes pin, A557 chain

1шт.

68

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

If used Hex, 3/8"-16 x 1", G8, Full Thd

1шт.

68

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, A557 chain, if used

1шт.

69

1306680C1

FLANGE NUT

NUT - hex flange, self-locking, special, 3/8 inch NC, A557 chain

1шт.
