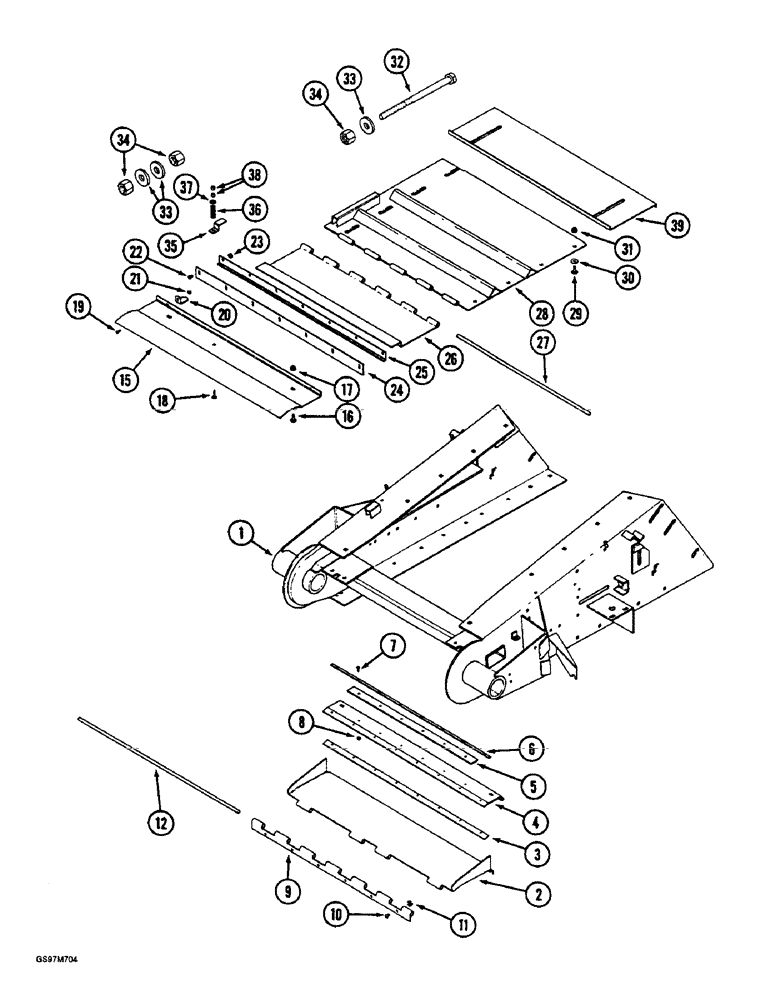

Запчасти Case IH 1660 (9A-32) - FEEDER, COVERS (13) - FEEDER

1

REF

INSTRUCTION

HOUSING - feeder, See Figure 9A-28

1шт.

2

242744A1

DOOR

- lower (Replaces door 193362C2)

1шт.

3

1319963C1

SEAL

SEAL - feeder bottom support

1шт.

4

1319961C1

SUPPORT

- bottom, feeder

1шт.

5

1319965C1

BAR

- spacer, support

1шт.

6

197429C1

SEALING STRIP

SEAL - door

1шт.

7

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

- machine, flat Phillips, No. 10 NC x 3/4 inch

6шт.

8

196922C1

LOCK NUT

- hex, self-locking, No. 10

6шт.

9

193364C2

HINGE

- door, feed plate

1шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

11

231-5146

FLANGE NUT,3/8"-16

6шт.

12

159012C1

ROD

- hinge

1шт.

15

197426C4

COVER

- upper, feeder

1шт.

16

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

2шт.

17

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

2шт.

18

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT - carriage, 3/8 NC x 2-1/4 inch, grade 2

1шт.

19

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

52шт.

20

1322144C1

ANGLE

- door stop

2шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

23

231-5146

FLANGE NUT,3/8"-16

7шт.

24

634204R2

SEAL,55mm W x 942.8mm L

SEAL - feeder, top

1шт.

25

197418C1

SUPPORT

ANGLE- Upper Seal Support

1шт.

26

180555C91

DOOR ASSY.

DOOR- feeder upper

1шт.

27

175906C1

ROD

- hinge, door

1шт.

28

1321431C2

SUPPORT

PANEL - hinged, feeder top, 1194 mm (47 inch) feeder

1шт.

28

186354A1

SHEET

PANEL - hinged, feeder top, 1384 mm (54-1/2 inch) feeder (Replaces panel 1321432C2)

1шт.

29

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 8

8шт.

30

195-81030

WASHER

- flat, 17/32 x 1-1/2 x 3/16 inch

8шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

4шт.

32

1321504C1

SCREW,440mm L, W/ 3/4" - 10 Nut

BOLT - adjusting, level (Replaces bolt 1321395C1)

1шт.

33

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

4шт.

34

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

3шт.

35

184645C1

CLIP

- latch, door

1шт.

36

7422T

SPRING

- latch, door

1шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.

39

1321638C1

COVER

- upper front

1шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

7шт.
