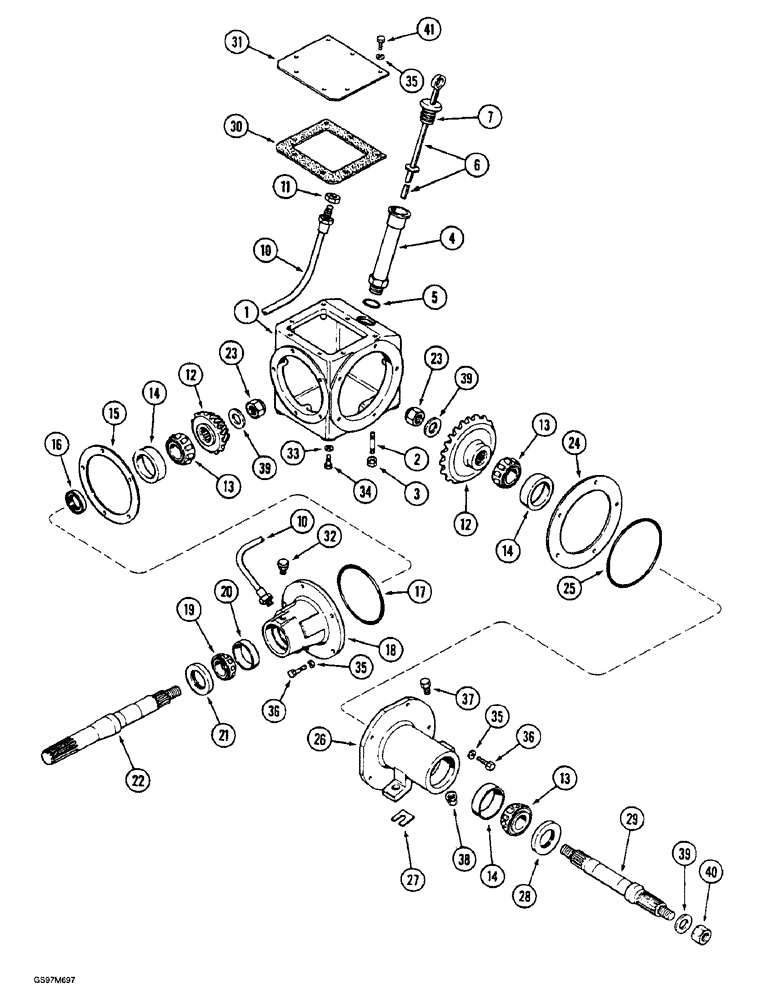

Запчасти Case IH 1660 (9A-18) - FEEDER, FEEDER DRIVE AND FAN GEAR HOUSING (13) - FEEDER

1

191388C1

CASE

HOUSING - gear

1шт.

2

188126

PIPE,Nipple, 3/8" NPT x 2"

- drain

1шт.

3

144164

O-RING

- drain pipe

1шт.

4

195429C1

TUBE

- oil gauge

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

6

195319C91

GAUGE ASSY.

GAUGE ASSEMBLY - oil, Includes: Ref. 7

1шт.

7

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

10

188589C91

HOSE

- bank lube, 559 mm (22 inch) long

1шт.

11

F53473

LOCK NUT,1/8-27 NPSM

- special, 1/8-27 NPSM

1шт.

12

1315597C1

GEAR SET

- drive, 18 and 31 tooth (Replaces gear 191285C1)

1шт.

13

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

BEARING - tapered roller, 1-3/8 inch ID

3шт.

14

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

BEARING CUP - Tapered roller, 3" OD

3шт.

195484C2

SHIM KIT

KIT - shim, rear housing, Includes: Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 195484C2

4шт.

15

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, order kit 195484C2

4шт.

15

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, order kit 195484C2

2шт.

16

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

- oil, input shaft inner

1шт.

17

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

-250, 70 Duro, 4.984" ID x .139 Thk

1шт.

18

191245C2

HUB

- bell, rear

1шт.

19

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - tapered roller, 1-3/8 inch ID (Replaces bearing G57452)

1шт.

20

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

- Tapered roller (Replaces cup G57451)

1шт.

21

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

- oil, input shaft outer

1шт.

22

191396C1

SHAFT

- input

1шт.

23

195428C1

LOCK NUT

- input and output shaft

2шт.

195485C1

SHIM KIT

KIT - shim, right-hand housing, Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 195485C1

2шт.

24

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, order kit 195485C1

2шт.

24

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, order kit 195485C1

2шт.

25

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

26

191248C1

HUB

- bell, right-hand bell

1шт.

27

935915R1

SHIM,33.02mm OD x 0.38mm Thk

- 0.015 inch thick, right-hand bell housing

8шт.

28

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

- oil, output shaft

1шт.

29

191384C1

SHAFT

- output

1шт.

30

191397C2

GASKET

- cover

1шт.

31

191249C1

COVER

- gear housing

1шт.

32

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

1шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

34

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

35

492-11038

LOCK WASHER,3/8"

17шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

10шт.

37

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

39

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

- flat, 29/32 x 2-3/64 x 1 1/64 inch

1шт.

40

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF

1шт.

41

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.
