(1-36) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS

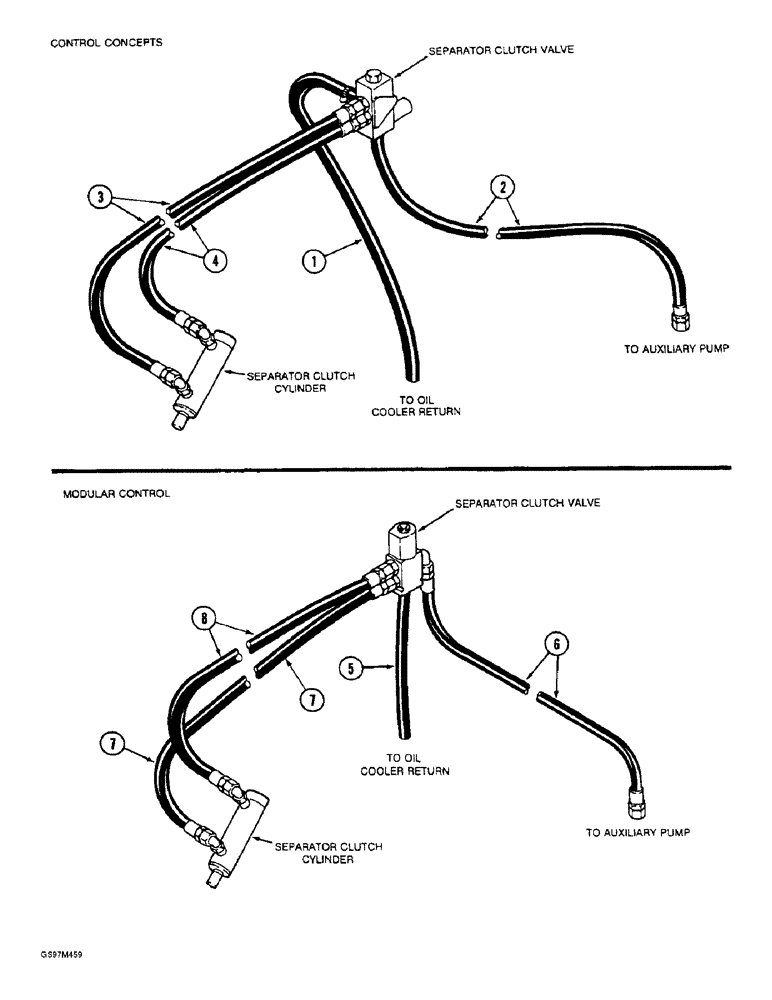

Запчасти Case IH 1660 (1-36) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS (00) - PICTORIAL INDEX

Схема запчастей Case IH 1660 - (1-36) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS (00) - PICTORIAL INDEX
6
5
1
7
4
2
8
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Separator Clutch Return Hose, 8-111

1шт.

2

Separator Clutch Pressure Hose, 8-111

1шт.

3

Separator Clutch Disengage Hose, 8-111

1шт.

4

Separator Clutch Engage Hose, 8-111

1шт.

5

Separator Clutch Return Hose, 8-111, modular control

1шт.

6

Separator Clutch Pressure Hose, 8-111, modular control

1шт.

7

Separator Clutch Disengage Hose, 8-111, modular control

1шт.

8

Separator Clutch Engage Hose, 8-111, modular control

1шт.
