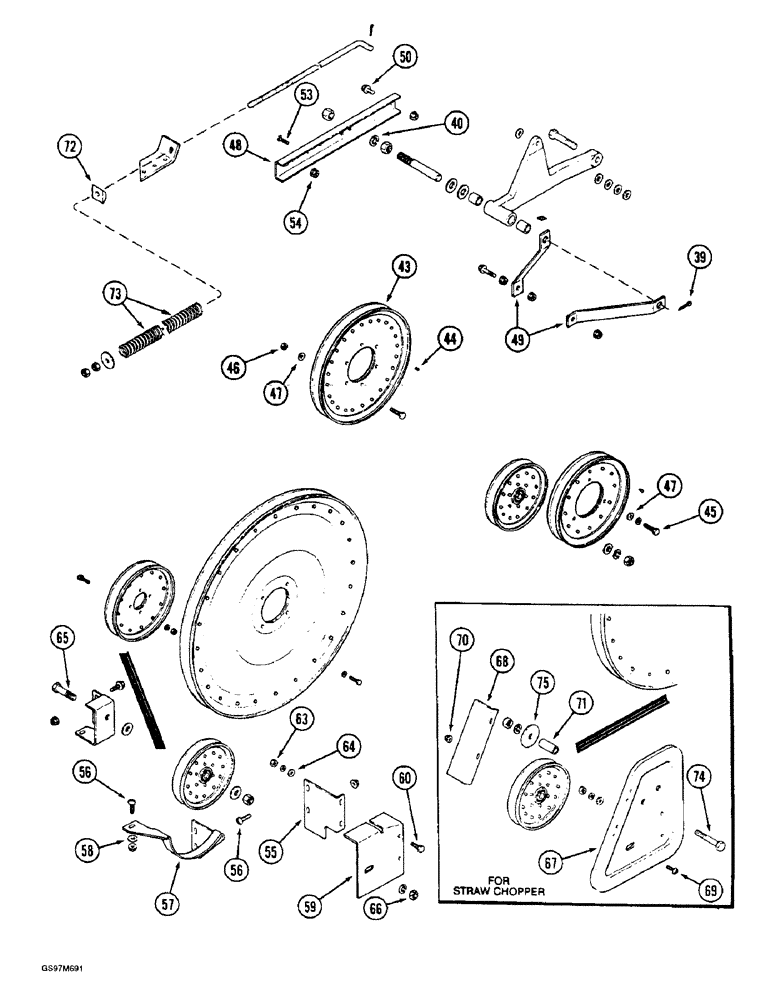

Запчасти Case IH 1660 (9A-06) - BELT DRIVE, RIGHT-HAND SIDE (CONTD) (13) - FEEDER

39

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

40

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

183325C1

PULLEY

ASSEMBLY - driven, 330 mm (13 inch) OD, Includes: Ref. 44

1шт.

44

104235

RIVET,FH, 3/16" x 1/2"

24шт.

45

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

3шт.

46

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

47

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

6шт.

48

186588C2

CHANNEL

- pivot arm support

1шт.

49

182676C2

SUPPORT

- elevator pivot

2шт.

50

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

54

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

55

1302352C2

SUPPORT

GUIDE - upper, elevator belt

1шт.

56

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

57

1302068C2

GUIDE

- lower, elevator belt

1шт.

58

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

3шт.

59

1302350C1

SHIELD

elevator fixed idler

1шт.

Combine without straw chopper.

1шт.

60

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

63

425-106

NUT,3/8"-16, Cl 5

4шт.

64

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

65

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

1шт.

66

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

1шт.

67

1302353C1

GUARD

SHIELD elevator fixed idler

1шт.

Combine with straw chopper.

1шт.

68

1302351C1

DEFLECTOR

SHIELD elevator rear shield

1шт.

Combine with straw chopper.

1шт.

69

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

70

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

71

564737R1

SPACER,7/8" Tube x 2 1/16"

21/32 x 7/8 x 2-1/16 inch

1шт.

Combine with straw chopper.

1шт.

72

194652C1

PIVOT

- rod

1шт.

73

155311C1

SPRING

- arm rod

1шт.

74

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

75

534939R1

WASHER

- flat, 21/32 x 2-1/2 x 7/64 inch, no longer available

1шт.

53

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

1шт.
