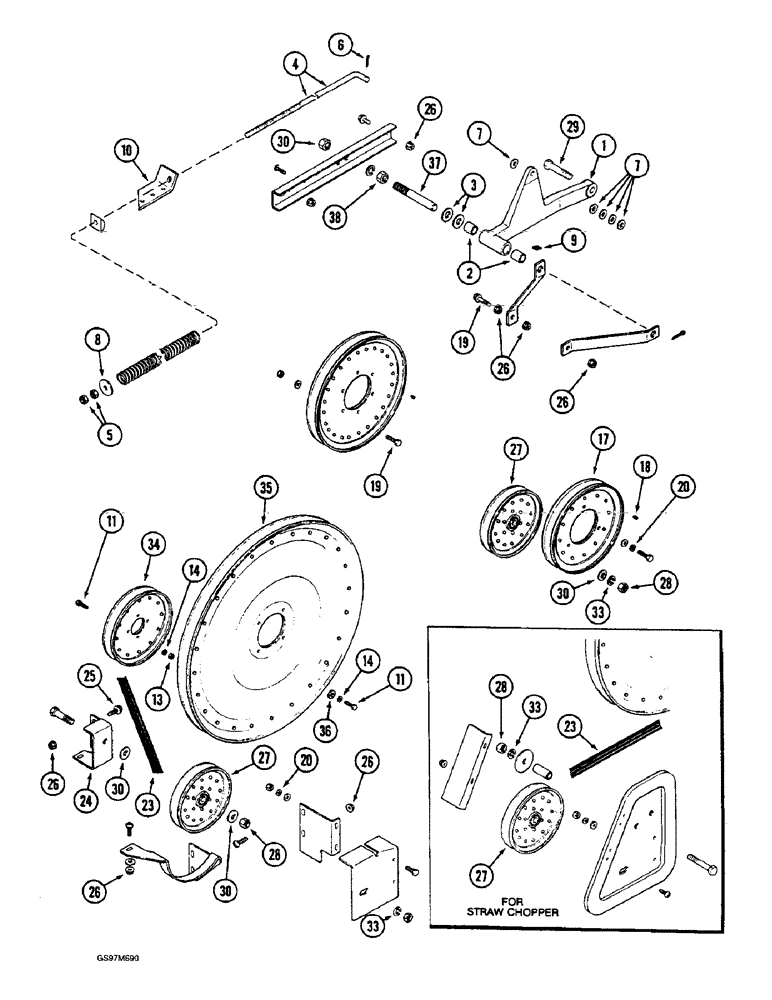

Запчасти Case IH 1660 (9A-04) - BELT DRIVE, RIGHT-HAND SIDE (13) - FEEDER

1

193447C91

ARM

LEVER ASSEMBLY - elevator jackshaft idler, Includes: Ref. 2

1шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

- lever

2шт.

3

495-11081

WASHER,3/4", SAE

1шт.

4

191531C2

ROD

- idler lever

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

8

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

10

1315483C1

BRACKET

SUPPORT - elevator drive rod

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

11шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

7шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

17

193948C1

PULLEY,39.61mm W x 254mm OD

ASSEMBLY - drive, 248 mm (9-3/4 inch) OD, Includes: Ref. 18

1шт.

18

47-49

RIVET,FH, 1/4" x 9/16"

- flat head solid, 1/4 x 9/16 inch

16шт.

19

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

3шт.

20

492-11038

LOCK WASHER,3/8"

7шт.

23

181055C1

BELT,0.879" W x 200.99" L

V-BELT , Drive, Over center 0.879" W x 200.99" L

1шт.

Combine with straw chopper.

1шт.

23

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Drive, Over center 0.879" W x 255.99" L

1шт.

Combine with discharge beater.

1шт.

24

188253C3

SUPPORT

- elevator drive fixed idler

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

4шт.

26

231-5146

FLANGE NUT,3/8"-16

12шт.

27

673214R91

PULLEY

- 186 mm (7-5/16 inch) OD, elevator drive and fixed idler

2шт.

28

425-1010

NUT,5/8"-11, G5

3шт.

29

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

30

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

5шт.

33

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

34

195161C1

PULLEY

- drive, 213 mm (8-3/8 inch) OD

1шт.

35

1979876C1

PULLEY

- shaker shaft driven, 610 mm (24 inch) OD, if used

1шт.

35

193682C1

PULLEY

- driven, 635 mm (25 inch) OD, if used

1шт.

36

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

37

188298C2

STUD

PIN - pivot

1шт.

38

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.
