Запчасти Case IH 1660 (9A-02) - BELT DRIVE, FAN JACKSHAFT (13) - FEEDER

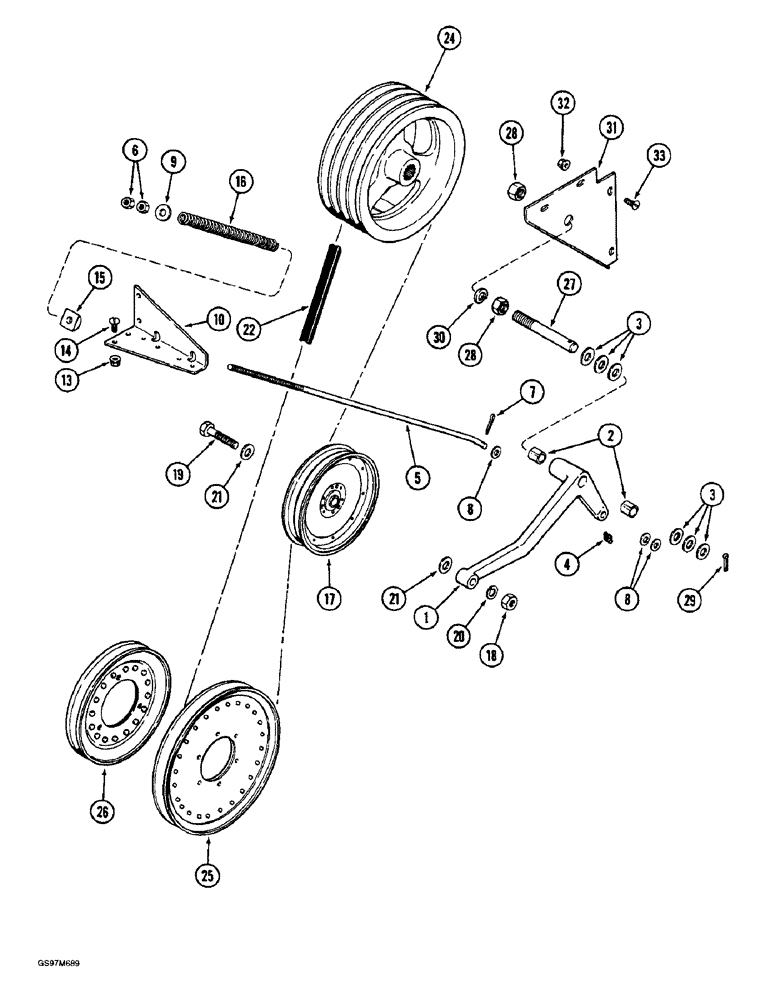

Схема запчастей Case IH 1660 - (9A-02) - BELT DRIVE, FAN JACKSHAFT (13) - FEEDER
29
9
32
30
6
8
5
28
8
19
3
22
15
28
21
20
25
31
13
7
27
14
10
1
16
3
17
4
21
26
2
24
33
18

Артикул

Название

Примечание

Количество

1

191529C91

LEVER ASSY.

LEVER ASSEMBLY - fan jackshaft drive, Includes: Ref. 2

1шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

- lever

2шт.

3

495-11081

WASHER,3/4", SAE

9шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

174520C2

ROD

- jackshaft drive lever

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

9

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

1шт.

10

191777C2

SUPPORT

- drive rod

1шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

15

194652C1

PIVOT

- rod

1шт.

16

155311C1

SPRING

- arm rod

1шт.

17

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

- drive, 203 mm (8 inch) OD, fan jackshaft idler

1шт.

18

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

1шт.

19

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

22

191305C1

V-BELT,0.879" W x 112.19" L

Drive, Over center 0.879" W x 112.19" L

1шт.

24

191603C2

PULLEY

- drive, 305 mm (12 inch) OD

1шт.

25

183325C1

PULLEY

- driven, 330 mm (13 inch) OD

1шт.

26

193948C1

PULLEY,39.61mm W x 254mm OD

- drive, 248 mm (9-3/4 inch) OD

1шт.

27

188298C2

STUD

PIN - pivot

1шт.

28

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

29

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

30

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

31

192011C1

SUPPORT

- idler drive

1шт.

32

231-5146

FLANGE NUT,3/8"-16

2шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.

33

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.

Выбрано товаров: 30
