(9H-26) - OPERATORS PLATFORM EXTENSION

Запчасти Case IH 1660 (9H-26) - OPERATORS PLATFORM EXTENSION (12) - CHASSIS

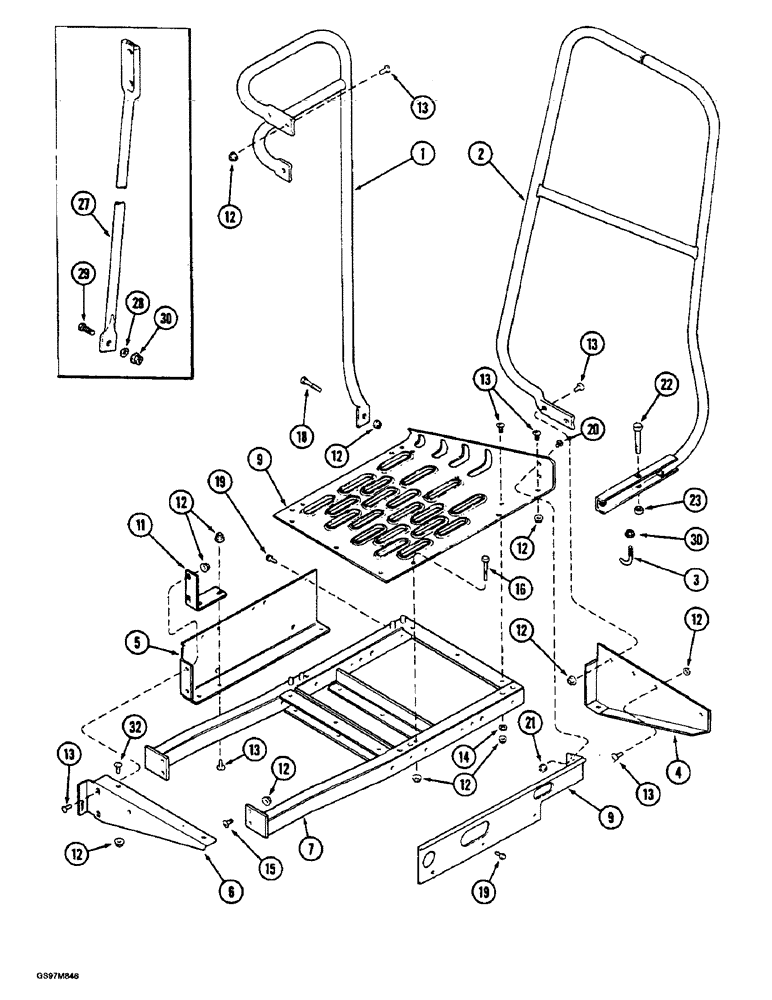

Схема запчастей Case IH 1660 - (9H-26) - OPERATORS PLATFORM EXTENSION (12) - CHASSIS
13
13
1
12
7
11
16
23
14
19
15
13
6
12
13
5
29
22
4
32
3
16
9
13
19
13
28
9
21
12
20
12
30
12
12
30
2
27
12
12
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

196642C2

RAIL

- hand, platform extension, rear

1шт.

2

198548C2

RAIL

- hand, platform extension, front

1шт.

3

196967C2

BOLT,3/8" - 16 x 2"

- front hand rail hook, special

1шт.

4

198541C3

SUPPORT ASSY.

SUPPORT - platform extension, front

1шт.

5

198543C3

SUPPORT

- platform extension, left-hand

1шт.

6

1338309C2

SUPPORT

- operators platform extension

1шт.

7

198535C4

SUPPORT

- extension

1шт.

8

198547C3

LARGE PLATE

TREAD - platform extension

1шт.

9

198542C3

SUPPORT

- extension, right-hand

1шт.

11

183761C1

ANGLE

- rear extension

1шт.

12

231-5146

FLANGE NUT,3/8"-16

25шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

18шт.

14

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

3шт.

16

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

6шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

22

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

1шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

27

184395C1

STEM

SUPPORT - ladder platform extension

1шт.

Extra wide and dual axle.

1шт.

28

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

- flat, 17/32 x 2 x 7/64 inch

3шт.

29

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

15

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.

32

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

1шт.
