Заказать запчасти

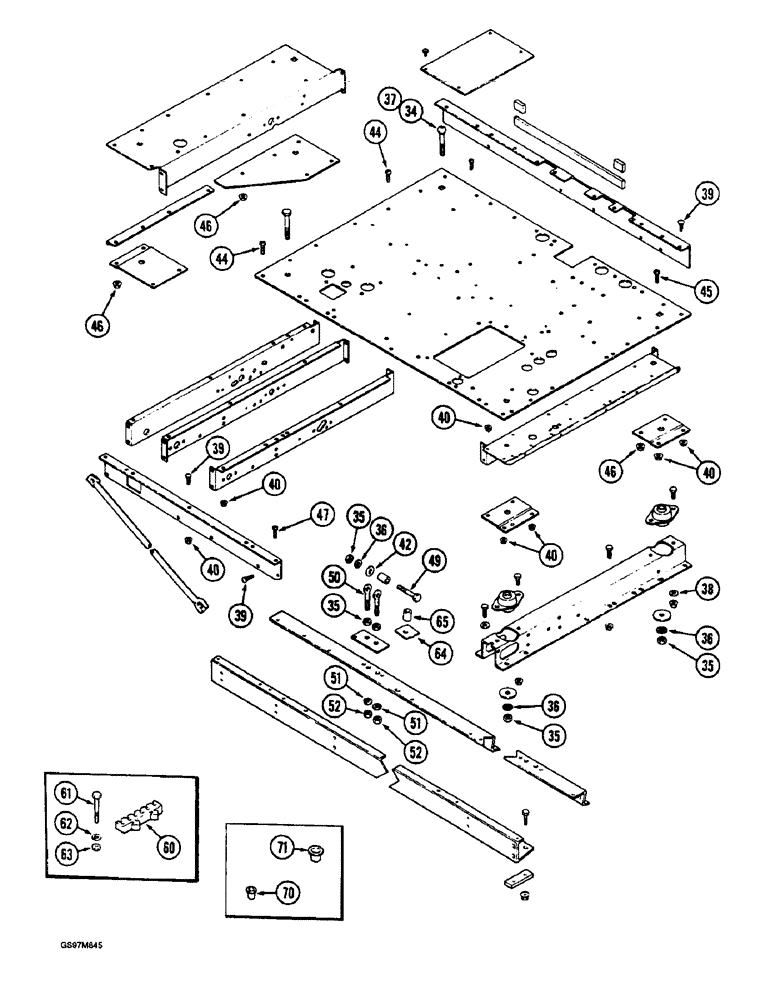

Запчасти Case IH 1660 (9H-24) - OPERATORS PLATFORM (CONTD) (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
34
413-1280
BOLT,Hex, 3/4" - 10 x 5", Gr 5
- hex, 3/4 NC x 5 inch
2шт.
35
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC
8шт.
36
492-11075
LOCK WASHER,3/4"
3/4"
4шт.
37
413-1280
BOLT,Hex, 3/4" - 10 x 5", Gr 5
- hex, 3/4 NC x 5 inch
2шт.
38
495-81085
WASHER,1.16" ID x 1.62" OD x 0.06" Thk
- flat, 1-5/32 x 1-5/8 x 3/64 inch
4шт.
39
434-58
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd
20шт.
40
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
31шт.
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
- hex, 1/2 NC x 3 inch
4шт.
42
496-21053
WASHER,17/32" x 1 1/16" x .134"
- flat, 17/32 x 1-1/16 x 1/8 inch, hardened
4шт.
44
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch
2шт.
46
231-5146
FLANGE NUT,3/8"-16
7шт.
47
477-73116
SERRATED SCREW,Truss HD, 5/16" - 18 x 1"
BOLT - serrated slotted truss head, 5/16 NC x 1 inch
1шт.
49
326-1268
BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 8
(Replaces bolt 25754R1) Hex, 3/4"-10 x 4 1/4", G8
2шт.
50
165648C2
BOLT,3/4" - 10 x 4 1/2"
EYEBOLT - leveling
4шт.
51
492-11075
LOCK WASHER,3/4"
3/4"
4шт.
52
425-1412
JAM NUT,Jam, 3/4"-10, G5
- hex jam, 3/4 inch NC
4шт.
60
3102155R1
HOLDER
- shear bolt
1шт.
61
424-432
BOLT,Hex, 1/4" - 20 x 2", Gr 2
- hex, 1/4 NC x 2 inch, grade 2
3шт.
62
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
63
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
3шт.
64
1994748C1
SHIM
- deck mount
6шт.
65
1994749C1
SPACER
- 3/4 x 2-23/64 inch
2шт.
70
1345349C1
PLUG,Cap, .240" OD
- plastic, 7/32 inch hole
4шт.
71
1345351C1
PLUG,Cap, .428" OD
- 11/32 inch hole
3шт.
45
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
BOLT - serrated slotted truss head, 3/8 NC x 1 inch
5шт.
Выбрано товаров: 27
