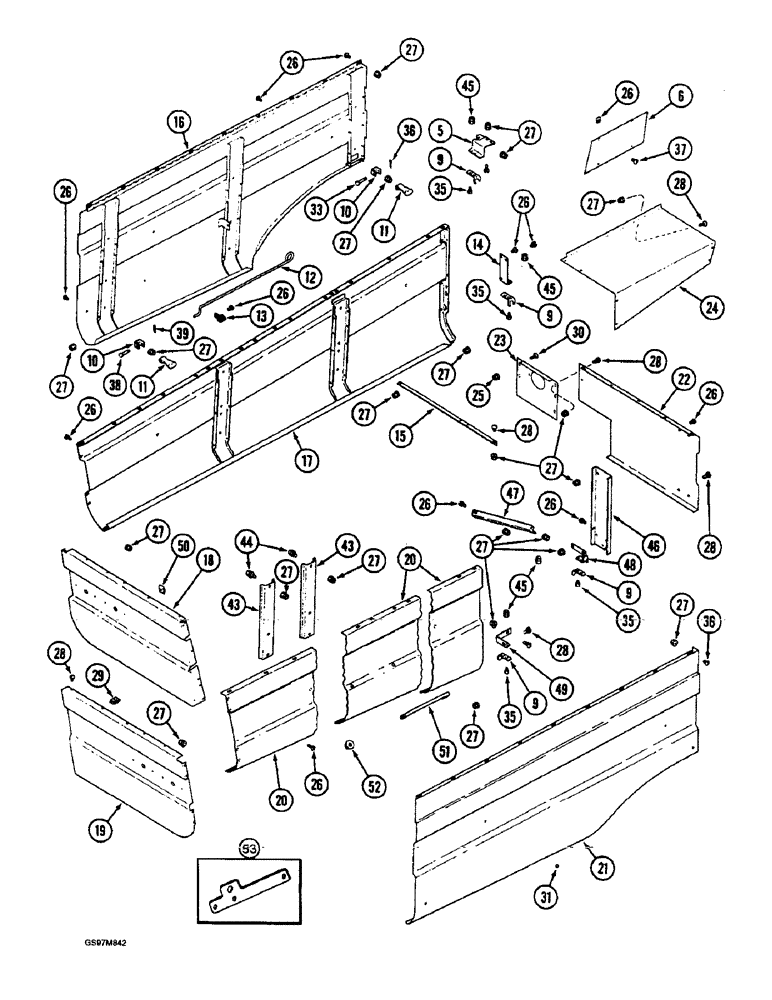

Запчасти Case IH 1660 (9H-18) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS

5

182834C2

SUPPORT

- latch, left-hand front

1шт.

6

188160C2

SUPPORT ASSY.

PLATE - cab, lower right-hand front

1шт.

9

L105124

LATCH HOOK

HOOK - latch (Replaces hook 764071C1)

4шт.

10

188103C1

BRACKET

- hood anchor

4шт.

11

494307C1

LATCH

HOOK - hold down, latch

4шт.

12

183444C1

ROD

- tank lower door, left-hand

1шт.

12

183242C1

ROD

- tank lower door, right-hand

1шт.

13

363660R1

CLIP

- trim panel brace

2шт.

14

188156C2

SUPPORT

- trim rear catch

1шт.

15

194604C3

ANGLE BAR

ANGLE - shield support

1шт.

16

186789C1

SHIELD

SUPPORT - grain tank trim, left-hand front, no longer available, order support 139776A3, item 16 and support 184186A1, item 53

1шт.

16

139776A3

DOOR ASSY.

SUPPORT - grain tank, left-hand front, also order support 184186A1, item 53

1шт.

17

193733C3

PANEL

SHIELD - rear trim, left-hand

1шт.

18

104148A3

SUPPORT

- tail lamp, left-hand (Replaces support 193811C4)

1шт.

19

193812C6

SHEET

SUPPORT - tail lamp, right-hand

1шт.

20

193734C7

PANEL

SHIELD - rear trim, right-hand

1шт.

21

188152C4

HOOD

SUPPORT - grain tank trim, right-hand front

1шт.

Prior to P.I.N. JJC0039550.

1шт.

21

186790C1

SUPPORT

- grain tank trim, right-hand front, no longer available, order support P/N 139777A3, Ref 21 and support P/N 184186A1, Ref.53

1шт.

P.I.N. JJC0039550 and after.

1шт.

21

139777A3

HOOD

SUPPORT - grain tank, right-hand front, also order support 184186A1, item 53

1шт.

22

193151C1

SUPPORT

- lower, left-hand front

1шт.

Prior to P.I.N. JJC0039550.

1шт.

22

1346947C2

SHEET ASSY.

SUPPORT - lower, right-hand front

1шт.

P.I.N. JJC0039550 and after.

1шт.

23

194452C2

SUPPORT

- gear housing front

1шт.

24

193443C2

SUPPORT

- feeder drive, upper

1шт.

25

231-5146

FLANGE NUT,3/8"-16

8шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

63шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

100шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

33шт.

29

488837C1

SPRING NUT

- speed, 5/16 inch

6шт.

31

147483C1

PLUG

- button

8шт.

35

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

8шт.

36

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

9шт.

37

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

3шт.

38

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

4шт.

39

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

43

1319563C1

SUPPORT

- handle

2шт.

44

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

45

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

46

194640C3

CONDUIT

SUPPORT - shield, right-hand front

1шт.

47

194639C2

ANGLE

- right-hand front shield support

1шт.

48

1345118C1

SUPPORT

BRACKET - front right-hand latch

1шт.

49

188097C1

SUPPORT

BRACKET - rear right-hand latch

1шт.

50

150100C1

SPRING NUT

- Tinnerman, special, U-type

3шт.

51

1251832C2

HANDLE

- assist

1шт.

52

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

53

184186A1

SUPPORT

- prop rod

1шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
