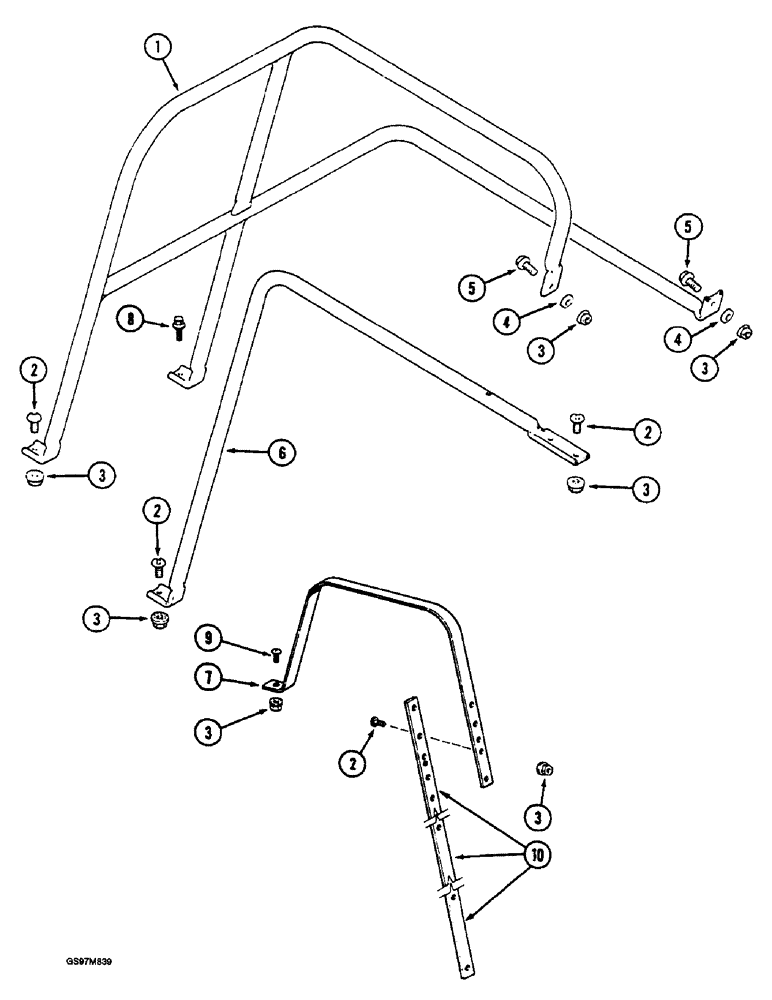

Запчасти Case IH 1660 (9H-12) - SERVICE DECK HAND RAILS (12) - CHASSIS

1

193089C2

GRAB RAIL

RAIL - hand, service deck, left-hand

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

7шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

4

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

2шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

6

1968586C1

RAIL ASSY.

RAIL - service deck, right-hand

1шт.

7

1338059C2

RAIL

- service deck to grain tank

1шт.

8

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

9

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

10

1338058C3

BAR

- engine deck support

1шт.
