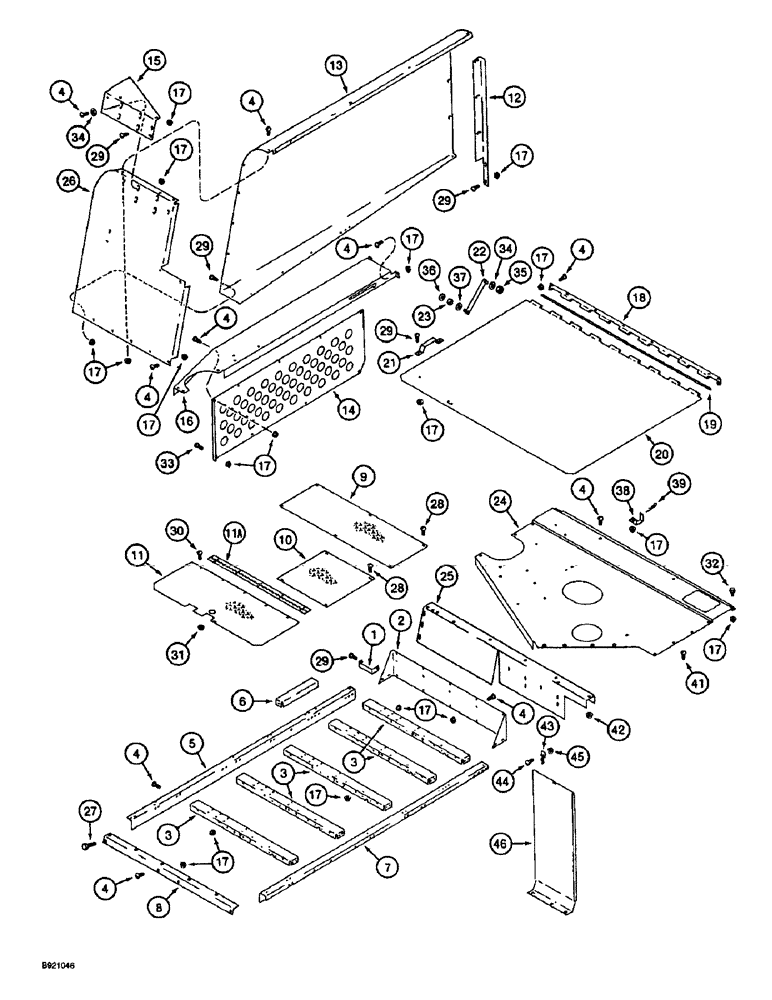

Запчасти Case IH 1660 (9H-04) - ENGINE SHIELD AND SERVICE DECK, MODELS WITH CROSS FLOW CLEANING SYSTEM (12) - CHASSIS

1

188419C1

CHANNEL

BRACKET - grain tank rear upper left-hand

1шт.

2

193435C3

SUPPORT

- engine service deck

1шт.

3

192959C6

SUPPORT

- deck

5шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4" (Replaces bolt 632227R1)

1шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

5

188368C4

ANGLE

BRACKET - left-hand deck support

1шт.

6

1979830C1

SUPPORT

- deck

1шт.

7

192960C7

ANGLE BAR

SUPPORT - deck, right-hand

1шт.

8

193146C3

ANGLE

- engine deck rear support

1шт.

9

1979874C1

PLATE

- engine compartment front

1шт.

10

1979827C2

PLATE

- engine compartment

1шт.

11

1977155C2

DOOR

- service deck

1шт.

11a

186695C1

HINGE

- service deck door

1шт.

12

188377C1

ANGLE

- shield stiffener, left-hand upper

1шт.

13

1347060C2

SUPPORT

- rear upper left-hand trim

1шт.

14

1302703C2

SHEET ASSY.

PLATE - rotor cover to service deck

1шт.

15

1330481C2

SUPPORT

- LH Rear, Upper shield

1шт.

16

1541854C3

SUPPORT

- door and hood

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

115шт.

18

194477C2

HINGE

- rotor cover door

1шт.

19

194478C1

ROD

- rotor door hinge

1шт.

20

186197C93

TRAP DOOR

DOOR - engine and rotor drive cover

1шт.

21

160638C1

HANDLE

- rotor door

1шт.

22

1302413C1

PROP

LINK - door hold up

1шт.

23

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch tube

1шт.

24

1541839C4

SUPPORT

- top cover rear

1шт.

25

1541955C4

SUPPORT

- air cleaner

1шт.

26

1347130C1

PROTECTION PLATE

SUPPORT - engine, left-hand rear

1шт.

27

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

28

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, self-tapping, 1/4 NC x 1/2 inch

20шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch (Replaces bolt 632226R1)

29шт.

30

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch (Replaces bolt 937059R1)

18шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

18шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch (Replaces bolt 161945C1)

3шт.

34

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

35

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

2шт.

36

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

37

567532R1

WASHER

- flat, 21/64 x 1/2 x 5/32 inch

1шт.

38

1979316C3

SUPPORT

- engine compartment door

1шт.

39

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

40

D55216

PAD,2" x 9"

STRIP - anti-skid, not shown

10шт.

41

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch (Replaces screw 632226R1)

2шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

2шт.

43

167800C1

CLIP

LATCH - door

2шт.

44

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

45

231-51409

SERRATED NUT,Flg, USR, #10-24

(Replaces nut 174097C1) Flg, USR, #10-24

2шт.

46

1977286C3

SUPPORT

- air shield

1шт.
