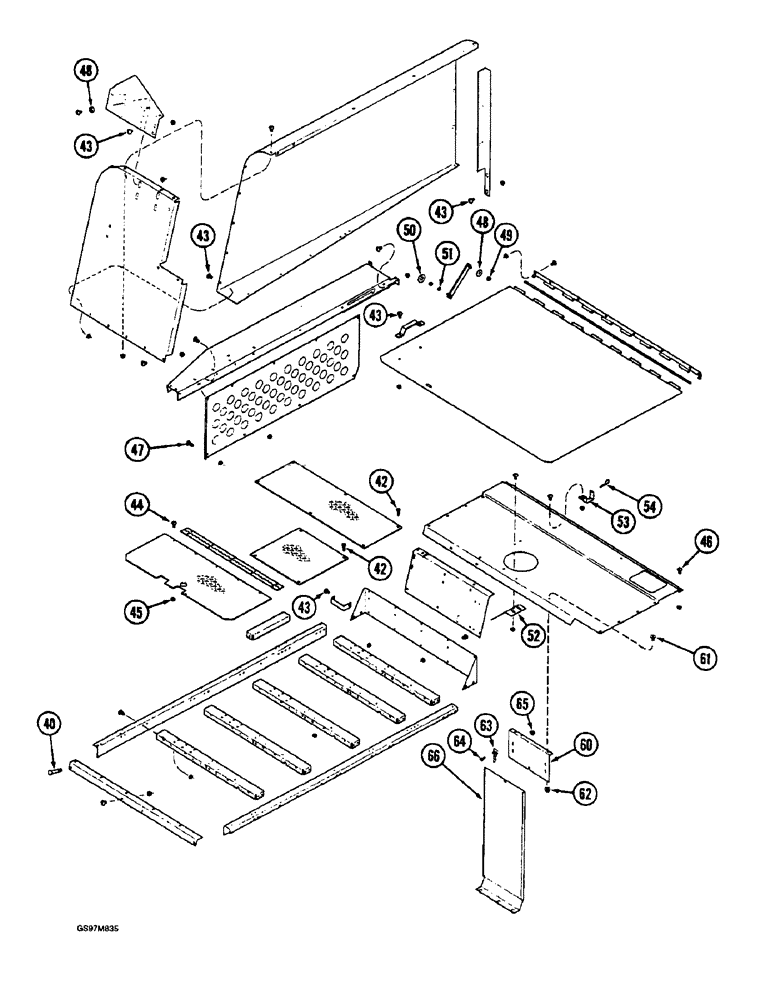

Запчасти Case IH 1660 (9H-03A) - ENGINE SHIELD AND SERVICE DECK, MODELS WITHOUT CROSS FLOW CLEANING SYSTEM (CONTD) (12) - CHASSIS

40

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

42

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

20шт.

43

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

29шт.

44

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

18шт.

45

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

46

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

47

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

3шт.

48

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

49

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

2шт.

50

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

51

567532R1

WASHER

- flat, special, 21/64 x 1/2 x 5/32 inch

1шт.

52

1979353C1

DEFLECTOR

- air

1шт.

53

1979316C2

SUPPORT

- engine compartment door

1шт.

54

480523R1

HAIR PIN COTTER

1шт.

D55216

PAD,2" x 9"

PAD - anti-skid

10шт.

60

1970187C3

ANGLE

SUPPORT - air shield

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

62

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

63

167800C1

CLIP

- door retaining clip

2шт.

64

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

65

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

66

1977286C3

SUPPORT

- air shield

1шт.
