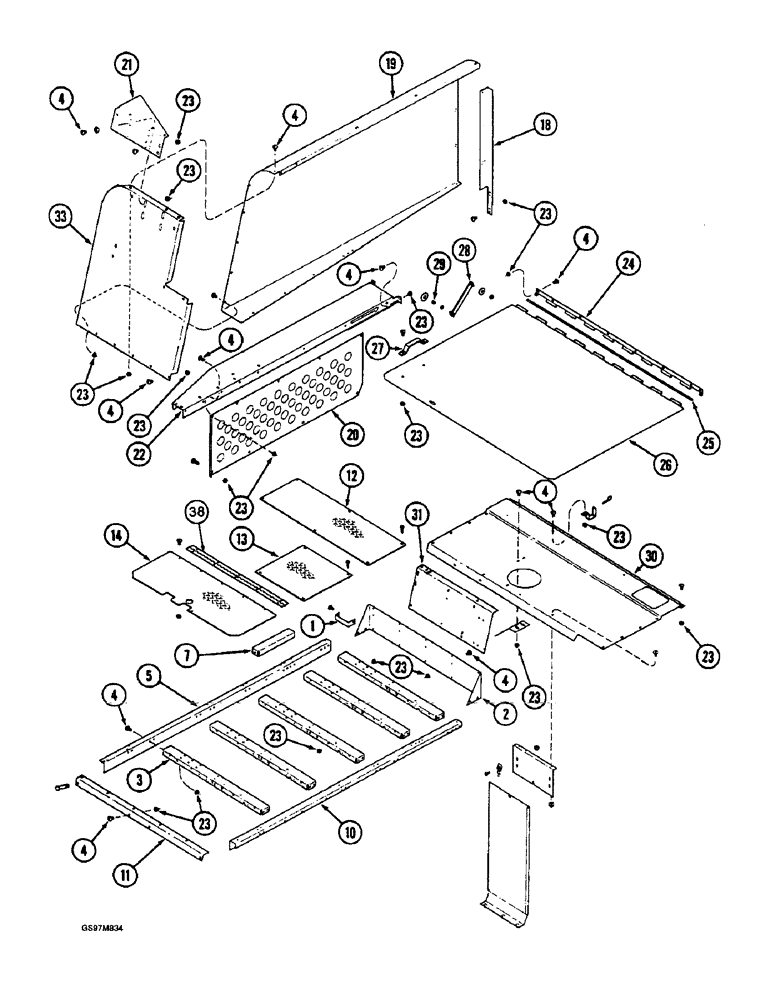

Запчасти Case IH 1660 (9H-02) - ENGINE SHIELD AND SERVICE DECK, MODELS WITHOUT CROSS FLOW CLEANING SYSTEM (12) - CHASSIS

1

188419C1

CHANNEL

BRACKET - grain tank, upper left-hand rear

1шт.

2

193435C3

SUPPORT

- engine service deck

1шт.

3

192959C6

SUPPORT

- deck

5шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

69шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

5

188368C4

ANGLE

BRACKET - deck support, left-hand

1шт.

7

194461C1

SUPPORT

- deck, prior to P.I.N. JJC0103800

1шт.

7

1979830C1

SUPPORT

- deck, P.I.N. JJC0103800 and after

1шт.

10

192960C7

ANGLE BAR

SUPPORT - deck, right-hand

1шт.

11

193146C4

ANGLE

- engine deck, rear support

1шт.

12

194456C2

PLATE

- engine compartment, front, prior to P.I.N. JJC0103800

1шт.

12

1979874C1

PLATE

- engine compartment, front, P.I.N. JJC0103800 and after

1шт.

13

194455C2

PLATE

- engine compartment, prior to P.I.N. JJC0103800

1шт.

13

1979827C2

PLATE

DECK - engine compartment, P.I.N. JJC0103800 and after

1шт.

14

1977155C2

DOOR

- service deck

1шт.

18

188377C1

ANGLE

- shield stiffener, upper left-hand

1шт.

19

193154C3

SUPPORT

- rear upper left-hand trim, prior to P.I.N. JJC0102445

1шт.

19

1347060C2

SUPPORT

- rear upper left-hand, P.I.N. JJC0102445 and after

1шт.

20

1302703C2

SHEET ASSY.

PLATE - rotor cover to service deck

1шт.

21

195356C1

SUPPORT

- left-hand rear, upper shield, prior to P.I.N. JJC0102445

1шт.

21

1330481C2

SUPPORT

- LH Rear, Upper shield, P.I.N. JJC0102445 and after

1шт.

22

1338071C4

SUPPORT

- door and hood

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

115шт.

24

194477C2

HINGE

- rotor cover door, front

1шт.

25

194478C1

ROD

- rotor door hinge

1шт.

26

186197C93

TRAP DOOR

DOOR - engine and rotor drive cover

1шт.

27

160638C1

HANDLE

- door

1шт.

28

1302413C1

PROP

LINK - front, door hold up

1шт.

29

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch

1шт.

30

1329773C4

SUPPORT ASSY.

SUPPORT - top cover, rear

1шт.

31

1979873C2

SUPPORT

- air cleaner

1шт.

33

186194C93

SUPPORT

- engine, left-hand rear, prior to P.I.N. JJC0102445

1шт.

33

1347130C2

SHEET

SUPPORT - engine, left-hand rear, P.I.N. JJC0102445 and after

1шт.

38

186695C1

HINGE

- door, separator

1шт.
