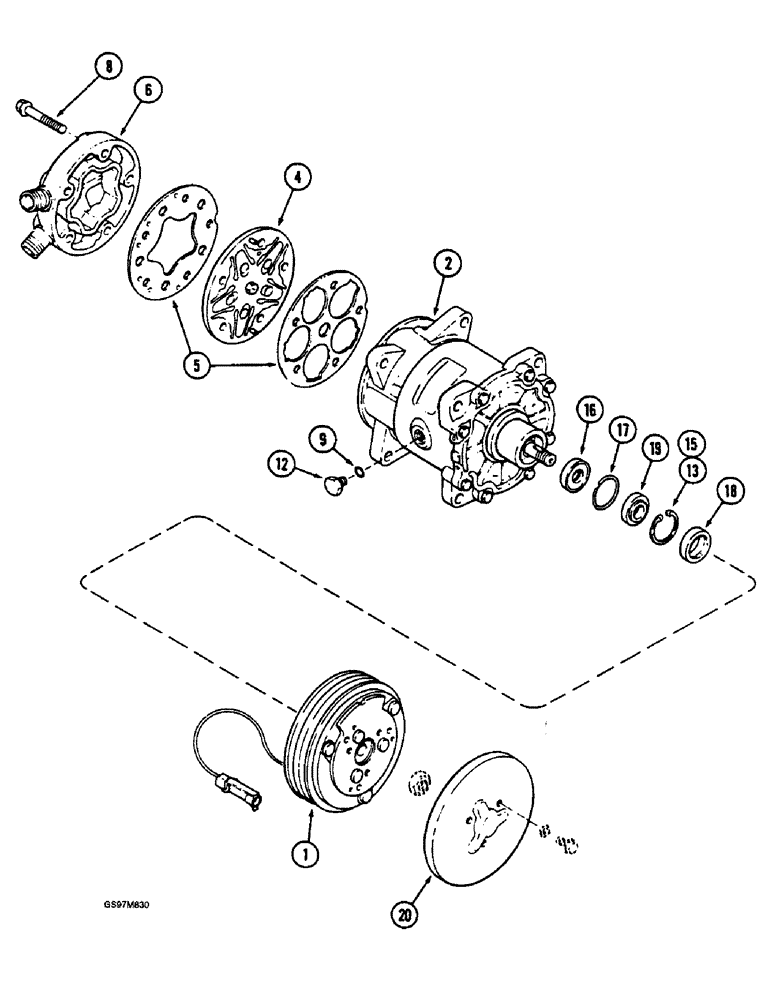

Запчасти Case IH 1660 (9G-62) - HEATER AND AIR CONDITIONER SYSTEM, COMPRESSOR (10) - CAB & AIR CONDITIONING

1977959C1

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, Includes: Ref. 1 - 20

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

1660 CASE IH AXIAL-FLOW COMBINE (S/N JJC0038346 & AFTER) (NORTH AMERICA), COMPRESSOR ASSEMBLY (1/86-12/92)

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

1

1981779C1

CLUTCH ASSEMBLY

CLUTCH - compressor, 152 mm (6 inch)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor, order compressor assembly 1977959C1

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - compressor valve, order compressor assembly 1977959C1

1шт.

5

A49668

GASKET KIT

KIT - gasket, valve plate, set of two

1шт.

6

1958959C1

COVER

HEAD - cylinder

1шт.

8

A49669

SCREW,Cylinder

BOLT - hex flange, special

5шт.

9

A49666

O-RING

O-RING - rubber

3шт.

12

A49667

PLUG

PLUG - hex

1шт.

13

A49664

CIRCLIP

RING - snap, seal seat

1шт.

A49665

SEAL KIT

KIT - seal, Includes: Ref. 15 - 19

1шт.

15

A49664

CIRCLIP

RING - snap, seal seat

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - shaft, order kit A49665

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - housing, order kit A49665

1шт.

18

NSS

NOT SOLD SEPARAT

RING - felt, order kit A49665

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - seal, shaft, order kit A49665

1шт.

20

1981776C1

COVER

COVER - dust, clutch, used with 133 mm (5-1/4 inch) clutch

1шт.

20

1958961C1

COVER

COVER - dust, clutch, used with 152 mm (6 inch) clutch

1шт.
