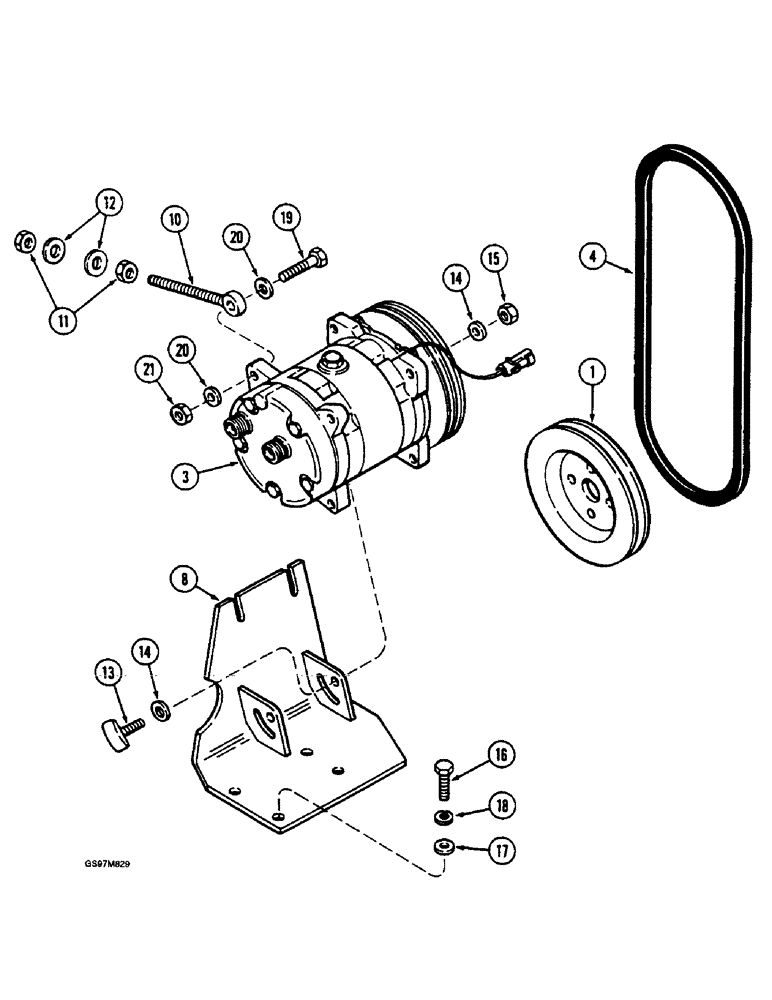

Запчасти Case IH 1660 (9G-60) - HEATER AND AIR CONDITIONER SYSTEM, COMPRESSOR MOUNTING (10) - CAB & AIR CONDITIONING

1

A189155

PULLEY

PULLEY - compressor drive, prior to P.I.N. JJC0102001

1шт.

1

84757C1

PULLEY

PULLEY - compressor drive, P.I.N. JJC0102001 and after

1шт.

3

1977959C1

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list Figure 9G-62

1шт.

3

1977959C1R

REMAN-A/C COMPRESSOR

1660 CASE IH AXIAL-FLOW COMBINE (S/N JJC0038346 & AFTER) (NORTH AMERICA), COMPRESSOR ASSEMBLY (1/86-12/92)

1шт.

3

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

4

396829R1

V-BELT,0.50" W x 44.00" L

Compressor drive

1шт.

8

1979296C1

SUPPORT ASSY.

SUPPORT - compressor mounting

1шт.

10

1979298C1

BOLT (SPREADER),3/8" - 16 x 117mm

BOLT - eye

2шт.

11

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

4шт.

12

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

WASHER - flat, 13/32 x 1 x 7/64"

4шт.

13

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

BOLT - flat raised head, special

2шт.

14

495-81129

WASHER,13/32" x 3/4" x .120"

WASHER - flat, 13/32 x 3/4 x 7/64 inch

2шт.

15

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

16

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT, , Full Thd Hex, M10 x 30, 8.8

4шт.

17

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

WASHER - flat, 11 x 21 x 2.5 mm, hardened

4шт.

18

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

4шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch

2шт.

20

495-81129

WASHER,13/32" x 3/4" x .120"

WASHER - flat, 13/32 x 3/4 x 7/64 inch

2шт.

21

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.
