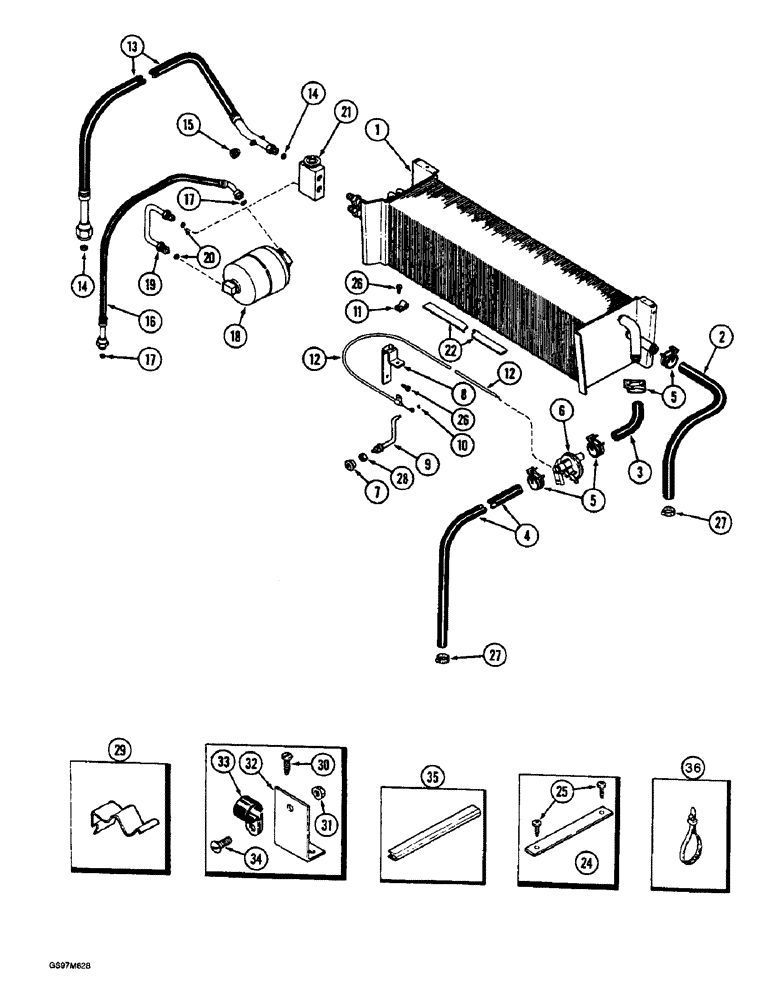

Запчасти Case IH 1660 (9G-58) - HEATER AND AIR CONDITONER SYSTEM, CAB CONNECTIONS (10) - CAB & AIR CONDITIONING

1

1974632C3

EVAPORATOR

CORE ASSEMBLY - evaporator, parts list Figure 9G-52

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - heater to chassis junction, 3302 mm (130 inch) long, cut from bulk hose 97252CX below

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater to valve, return, 127 mm (5 inch) long, cut from bulk hose 97252CX below

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to valve to chassis junction, return, 2921 mm (115 inch) long, cut from bulk hose 97252CX below

1шт.

5

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

4шт.

6

3234102R92

VALVE

- heater control, prior to P.I.N. JJC0039510

1шт.

6

1331087C1

HEATER VALVE

VALVE - heater control, P.I.N. JJC0039510 and after

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1989808C1

SUPPORT

- cable, heater valve control

1шт.

9

1989809C1

ARM

LEVER - heater control

1шт.

10

100-3325

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

2шт.

11

1283334C1

CLIP

- mounting, heater cable, if used

1шт.

12

123855A1

CONTROL

CABLE - control, heater valve (Replaces cable 1989810C1)

1шт.

13

1276164C1

HOSE

ASSEMBLY - evaporator discharge, 2700 mm (106 inch) long, Includes: Ref. 14 & 15

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

16

1276163C3

HOSE

ASSEMBLY - reciever-drier to cab, 3000 mm (118 inch) long, Includes: Ref. 17

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

18

REF

INSTRUCTION

RECEIVER-DRIER - See Figure 9G-52

1шт.

19

1250438C1

TUBE ASSY.

TUBE ASSEMBLY - receiver-drier, Includes: Ref. 20

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

1990756C2

VALVE

- expansion, See Figure 9G-52 (Replaces valve 98370C3)

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - insulation, 2438 mm (96 inch) long, cut from bulk stock 118468C1 below

1шт.

24

1321363C2

STRAP

- retaining, hose

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

3шт.

27

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

28

109311H

JAM NUT

- hex jam, 7/16-28 NF, heater control arm

1шт.

29

3233746R1

CLIP

- cable, prior to P.I.N. JJC0039510

1шт.

29

1954626C1

SPRING CLIP

CLIP - retaining, P.I.N. JJC0039510 and after

1шт.

30

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

31

231-5146

FLANGE NUT,3/8"-16

1шт.

32

98158C1

BRACKET

- heater valve support

1шт.

33

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

34

477-73808

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1/2"

- serrated, slotted truss head, 3/8 NC x 1/2 inch (Replaces screw 116494C1)

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - hose, 76 mm (3 inch) long, cut from bulk trim 1330108CX below

1шт.

36

306132C1

CABLE TIE,14.5" L

STRAP - tie, 356 mm (14 inch) long

1шт.

97252CX

HOSE

- bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long (Replaces hoses 1255859C2 and 117724C1)

1шт.

118468C1

TAPE

- bulk, 9144 mm (360 inch) long roll

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.
