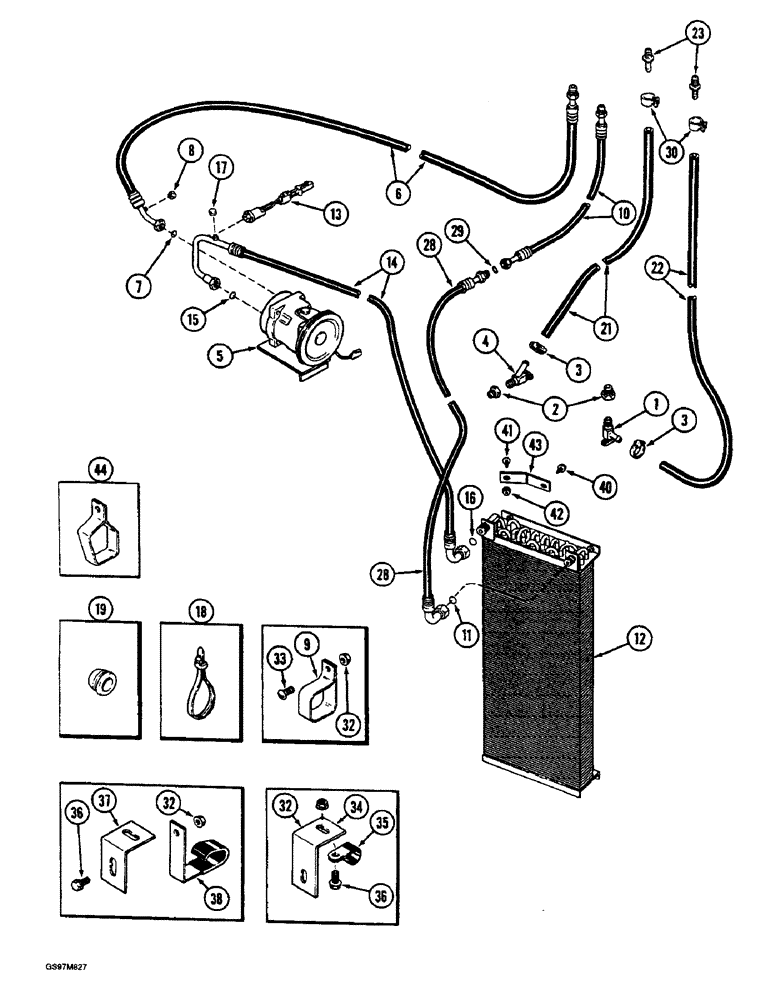

Запчасти Case IH 1660 (9G-56) - HEATER AND AIR CONDITIONER SYSTEM, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - shutoff

1шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

REDUCER, , to 3/8" 1/2"-14 NPTF x 3/8"-18 Fem NPTF

2шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

2шт.

4

301803R1

SHUT-OFF VALVE

VALVE - heater, 45 degree (Replaces valve 941980R91)

1шт.

5

1977959C1

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioner, parts list Figure 9G-62

1шт.

5

1977959C1R

REMAN-A/C COMPRESSOR

1660 CASE IH AXIAL-FLOW COMBINE (S/N JJC0038346 & AFTER) (NORTH AMERICA), COMPRESSOR ASSEMBLY (1/86-12/92)

1шт.

5

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

6

98042C2

HOSE ASSY.

HOSE ASSEMBLY - compressor to cab, 4750 mm (187 inch) long, Includes: Ref. 7 & 8

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, -015, 70 Duro, .551" ID x .070" Thk

1шт.

8

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

9

154695C2

CLAMP

CLAMP - hose, heater only

1шт.

9

1301387C2

CLIP

CLAMP - square, 2 inch ID, heater and air conditioner

1шт.

10

1321292C4

HOSE

HOSE ASSEMBLY - condenser to cab, 4743 mm (187 inch) long, Includes: Ref. 11

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

O-RING, -011, 70 Duro, .301" ID x .070" Thk

1шт.

12

84581C2

CONDENSER

CONDENSER - air conditioning

1шт.

13

234921A1

SENSOR

SWITCH - high pressure (Replaces switch 92038C1)

1шт.

14

98043C2

HOSE ASSY.

HOSE ASSEMBLY - compressor to condenser, 1800 mm (71 inch) long, Includes: Ref. 15 - 17

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, -015, 70 Duro, .551" ID x .070" Thk

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

17

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

2шт.

18

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - tie, 356 mm (14 inch) long

1шт.

18

702093C1

CABLE TIE

CABLE STRAP STRAP - tie

1шт.

19

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - hose, 5/8 inch ID

3шт.

19

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - hose, 3/4 inch ID

3шт.

19

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - heater hose, 7/8 inch ID

2шт.

19

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - hose, 1 inch ID

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, 6477 mm (255 inch) long, cut from bulk hose 97252CX below

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 9093 mm (358 inch) long, cut from bulk hose 97252CX below

1шт.

23

1301342C1

FITTING

ADAPTER - straight, special

2шт.

28

98045C3

HOSE

HOSE ASSEMBLY - condenser to cab, 1560 mm (62 inch) long, Includes: Ref. 29

1шт.

29

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

O-RING, -011, 70 Duro, .301" ID x .070" Thk

1шт.

30

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

SCREW - serrated slotted truss head, 5/16 NC x 3/4"

1шт.

34

194756C2

ANGLE

ANGLE - front

1шт.

35

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

CLAMP, , P-type, closed 1 1/2", Insul, 3/8" Bolt

1шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

BOLT - hex serrated flange, 5/16 NC x 3/4 inch

2шт.

37

1301560C1

SUPPORT

BRACKET - mounting, rear

1шт.

38

1324905C1

CLIP

CLIP - air conditioner, Serial Range: hoses-condenser

1шт.

40

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

41

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

SCREW - serrated slotted truss head, 5/16 NC x 3/4"

2шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

43

1324915C2

SUPPORT

BRACKET - condenser support

2шт.

44

1347292C2

CLAMP

CLAMP - hose, heater and air conditioner

1шт.

97252CX

HOSE

HOSE - bulk, 16 (5/8) x 25(1) x 15240 mm (600 inch) long

1шт.
