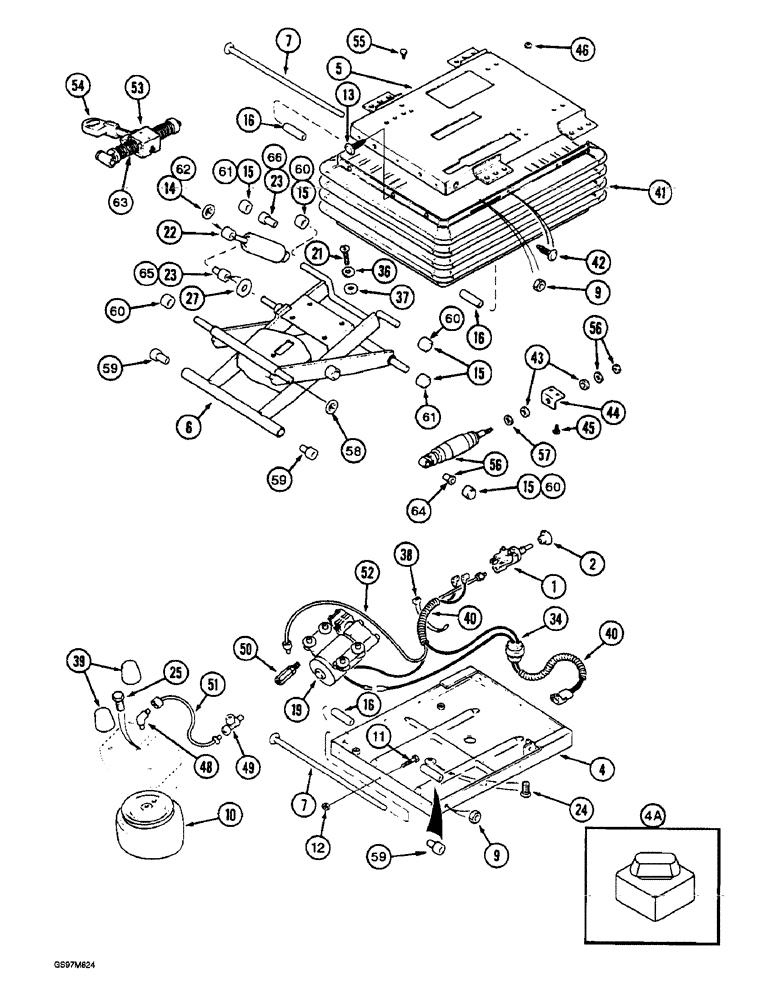

Запчасти Case IH 1660 (9G-50) - SEAT, SEARS, AIR SUSPENSION, P.I.N. JJC0041750 AND AFTER (CONTD) (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

SEAT ASSEMBLY - operators, Includes: Ref. 1 - 58 and 1 - 28 on 9G-48

1шт.

1990648C4

PACKAGE

KIT - suspension service, also order ground strap kit 291280A1, Includes: Ref. 1 - 57

1шт.

1

1981852C3

SWITCH

ASSEMBLY - air control, Includes: Ref. 2

1шт.

2

1987186C1

BUTTON

KNOB - switch

1шт.

4

226560A1

HOUSING

- lower, also order kit 132872A1 and bumper A45054 (Replaces housing 1981834C1)

1шт.

4a

A45054

BUMPER,Neoprene

- seat

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

5

241189R1

HOUSING - upper, suspension (Replaces housing 1990642C1)

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

6

1990643C1

FRAME ASSY

ARM - scissor, suspension

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

7

A49529

SHAFT

- bushing tube

2шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

10

1981842C1

SPRING

- air, order kit 197793A1

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

132872A1

KIT

- boot pin, package of 23 retainers and 3 dome nuts, Includes: Ref. 11 - 13

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

11

NSS

NOT SOLD SEPARAT

FASTENER - christmas, order kit

20шт.

12

NSS

NOT SOLD SEPARAT

NUT - acorn, order kit

3шт.

13

NSS

NOT SOLD SEPARAT

CLIP - retaining, order kit

3шт.

14

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

1990644C1

PACKAGE

KIT - bearing, no longer available, order kit 180594A3 Figure 9G-51B, Includes: Ref. 15 & 16

1шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - suspension, order kit 1990644C1

4шт.

16

NSS

NOT SOLD SEPARAT

TUBE - bearing, order kit 1990644C1

4шт.

19

1999947C4

COMPRESSOR

ASSEMBLY - air (Replaces compressor assembly 1981843C1), Includes: valve listed below

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, order compressor assembly

1шт.

21

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan head cross recess, No. 8-32 x 3/8"

4шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

1344250C2

KIT

- shock absorber, Includes: Ref. 22 & 23

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

22

NSS

NOT SOLD SEPARAT

ABSORBER - shock, seat, order kit 1344250C2

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - shock absorber, order kit 1344250C2

2шт.

24

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat Phillips, 3/8 NC x 3/4"

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

25

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

27

A45519

WASHER

- flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch (Replaces washer A49678)

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

230-4715

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

34

134237A2

HARNESS

- wire (Replaces harness 1981848C1)

1шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

36

495-31022

WASHER,#10

4шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

37

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Used with seat assy 1990653C2 5/16"

4шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

39

1981849C2

SHOCK ABSORBER

BUMPER - rubber, order kit 180593A1

2шт.

This part is not included in seat assembly P/N 1990654C2.

1шт.

40

179026A1

TUBE

GUARD - corrugated, 9.5 (3/8) ID x 689 mm (27-1/8 inch) long (Replaces guard 1343833C1)

2шт.

41

1990647C2

KIT

- boot, suspension

1шт.

42

132872A1

KIT

- boot pins (Replaces pin 1343837C1)

1шт.

43

A49679

BUSHING

- rubber

2шт.

44

1981845C1

ANGLE

- mounting

1шт.

45

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

46

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

1990548C4

KIT

- air line and fittings, Includes: Ref. 48 - 52

1шт.

48

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/8 PT x 5/32 inch tube, order kit

1шт.

49

NSS

NOT SOLD SEPARAT

TEE - 1/8 PT x 1/4 inch tube, order kit

1шт.

50

NSS

NOT SOLD SEPARAT

ADAPTER - straight, 1/8 PT x 1/4 inch tube, order kit

1шт.

51

NSS

NOT SOLD SEPARAT

TUBE - nylon, 6 (1/4) OD x 241 mm (9-1/2 inch) long

1шт.

52

NSS

NOT SOLD SEPARAT

TUBE - nylon, 6 (1/4) OD x 711 mm (28 inch) long

1шт.

53

1990645C1

LATCH

ASSEMBLY - isolator, fore and aft, Includes: Ref. 54

1шт.

54

NSS

NOT SOLD SEPARAT

KNOB - isolator control, fore and aft, order latch assembly

1шт.

55

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

2шт.

56

1990646C1

SHOCK ABSORBER

KIT - shock absorber, includes items 43, 44 and 56, no longer available, order kit 227546A1 below

1шт.

227546A1

KIT

- shock absorber, includes items 22, 23, 43, 45, 46, 57 and 58

1шт.

57

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

58

NSS

NOT SOLD SEPARAT

SPACER - shock, order seat assembly

1шт.

180594A3

KIT

KIT - roller and bearings, Includes: Ref. 59 - 67

1шт.

59

NSS

NOT SOLD SEPARAT

BUSHING - shaft

4шт.

60

NSS

NOT SOLD SEPARAT

ROLLER - bearing

4шт.

61

NSS

NOT SOLD SEPARAT

ROLLER - tube

1шт.

62

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

63

NSS

NOT SOLD SEPARAT

BEARING - isolator tube

1шт.

64

NSS

NOT SOLD SEPARAT

BEARING - shock

1шт.

65

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

66

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

67

NSS

NOT SOLD SEPARAT

BEARING - patch bar, not used, not shown

1шт.

291280A1

KIT

- ground strap, includes strap, wire ties and hardware

1шт.

Order instruction sheet Bur 7-54270 to install ground strap kit.

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, includes items 2 and 54

1шт.

197793A1

SPRING

KIT - air spring

1шт.

180593A1

KIT

- bumper

1шт.
