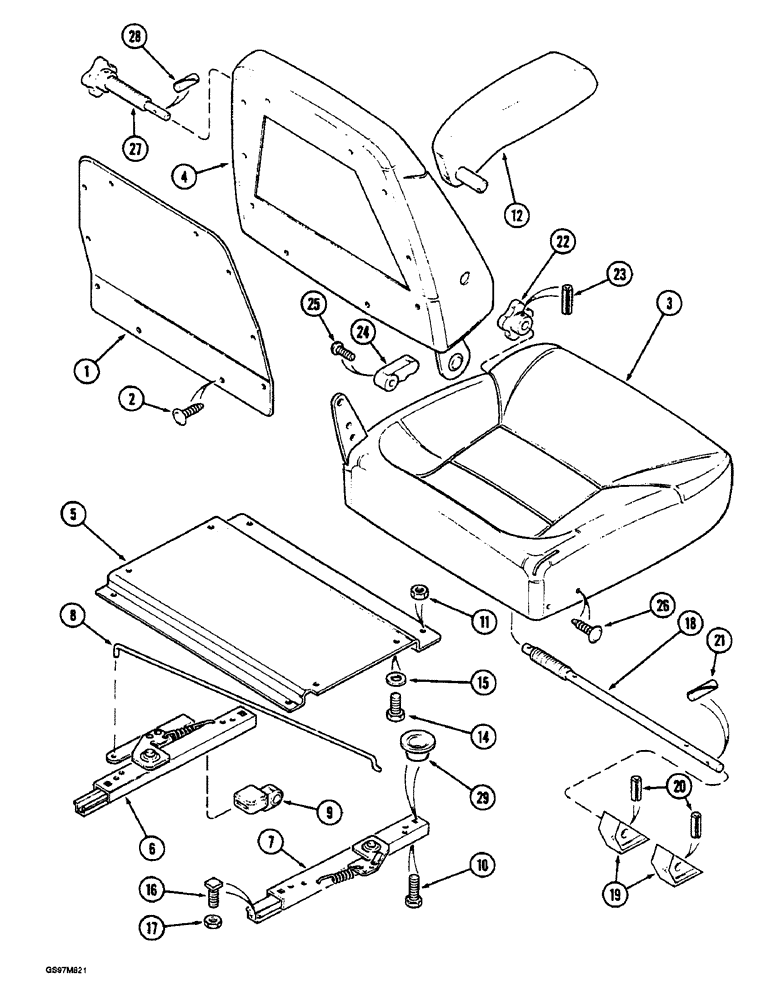

Запчасти Case IH 1660 (9G-44) - SEAT, SEARS, AIR SUSPENSION, PRIOR TO P.I.N. JJC0041750 (10) - CAB & AIR CONDITIONING

1340184C1

SEAT

ASSEMBLY - operators, air suspension, also order ground strap kit 291280A1, Includes: Ref. 1 - 29 and 2 - 31 on Figure 9G-46

1шт.

1

1981820C2

PACKAGE, REPAIR

KIT - back cover service, Includes: Ref. 2

1шт.

2

1974722C1

CLIP,ELECTRICAL

RETAINER - cover, no longer available, order kit 1999693C1

10шт.

3

1981815C1

PACKAGE, REPAIR

KIT - seat pad, Includes: Ref. 5 - 11

1шт.

4

1981816C2

PACKAGE,SERVICE

KIT - backrest pad, Includes: Ref. 5 - 11

1шт.

1981817C1

PACKAGE, REPAIR

KIT - slide adapter, no longer available, order plate 1999781C1, item 11A, Includes: Ref. 5 - 11

1шт.

5

1981868C1

SEAT SUPPORT

PLATE ASSEMBLY - slide adapter, order plate 1999781C1, item 11A, Includes: Ref. 6 - 11

1шт.

6

1981822C1

SLIDE

- seat, left-hand, with handle

1шт.

7

1981823C1

SLIDE

- seat, right-hand

1шт.

8

1981825C1

ELECTRICAL WIRE

WIRE - slide

1шт.

9

1981829C1

WINDOW STAY

KNOB - fore/aft, order kit 1999691C1

1шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

11

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

11a

1999781C1

SEAT SUPPORT

PLATE - seat adapter, narrow, not shown

1шт.

12

1981818C1

ARMREST

KIT - armrest, left-hand

1шт.

14

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

- square head, 5/16 NC x 3/4 inch, grade 2

4шт.

17

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

1981856C1

PACKAGE, REPAIR

KIT - seat, order kit 243700A1, Includes: Ref. 18 - 28

1шт.

1343826C2

SHAFT ASSY.

SHAFT ASSEMBLY - tilt, Includes: Ref. 18 - 20

1шт.

18

1343827C1

CAMSHAFT

- seat tilt

1шт.

19

1343828C1

CAM

- seat tilt, order shaft assembly 1343826C2

2шт.

20

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

2шт.

21

38-21020

PIN,5/32" x 1 1/4", Coiled

1шт.

22

1981826C1

KNOB

- seat tilt, order kit 1999691C1

1шт.

23

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

24

1974711C1

LEVER

KNOB - backrest tilt

1шт.

25

30299R1

SCREW,Cross Oval Hd, M6 x 12

- machine, 6 x 12 mm

1шт.

26

1974722C1

CLIP,ELECTRICAL

RETAINER - cover, no longer available, order kit 1999693C1

14шт.

27

1981828C1

BUTTON

KNOB - control, lumbar, order kit 1999691C1

1шт.

28

138-303

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

1шт.

29

S115782

BUSHING

SPACER - slide cup

4шт.

1999693C1

KIT

- christmas tree clip, includes 14 clips

1шт.

1999691C1

PACKAGE,SERVICE

KIT - knob, seat top

1шт.

243700A1

SPARE PART SET

KIT - seat top, does not include armrest

1шт.
