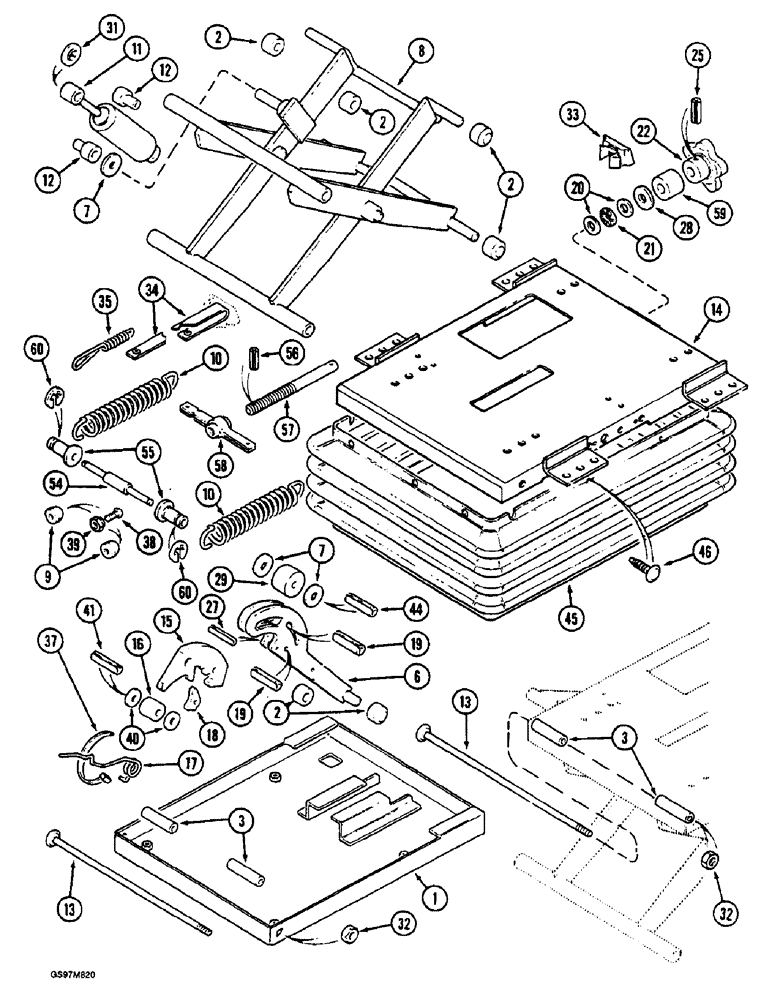

Запчасти Case IH 1660 (9G-42) - SEAT, SEARS, MECHANICAL SUSPENSION, P.I.N. JJC0041750 AND AFTER (CONTD) (10) - CAB & AIR CONDITIONING
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
SEAT ASSEMBLY - operators, mechanical, Includes: Ref. 1 - 35 and 1 - 28 on 9G-40
1шт.
241190A1
PACKAGE
KIT - seat suspension (Replaces kit 1981819C1), Includes: Ref. 1 - 35
1шт.
1
1981787C1
CASE
HOUSING - lower
1шт.
1344249C1
KIT
KIT - roller tube and bearing, Includes: Ref. 2 & 3
1шт.
2
NSS
NOT SOLD SEPARAT
ROLLER - suspension, order kit 1344249C1
6шт.
3
NSS
NOT SOLD SEPARAT
BEARING - tube, order kit 1344249C1
4шт.
6
1981792C1
ARM
- mounting
1шт.
7
A45519
WASHER
- flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch, armrest
5шт.
8
1981789C1
DIPPER
ARM - suspension
1шт.
9
1981793C1
BUMPER
- seat
2шт.
10
1981794C1
SPRING
- external
2шт.
1344250C2
KIT
- shock absorber, Includes: Ref. 11 & 12
1шт.
11
NSS
NOT SOLD SEPARAT
ABSORBER - shock, order kit 1344250C2
1шт.
12
NSS
NOT SOLD SEPARAT
BEARING - shock absorber, order kit 1344250C2
2шт.
13
A49529
SHAFT
- bushing tube
2шт.
14
241192A1
HOUSING
- upper (Replaces housing 1981821C1)
1шт.
15
1981798C1
CAM
- low profile
1шт.
16
1981799C1
BEARING, NEEDLE
BEARING - cam follower, order kit 123967A1
1шт.
17
1981800C1
SPRING, LEAF
SPRING - height adjustment, order kit 123966A1
1шт.
18
1981801C1
LATCH
- seat, order kit 119001A1
1шт.
19
138-172
LOCK PIN,3/8" x 1 1/4", Slotted
PIN, 3/8" x 1 1/4", Slotted
2шт.
138-110
LOCK PIN,7/32" x 3/4", Slotted
PIN, LOCK, 7/32" x 3/4", Slotted
1шт.
20
1981802C1
WASHER, THRUST
BEARING - thrust, order kit 1987116C2
2шт.
21
F13537
THRUST BEARING
BEARING - thrust
1шт.
22
118578C1
BUTTON
KNOB - weight adjusting, includes handle and decals, which are not serviced separately, order kit 123969A1
1шт.
25
138-155
LOCK PIN,5/16" x 1 1/4", Slotted
PIN, 5/16" x 1 1/4", Slotted
1шт.
27
38-21010
PIN,3.96mm OD x 15.88mm L, Coiled
1шт.
28
1974732C1
WASHER
- flat, 25/64 x 1-1/8 x 1/8 inch
1шт.
29
1981796C1
BEARING, NEEDLE
BEARING - cam follower, order kit 123967A1
1шт.
31
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, Push, 1/2"
2шт.
32
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8 inch NC
2шт.
33
1981807C1
GUIDE
- weight adjustment
1шт.
34
1981808C1
TAPE
- adjustment, weight, order kit 1999901C1
1шт.
35
1981809C1
SPRING
- suspension, weight, order kit 1999901C1
1шт.
123967A1
PACKAGE
KIT - cam follower, Includes: Ref. 37 - 60
1шт.
123966A1
PACKAGE
KIT - spring, height adjusting, Includes: Ref. 37 - 60
1шт.
123969A1
SEAT ACCESSORY
Kit - Knob and shaft assy, Incl Ref 37 - 60
1шт.
119001A1
ARMREST ASSY.
KIT - arm, cam, Includes: Ref. 37 - 60
1шт.
1999901C1
KIT
- spring, and weight adjustment, Includes: Ref. 37 - 60
1шт.
37
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
38
440-11010
SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"
- machine, pan Phillips, No. 10 NC x 5/8 inch
2шт.
39
230-42409
NUT,#10-24, GA
NUT - hex, self-locking, No. 10 NC
2шт.
40
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
2шт.
41
438-11214
LOCK PIN,4.76mm OD x 22.23mm L, Slotted
Pin, 3/16" x 7/8", Slotted
1шт.
44
138-2051
PIN,1/4" x 3/4", Coiled
No longer available 1/4" x 3/4", Coiled
1шт.
45
1990647C2
KIT
- boot, suspension, suspension, Includes: Ref. 46
1шт.
46
132872A1
KIT
- boot pins (Replaces pin 1343837C1)
1шт.
1987116C2
PACKAGE
KIT - weight adjustment, Includes: Ref. 54 - 60
1шт.
54
NSS
NOT SOLD SEPARAT
SHAFT - spring, order kit 1987116C2
1шт.
55
NSS
NOT SOLD SEPARAT
BUSHING - spring, order kit 1987116C2
2шт.
56
NSS
NOT SOLD SEPARAT
PIN - roll, 5/32 x 5/8 inch, order kit 1987116C2
1шт.
57
NSS
NOT SOLD SEPARAT
SHAFT - weight adjustment, order kit 1987116C2
1шт.
58
NSS
NOT SOLD SEPARAT
BAR - weight adjustment, order kit 1987116C2
1шт.
59
NSS
NOT SOLD SEPARAT
SPACER - weight adjusting, order kit 1987116C2
1шт.
60
NSS
NOT SOLD SEPARAT
RING - retaining, order kit 1987116C2
2шт.
Выбрано товаров: 55
